- Page 1 Installation, Mounting and Main- tenance Aquaris Silent Ferdinand Schad KG Steigstraße 25-27 D-78600 Kolbingen Telephone +49 (0) 74 63 - 980 - 0 Fax +49 (0) 74 63 - 980 - 200 info@schako.de www.schako.de...
-
Page 2: Table Of Contents
Installation, Mounting and Maintenance Aquaris Silent Contents Safety instructions ..........................3 General information ................................... 3 Warranty ............................3 Recycling ............................3 General information ..........................3 Identification of the delivered model ............................3 Installation and commissioning ........................ 5 Operating conditions .................................. 5 Reception of materials ................................ -
Page 3: Safety Instructions
- Do not change any control or safety elements without prior approval by the manufacturer or the local sales office. SCHAKO cannot be held liable for damage resulting from: - Improper installation caused by ignoring the instructions giv- en in this manual - Non-observance of the operating conditions of the device. - Page 4 Installation, Mounting and Maintenance Aquaris Silent Technical data max 385 380 530 520 750 730 835 810 1030 1010 1135 1110 1435 1395 1620 1560 1670 1625 1825 1770 with 270 265 385 380 485 480 570 555 850 840 970 955 1040 1020 1275 1245 1145 1125 1350 1325...
-
Page 5: Installation And Commissioning
To prevent possible damage during SCHAKO cannot be held liable for damage to the transport, the devices will be delivered ex works on pallets (that unit caused by improper handling or handling not correspond to the particular weight and dimensions). -
Page 6: Installation Site

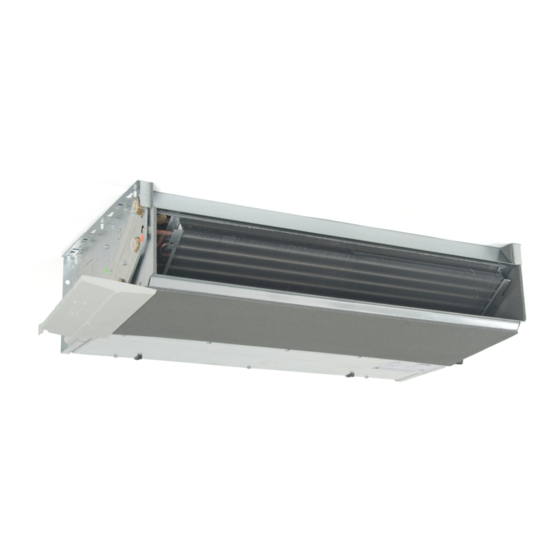

In any form of horizontal installation, the device is mounted at an inclination of 10 - 15 mm to ensure draining of the water of The Aquaris Silent units are available as horizontal model (for in- condensation. stallation of the device unit in false ceilings and floors or free- standing with device casing) and as vertical model (for installa- tion on walls, in niches, with or without device casing). -
Page 7: Mounting And Connections
For installation of the device, use adequate tools, devices and materials and observe the safety reg- ulations and other current regulations. SCHAKO cannot be held liable for damage result- ing from faulty installation or the use of unsuitable fastening devices. -
Page 8: Hydraulic Connections
Installation, Mounting and Maintenance Aquaris Silent Hydraulic connections Electric connections Upon customer request, the water connection to the registers Prior to the electrical installation, you have to make sure that the can be established either on the left-hand or right-hand side of rated mains voltage is 230 V, 50/60 Hz and is single-phase. - Page 9 Installation, Mounting and Maintenance Aquaris Silent ON-SITE Wiring thermo contact, overload protection, operational and fault message (SP series) Room con- troller White (*) White (*) Blue max. Brown Yellow Blue Black medium Grey Brown Purple Green min. Orange Yellow / Green...
- Page 10 Installation, Mounting and Maintenance Aquaris Silent ON-SITE Circuit diagram (with thermo contact) 1 speed switch + 2 or more fan coils (SP series) Speed switch White (*) White (*) Blue max. Brown Yellow Black medium Grey Purple Green min. Orange...
- Page 11 Yellow / Green Brown Blue 10 V Blue Black SCHAKO cannot be held liable for faulty electrical connections or if the power supply cable is re- placed with a different cable having different char- acteristics. Z11/01 - 11 Version: 05.04.2013 Construction subject to change.
-
Page 12: Mounting Accessories
= black If the main water drain is above the level of the Aquaris Silent drain, such a pump has to be mounted. The condensate pump prevents a water overflow of the Aquaris Silent. - Page 13 T1: Temperature control for autom. restart T2: Safety temperature control, recommended for manual restart R: Electric register Not included in the SCHAKO scope of delivery: M: Pushbutton for manual restart N: Restart from the control unit RA/RAB/RA1: Electrical transmitter for control, monitoring, switching on Do not fasten or install a foreign device to the con- RA2: "Operation"...
-
Page 14: Mounting The Housing
4. Position the housing and fasten it by means of the fastening hooks. 5. Fasten the housing on both sides of the Aquaris Silent using M6x60 screws. The installer is responsible for the correct mounting. The M6x60 screws are not delivered by Schako. Z11/01 - 14 Version: 05.04.2013... -
Page 15: Checks
Installation, Mounting and Maintenance Aquaris Silent Checks In doing so, the following instructions must be followed: Prior to commissioning, the following items must be checked or - Take out the filter by guaranteed: folding it downward - The air flow through the filters is not impaired by foreign ma-... -
Page 16: Registers
(speed, pressure, temperature, etc.), first chapter "Removing the filters". In contact your local SCHAKO sales partner, in order doing so, make sure that the dust to find out whether the unit can be safely operated is not distributed in the surround- under the changed conditions. -
Page 17: Spare Parts List
Installation, Mounting and Maintenance Aquaris Silent Spare parts list Z11/01 - 17 Version: 05.04.2013 Construction subject to change. No return possible! - Page 18 Installation, Mounting and Maintenance Aquaris Silent Nº Article Model Ref. Nº Article Model Ref. SP 10/11 101969 Condensate pump 102116 SP 20/21 101971 Mounting plate 102117 (all) SP 30/31 101973 90° angle 103893 SP 40/41 101975 Hose 103894 SP 50/51...
-
Page 19: Troubleshooting
Installation, Mounting and Maintenance Aquaris Silent Troubleshooting Problem Possible cause Solution Power supply missing Establish power supply The unit is Residual current device switch was tripped Please inform the customer service not working Motorised fan clogged by foreign material Remove the foreign material... -
Page 20: Declaration Of Conformity
[FOR MARKING] Declaration of Conformity FERDINAND SCHAD KG WITH THE COMPANY HEAD OFFICE IN Steigstraße 25-27 D-78600 Kolbingen (GERMANY) HEREBY DECLARES THAT THE DESIGN AND CONSTRUCTION OF THE AQUARIS SILENT: Model: SP-EC Type: 10-51 Register type: 3 - 4 Position:...
