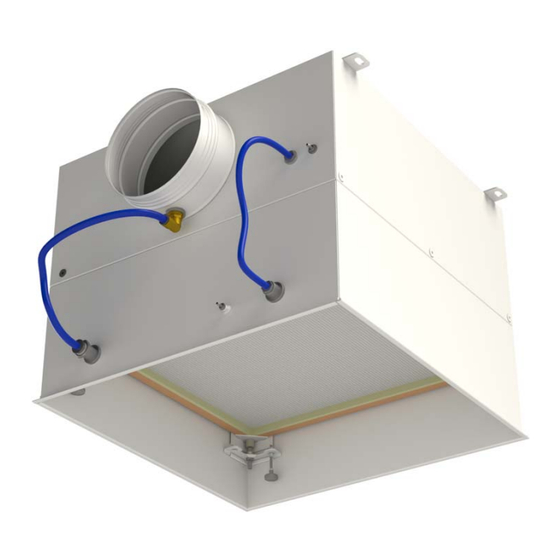

- Page 1 Particle Filter Box SCHAKO KG Steigstraße 25-27 D-78600 Kolbingen Telephone +49 (0) 74 63 - 980 - 0 Fax +49 (0) 74 63 - 980 - 200 info@schako.de schako.com...
-
Page 2: Table Of Contents
Technical data of actuators ..............................21 Legend ............................21 Order code FKU ..........................22 Order code FDQJ ..........................24 Order code FPIL ..........................25 Order code filter for FKU ........................26 Specification texts FKU ........................27 Specification texts diffusers ........................28 Version: 01.03.2023 07/05 - 2 Construction subject to change. -
Page 3: Description
Description Rubber seal on particle filter (for safe sealing) The particle filter box, type FKU for installation of filter cells with rubber seal has been particularly developed for use in clean- without seal leakage monitoring system rooms required by the pharmaceutical, electronic, precision me- chanical and optical industries in hospitals and laboratories. -
Page 4: Construction
Model with an outer diameter of 10 mm. Additionally with aerosol feeding device in the spigot on the outside (-D5). FKU-H-...-M000-... - with horizontal, round connection spig- ot, without shut-off damper Differential pressure transducer (-U1) FKU-H-...-M001-... - with horizontal, round connection spig-... -
Page 5: Fastening
Particle Filter Box Model FKU Fastening Ceiling diffuser selection Ceiling swirl diffuser FDQJ (-41) Magnetic fastening (-MB) - only available for NW 400-650 FDQJ-Q-SR FDQJ-Q-SQ - only available as sheet steel model (-SB) - only available for ceiling diffuser FDQJ-...-SB (standard). -
Page 6: Models And Dimensions
Particle Filter Box Model FKU Models and dimensions Dimensions FKU-H-...-M000-D1-...-P0-... external approx. Mounting bracket with long hole ø 10 x 20 external FKU-H-...-M001-D1-...-P0-... approx. Available sizes Filter dimen- øD FDQJ-Z / FDQJ-A FPIL-A FPIL-Z sions (Supply air / return air) - Page 7 Drawn rotated by 20° Actuator with spring return approx. Drawn rotated by 20° Attention! With the FKU-V model, the actuator cannot be mounted to the shut-off damper! Version: 01.03.2023 07/05 - 7 Construction subject to change. No return possible!
- Page 8 Particle Filter Box Model FKU FKU-V-...-M000-D1-...-P0-... external FKU-V-...-M001-D1-...-P0-... external Available sizes FDQJ-Z / FDQJ-A FPIL-A FPIL-Z (return air) (supply air) (Supply air / return air) 400-650 Version: 01.03.2023 07/05 - 8 Construction subject to change. No return possible!
- Page 9 Particle Filter Box Model FKU FKU-Q-...-D1-P0-... approx. Detail Y Connection flange suitable for Metu systems HM 20 and HM 30 Available sizes FDQJ-Z / FDQJ-A FPIL-A FPIL-Z (Supply air / return (return air) (supply air) air) Version: 01.03.2023 07/05 - 9 Construction subject to change.
- Page 10 Particle Filter Box Model FKU Differential pressure device / aerosol monitoring FKU-...-D4 (at an extra charge) With measuring spigot inside the box, for hose connection with device an outer diameter of 10 mm. Additionally with aerosol feeding applies to models -H and -V device in the spigot of the box inside.
- Page 11 Particle Filter Box Model FKU Differential pressure device / aerosol monitoring FKU-...-D4 (at an extra charge) With measuring spigot inside the box, for hose connection with device an outer diameter of 10 mm. Additionally with aerosol feeding applies to model -Q device in the spigot of the box inside.
-
Page 12: Dimensions Of Accessories
Particle Filter Box Model FKU Tight seal test Accessories - dimensions (at an extra charge) FKU-...-P1 for model -H and -V(at an extra charge) Rubber lip seal (-GD1) Seal leakage monitoring system inside the box (only for particle Detail X filters with U seal). -
Page 13: Ceiling Diffusers
Particle Filter Box Model FKU Ceiling diffusers Fastening Magnetic fastening (-MB), with safety cable The diffusers FDQJ and FPIL are models especially designed for filter boxes. Theses diffusers can only be used with the corre- - Standard for sheet steel model (-SB), available for NW sponding filter boxes. -
Page 14: Ceiling Impulse Diffuser Fpil (-42)
Particle Filter Box Model FKU Ceiling impulse diffuser FPIL (-42) Construction Faceplate - perforated sheet steel (-SB) - painted to the RAL colour 9010 (white) (-9010) - painted to a different RAL colour (-xxxx) - natural colour anodised perforated aluminium (-AL-ELOX) - only available for PIL-...-QV-... -
Page 15: Fastening Methods
Particle Filter Box Model FKU Fastening methods Installation and maintenance Attention: Magnetic fastening (-MB) Please note that the O-rings (seals) of the bulkhead stuffing box may dry out over the months. Once the O-rings have dried out, With safety cable, only available for NW 400-650, only available the hoses can only be inserted, applying higher force. -
Page 16: Installation (Filter Installation Instructions)
Particle Filter Box Model FKU Installation (filter installation Instructions) Installation description Loosen filter clamps (pos. 4) and remove them along with ship- Diffusers with magnetic fastening (-MB) ping brace. Press the particle filter unit (pos. 6) with the sealing NW 400-650 (NW 800 not available) rubber (see page 3) pointing upwards into the filter housing (pos. -
Page 17: Technical Data
Particle Filter Box Model FKU Technical data Pressure loss UDS filter Width x Height x Depth / pressure difference nenn [mm] [m³/h / Pa] FIL-FKU...-1-H13-... FIL-FKU...-1-H14-... 357 x 357 x 75 170/115 170/115 457 x 457 x 75 300/115 300/115... -
Page 18: Pressure Loss Uxs Filter
Particle Filter Box Model FKU Pressure loss UXS filter Width x Height x Depth / pressure difference nenn [mm] [m³/h / Pa] FIL-FKU...-2-H13-... FIL-FKU...-2-H14-... 357 x 357 x 75 170 / 100 170 / 100 457 x 457 x 75... -
Page 19: Pressure Loss Uxa Filter
Particle Filter Box Model FKU Pressure loss UXA filter Width x Height x Depth / pressure difference nenn [mm] [m³/h / Pa] FIL-FKU...-3-H13-... FIL-FKU...-3-H14-... 357 x 357 x 75 190 / 100 190 / 100 457 x 457 x 75... -
Page 20: Circuit Diagram
Particle Filter Box Model FKU Circuit diagram Connection diagram LM24A (-E001)/LM24A-S (-E030) OPEN/CLOSED control 3-point control Attention! 24 V AC 24 V AC - Connection via safety transformer. 24 V DC 24 V DC - Parallel connection of further drives is possible. -
Page 21: Technical Data Of Actuators
Particle Filter Box Model FKU Technical data of actuators LM24A (-E001) / LM24A-S (-E030) (make Belimo) LF230 (-E020) / LF230-S (-E036) (make Belimo) Rated voltage: AC/DC 24 V, 50/60 Hz Rated voltage: AC 230 V, 50/60 Hz Functional range: AC19.2...28.8 V / DC19.2...28.8 V Functional range: AC 198...264 V... -
Page 22: Order Code Fku
FKU-H-41-Z-500-MB-SB-9010-AB0-M000-D1-U0-P1-GD1-KHS-SDS Particle filter box type FKU | horizontal with round spigot | for air diffuser FDQJ | supply air | NW500 | magnetic fastening | sheet steel | painted to RAL9010 | without antibacterial coating | without shut-off damper | with differential pressure / aerosol monitoring... - Page 23 = without tight seal test (standard) M001 = with manually adjustable shut-off damper with cable = with seal leakage test (only possible for particle filter (only available for FKU-H / -V) with U-profile seal -D) E001 = with electrically adjustable shut-off damper, 24 V, 3-...
-
Page 24: Order Code Fdqj
Particle Filter Box Model FKU Order code FDQJ Type Model Blade pattern Air throw Nominal size Material Paint Example FDQJ -500 -9010 Drill pattern reduced Blades Blade colour Air throw pattern Mounting Antibacterial coating -000 L9005 -AB0 Sample FDQJ-Q-SR-Z-500-SB-9010-000-PS-L9005-B-MB-AB0 Ceiling swirl diffuser for filter box type FDQJ I square faceplate I circular blade pattern I supply air | NW500 I sheet steel I painted... -
Page 25: Order Code Fpil
Particle Filter Box Model FKU Order code FPIL Type Air volume Model Air throw Nominal size Example FPIL -500 Material Paint Drill pattern reduced Mounting Antibacterial coating -9010 -000 -AB0 Sample FPIL-N-QV-Z-500-SB-9010-000-VM-AB0 Ceiling impulse diffuser for filter box type FPIL | for normal air volume | square faceplate, drill pattern V (standard) I supply air | NW500... -
Page 26: Order Code Filter For Fku
02 - Filter size FKU400 = Size 357 x 357 x 75 - 07 - Filter test Filter for filter box FKU 400 = checked oil thread test (standard), according to FKU500 = Size 457 x 457 x 75 -... -
Page 27: Specification Texts Fku
Particle Filter Box Model FKU Specification texts FKU Type of air: Particle filter box with safely sealing pressure device and sealing - Supply air (-Z) device for installation of filter cells with rubber seal. With hori- zontal, round connection spigot. With integrated differential... -
Page 28: Specification Texts Diffusers
- Rubber lip seal (-GD1), to RAL 9010 (-L9010, white) or made of aluminium painted - made of special rubber (only available for FKU-H / -V) to a RAL colour which can be freely selected (-Axxxx, subse- quent adjustment of blades not possible). - Page 29 Particle Filter Box Model FKU Ceiling impulse diffuser FPIL (-42) - Faceplate made of: Square ceiling impulse diffuser FPIL-... for normal air volumes, - Sheet steel (-SB) for installation in supply and exhaust air systems in clean - painted to the RAL colour 9010 (white) (-9010)
