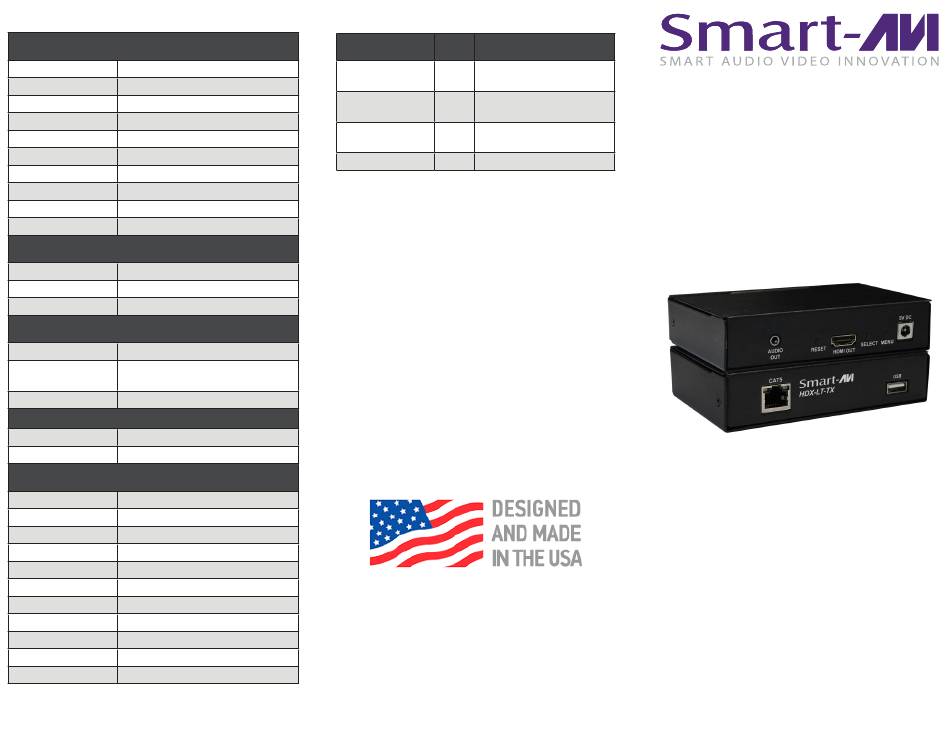

SMART-AVI HDX-LT Quick Start Manual

TECHNICAL SPECIFICATION
VIDEO
Format HDMI 2.0
Video Resolution Up to 3840 x 2160 @ 30 Hz
Video Bandwidth Single-link 340 MHz (10.2 Gbps)
Input Interface (TX) (1) HDMI 19-pin
Output Interface (RX) (1) HDMI 19-pin
Max Output Distance Up to 20 ft
Equalization Automatic
Input TMDS Signal 1.2 Volts [peak-to-peak]
Input DDC Signal 5 Volts [peak-to-peak, TTL]
Data Rate 1.65 Gbps per color
AUDIO
Format Stereo
Input Interface (TX) (1) 3.5mm (Female)
Output Interface (RX) (1) 3.5mm (Female)
USB
Input Interface (TX) (1) USB Type A
(2) USB 1.1 Type A for KM Devices;
Output Interface (RX)
(2) USB 2.0 Type A Transparent
Keyboard and mouse Keyboard and mouse emulation
SYSTEM
Cable Requirements CAT5/5e/6
Maximum Length 100 m (330 ft)
OTHER
Power 100-240 VAC/ 5VDC @ 3A/15W
Dimensions 7.8" W x 1.15" H x 3.65" D
Weight 1 lb (.5 lbs per unit)
Approvals UL, CE, ROHS Compliant
Operating Temp. +32 to +104°F (0 to +40°C)
Operating Humidity 20% to 80% (non condensing)
Storage Temp. -4 to 140°F (-20 to +60°C)
Storage Humidity Up to 95% (No Condensation)
Compliance EMC FCC (Class A), CE (Class A), ICES-003
Compliance RoHS2 (CE)
Support Warranty 1-year
WHAT'S IN THE BOX
PART NO. Q-TY DESCRIPTION
HDMI, USB 2.0, Audio,
HDX-LT-TX 1
CAT5/5e/6 Transmitter
HDMI, USB 2.0, Audio,
HDX-LT-RX 1
CAT5/5e/6 Receiver
PS5VD3A-
2 PS5VD3A Power Supply
WLLMNT
Quick Start Guide 1
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
888.994.7427, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com
HDX-LT
HDMI, USB 2.0 AND AUDIO
KVM CAT5/6 EXTENDER
EXTEND DIGITAL VIDEO
HDMI 4K@30HZ, USB 2.0,
USB KEYBOARD/MOUSE
AND AUDIO
UP TO 100 M (330 FT)
OVER A SINGLE CAT5/6
Quick Start Guide
