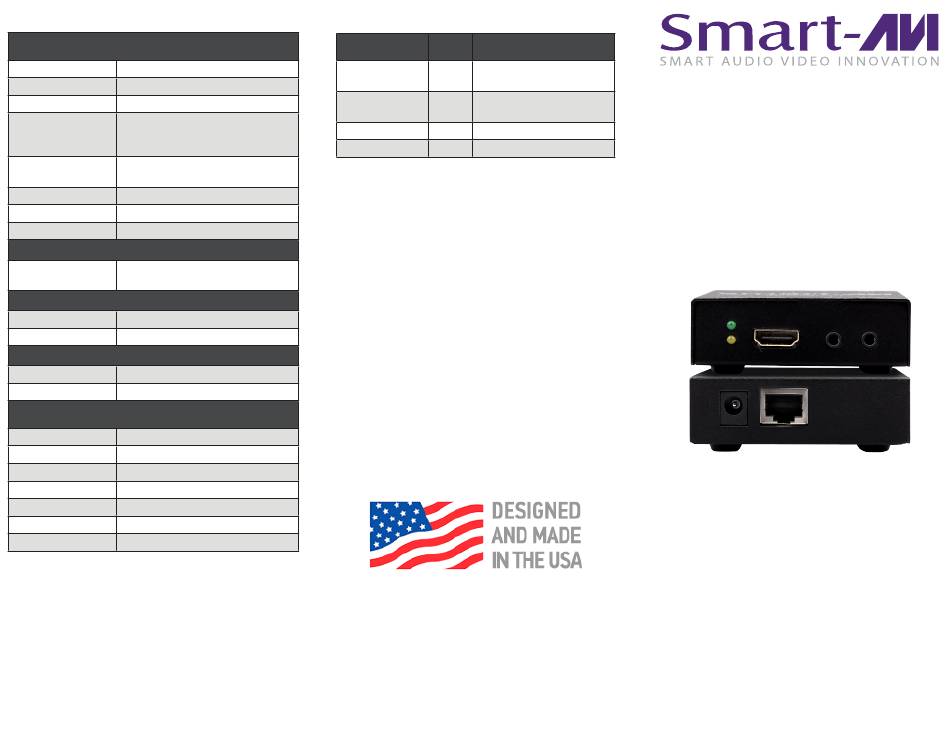

SMART-AVI HDX-LX Quick Start Manual

TECHNICAL SPECIFICATION
VIDEO
Format HDMI Type A 19 pin (female)
Input Interface (1) HDMI 19 pin (female)
Output Interface (1) HDMI 19 pin (female)
800X600, 1024X768 , 1280X1024,
Resolution 1366X768, 1920X1200, 480i,
720p, 1080i, 1080p, 4K and 3D
Deep Color 36/30/24 Bit at 1080p
Color Depth
and 3D
Video Bandwidth 10.2Gbps
Input Video Signal 1.2 Volts P-P
Input DDC Signal 5 Volts(TTL)
AUDIO
Up to PCM 8 channel, Dolby Digital
Format
TrueHD, and DTS-HD Master Audio
IR
Input Interface (1) 3.5mm Jack
Output Interface (1) 3.5mm Jack
SYSTEM
Input Interface (1) RJ45 Jack
Output Interface (1) RJ45 Jack
OTHER
Power PS5VDC2A
Dimensions 0.9" H x 2.9" W x 3.7" D
Weight 0.26 lb
Certificates FCC, CE, RoHS
Operating Temp. 32-104°F (0-40 °C)
Storage Temp. -4-140°F (-20-60 °C)
Humidity Up to 85% (non-condensing)
WHAT'S IN THE BOX
PART NO. Q-TY DESCRIPTION
HDMI, IR, CAT5/5e/6
HDX-LX-TX 1
Transmitter
HDMI, IR, CAT5/5e/6
HDX-LX-RX 1
Receiver
Power Supply 2 PS5VDC2A
Quick Start Guide 1
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com

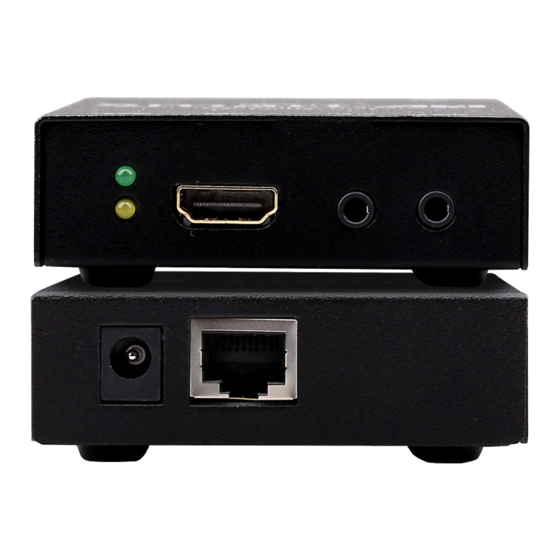

HDX-LX
4K HDMI & IR Extender over
Cat5/5e/6
WATCH AND CONTROL HDTV
4K VIDEO UP TO 250FT
FROM THE SOURCE VIA
CAT5/5E/6
Quick Start Guide
