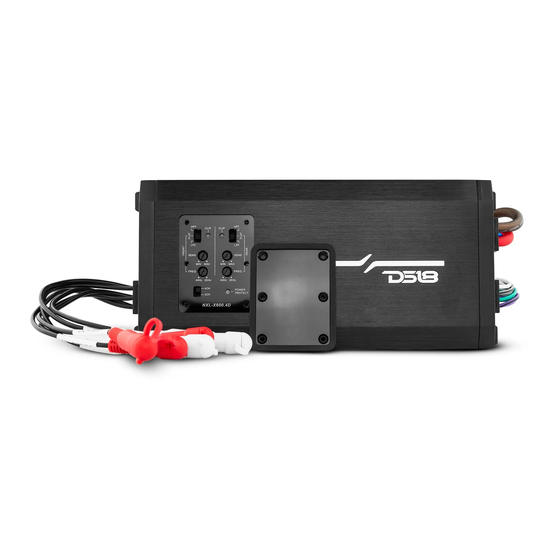

DS18 NXL-X Owner's Manual

DS18 NXL-X Owner's Manual

Marine & powersports digital amplifiers

Advertisement

Quick Links

NXL-X
OWNER'S MANUAL
MANUAL DEL USUARIO
MARINE & POWERSPORTS
DIGITAL AMPLIFIERS
AMPLIFICADORES DIGITALES
PARA USO MARINO
Y POWERSPORTS
BOATS • JET SKIS • ATVS • UTVS • SXS • GOLF CART• MOTORCYCLES
PERFECT FOR:
ENGLISH | ESPAÑOL

Advertisement

loading
Need help?

Need help?

Do you have a question about the NXL-X and is the answer not in the manual?

Questions and answers

Summary of Contents for DS18 NXL-X

  • Page 1 NXL-X OWNER’S MANUAL MANUAL DEL USUARIO MARINE & POWERSPORTS DIGITAL AMPLIFIERS AMPLIFICADORES DIGITALES PARA USO MARINO Y POWERSPORTS BOATS • JET SKIS • ATVS • UTVS • SXS • GOLF CART• MOTORCYCLES PERFECT FOR: ENGLISH | ESPAÑOL...
  • Page 2: Table Of Contents

    INTRODUCIÓN Congratulations on the purchase of the NXL-X amp. ¡Felicitaciones por la compra el amplificador el NXL-X. Ha sido diseñado y fabricado para el más It has been designed, engineered, and manufactured alto nivel de rendimiento y calidad. for the highest level of performance and quality.
  • Page 3: Elements Description / Descripción De Los Elementos

    FEATURES CARACTERÍSTICAS • Selector de entrada (No disponible para el • Input Selector (N/A for NXL-X360.2D, NXL-X360.2D, NXL-X1500.1FR y NXL-X1000.1D) NXL-X1500.1FR & NXL-X1000.1D) • Clasificación de impermeabilidad IPX6 • IPX6 Waterproof Rating • Protección contra UV, sal y niebla • UV, Salt and Fog protection •...
  • Page 4 NXL-X AMPS ELEMENTS DESCRIPTION DESCRIPCIÓN DE LOS ELEMENTOS 1. INPUT MODE - Mode Selection: 1. MODO DE ENTRADA - Selección de modo: cuando el interruptor está en “4CH”, solo habrá salida en el canal When the switch is set to "4CH," the amplifier donde tiene entrada, cuando el interruptor está...
  • Page 5 WIRING CONNECTION CONEXIÓN DEL CABLEADO 1. SPEAKER OUTPUT - Speaker connecting wires. 1. SALIDA DE ALTAVOCES - Cables de conexión de altavoces. 2. INPUT - Low Level Input, this is your RCA audio 2. ENTRADA - Entrada de bajo nivel, esta es la entrada signal input from the source (head unit).
  • Page 6: Amplifier Installation / Instalación De Amplificador

    NXL-X AMPS READ BEFORE INSTALLATION LEER ANTES DE INSTALAR 1. Asegúrese de leer detenidamente y comprender las 1. Be sure to carefully read and understand the instrucciones antes de intentar instalar estos altavoces. instructions before attempting to install these speakers.
  • Page 7 9. Now you can turn on your amplifier! The NXL-X Series correspondientemente para que tengas un buen amplifier is equipped with essential controls for resultado en calidad de sonido.
  • Page 8: Wiring / Cableado

    NXL-X AMPS WIRING / CABLEADO NXL-X360.2D STEREO MODE 2 CHANNEL SPEAKER CONNECTION CONEXIÓN DE ALTAVOCES DE 2 CANALES EN MODO ESTEREO INPUT HEAD UNIT UNIDAD CENTRAL +12V REM GND 2 x 25A BATTERY (50A) BATERÍA Marine fuse for short protection included.
  • Page 9 BRIDGE MODE / WIRING / CABLEADO MODO PUENTE NXL-X360.2D 1 CHANNEL SPEAKER CONNECTION CONEXIÓN DE ALTAVOZ DE 1 CANAL INPUT HEAD UNIT UNIDAD CENTRAL +12V REM GND 2x25A (50A) Marine fuse for short protection included. Fusible marino para protección BATTERY MID / FULL RANGE OR SUBWOOFER / (4-8 OHM) contra corto circuítos inlcuído.
  • Page 10 NXL-X AMPS WIRING / CABLEADO NXL-X600.4D STEREO MODE 4 CHANNEL SPEAKER CONNECTION NXL-X850.4D CONEXIÓN DE ALTAVOCES DE 4 CANALES EN MODO ESTEREO INPUT HEAD UNIT UNIDAD CENTRAL +12V REM GND 2x40A (80A) NXL-X600.4D 2x50A (100A) NXL-X850.4D BATTERY BATERÍA Marine fuse for short protection included.
  • Page 11 BRIDGE MODE / WIRING / CABLEADO MODO PUENTE NXL-X600.4D 2 CHANNEL SPEAKER CONNECTION NXL-X850.4D CONEXIÓN DE ALTAVOZ DE 2 CANALES INPUT HEAD UNIT UNIDAD CENTRAL +12V REM GND 2x40A (80A) NXL-X600.4D 2x50A (100A) NXL-X850.4D Marine fuse for short protection included. Fusible marino para protección BATTERY contra corto circuítos inlcuído.
  • Page 12 NXL-X AMPS WIRING / CABLEADO NXL-X1200.5D STEREO MODE 5 CHANNEL SPEAKER CONNECTION CONEXIÓN DE ALTAVOCES DE 5 CANALES EN MODO ESTEREO (2-4 OHM) SUBWOOFER HEAD UNIT UNIDAD CENTRAL +12V REM GND 2 x 50A (100A) Marine fuse for short protection included.
  • Page 13 BRIDGE MODE / WIRING / CABLEADO MODO PUENTE NXL-X1200.5D 2 CHANNEL SPEAKER CONNECTION CONEXIÓN DE ALTAVOZ DE 2 CANALES HEAD UNIT UNIDAD CENTRAL +12V REM GND 2 x 50A (100A) Marine fuse for short protection included. MID / FULL RANGE OR SUBWOOFER / (4-8 OHM) Fusible marino para protección BATTERY MEDIO / RANGO COMPLETO O SUBWWOFER / (4-8 OHM)
  • Page 14 NXL-X AMPS WIRING / CABLEADO NXL-X900.6D STEREO MODE 6 CHANNEL SPEAKER CONNECTION CONEXIÓN DE ALTAVOCES DE 6 CANALES EN MODO ESTEREO HEAD UNIT UNIDAD CENTRAL +12V REM GND 2 x 60A (120A) Marine fuse for short protection included. MID / FULL RANGE (2-8 OHM) Fusible marino para protección...
  • Page 15 BRIDGE MODE / WIRING / CABLEADO MODO PUENTE NXL-X900.6D 3 CHANNEL SPEAKER CONNECTION CONEXIÓN DE ALTAVOZ DE 3 CANALES HEAD UNIT UNIDAD CENTRAL +12V REM GND 2 x 60A (120A) Marine fuse for short protection included. MID / FULL RANGE OR SUBWOOFER / (4-8 OHM) Fusible marino para protección BATTERY contra corto circuítos inlcuído.
  • Page 16 NXL-X AMPS WIRING / CABLEADO STEREO MODE 8 CHANNEL SPEAKER CONNECTION NXL-X1200.8D CONEXIÓN DE ALTAVOCES DE 8 CANALES EN MODO ESTEREO HEAD UNIT UNIDAD CENTRAL +12V REM GND 150A Marine fuse for short protection included. Fusible marino para protección BATTERY contra corto circuítos inlcuído.
  • Page 17 NXL-X AMPS WIRING / CABLEADO BRIDGE MODE / MODO PUENTE NXL-X1200.8D 4 CHANNEL SPEAKER CONNECTION CONEXIÓN DE ALTAVOZ DE 4 CANALES HEAD UNIT UNIDAD CENTRAL +12V REM GND 150A Marine fuse for short protection included. Fusible marino para protección BATTERY contra corto circuítos inlcuído.
  • Page 18 NXL-X AMPS WIRING / CABLEADO NXL-X1000.1D 1 CHANNEL SPEAKER CONNECTION CONEXIÓN DE ALTAVOCES DE 1 CANAL CH SUB INPUT CH SUB INPUT HEAD UNIT UNIDAD CENTRAL +12V REM GND SUB- SUB+ (1-4 OHMS) 2 x 50A (100A) SUBWOOFER- BATTERY Marine fuse for short BATERÍA...
  • Page 19 NXL-X AMPS WIRING / CABLEADO NXL-X1500.1FR 1 CHANNEL SPEAKER CONNECTION CONEXIÓN DE ALTAVOCES DE 1 CANAL LEFT CH INPUT RIGHT CH INPUT HEAD UNIT UNIDAD CENTRAL +12V REM GND SPK- SPK+ (1-4 OHMS) 150A BATTERY Marine fuse for short BATERÍA MID / FUL RANGE OR protection included.
  • Page 20: Specifications / Especificaciones

    NXL-X360. 2 D SPECIFICATIONS / ESPECIFICACIONES POWER / POTENCIA Total Watts (Peak) / ........................1000W (Pico) Vatios Totales RMS Power @ 4 ohm / Poder Continuo @ 4 OHM ....................2 x 180W RMS Power @ 2 ohm / Poder Continuo @ 2 OHM ....................2 x 250W RMS Power @ 4 ohm Bridge / ................
  • Page 21 NXL-X600. 4 D SPECIFICATIONS / ESPECIFICACIONES POWER / POTENCIA Total Watts (Peak) / (Pico) Vatios Totales ........................1600W RMS Power @ 4 ohm / Poder Continuo @ 4 OHM ....................4 x 150W RMS Power @ 2 ohm / Poder Continuo @ 2 OHM ....................4 x 200W RMS Power @ 4 ohm Bridge / ...............2 x 400W...
  • Page 22 NXL-X850. 4 D SPECIFICATIONS / ESPECIFICACIONES POWER / POTENCIA Total Watts (Peak) / (Pico) Vatios Totales ........................2400W RMS Power @ 4 ohm / Poder Continuo @ 4 OHM ....................4 x 200W RMS Power @ 2 ohm / Poder Continuo @ 2 OHM ....................4 x 300W RMS Power @ 4 ohm Bridge / ...............2 x 600W...
  • Page 23 NXL-X1200. 5 D SPECIFICATIONS / ESPECIFICACIONES POWER / POTENCIA Total Watts (Peak) / (Pico) Vatios Totales ........................2800W RMS Power @ 4 ohm / Poder Continuo @ 4 OHM ...............4 x 150W + 350W (SUB) RMS Power @ 2 ohm / Poder Continuo @ 2 OHM ...............4 x 200W + 600W (SUB) RMS Power @ 4 ohm Bridge /...
  • Page 24 NXL-X900. 6 D SPECIFICATIONS / ESPECIFICACIONES POWER / POTENCIA Total Watts (Peak) / (Pico) Vatios Totales ........................3000W RMS Power @ 4 ohm / Poder Continuo @ 4 OHM ....................6 x 150W RMS Power @ 2 ohm / ....................6 x 250W Poder Continuo @ 2 OHM RMS Power @ 4 ohm Bridge / Poder Continuo @ 4 OHM Puente...
  • Page 25 NXL-X1200. 8 D SPECIFICATIONS / ESPECIFICACIONES POWER / POTENCIA Total Watts (Peak) / (Pico) Vatios Totales ........................2800W RMS Power @ 4 ohm / Poder Continuo @ 4 OHM ....................8 x 150W RMS Power @ 2 ohm / Poder Continuo @ 2 OHM ....................8 x 220W RMS Power @ 4 ohm Bridge / ...............4 x 450W...
  • Page 26 NXL-X1000. 1 D SPECIFICATIONS / ESPECIFICACIONES POWER / POTENCIA Total Watts (Peak) / ........................2000W (Pico) Vatios Totales RMS Power @ 4 ohm / Poder Continuo @ 4 OHM ....................... 350W RMS Power @ 2 ohm / Poder Continuo @ 2 OHM .......................
  • Page 27 NXL-X1500. 1 FR SPECIFICATIONS / ESPECIFICACIONES POWER / POTENCIA Total Watts (Peak) / ........................3000W (Pico) Vatios Totales RMS Power @ 4 ohm / Poder Continuo @ 4 OHM ....................... 700W RMS Power @ 2 ohm / Poder Continuo @ 2 OHM .....................1000W RMS Power @ 1 ohm / .....................1500W...
  • Page 28: Dimensions / Dimensiones

    NXL-X AMPS DIMENSION / DIMENSIONES NXL-X360.2D: 6.7" / 171mm NXL-X900.6D: 12.5" / 320mm NXL-X600.4D: 9.11" / 231.6mm NXL-X1200.8D: 12.5" / 320mm NXL-X850.4D: 10.2" / 261mm NXL-X1000.1D: 11" / 281.6mm NXL-X1200.5D: 11.87" / 301.7mm NXL-X1500.1FR: 11.8" / 301mm NXL-X360.2D: 8.3" / 211mm NXL-X900.6D: 14"...
  • Page 29: Troubleshooting / Solución De Problemas

    TROUBLESHOOTING SOLUCIÓN DE PROBLEMAS Before removing your amplifier refer to the list Antes de retirar su amplificador, consulte la lista a below and follow the suggested procedures. continuación y siga los procedimientos sugeridos. Siempre pruebe primero los altavoces y sus cables. Always test the speakers and their wires first EL AMPLIFICADOR NO SE ENCIENDE AMPLIFIER WON’T POWER UP...
  • Page 30 Esto siempre es causado por un cable RCA mal conectado a tierra. WARRANTY GARANTÍA Please visit our website DS18.com for more Visita nuestra página web DS18.com para obtener information on our warranty policy más información sobre nuestra garantía We reserve the right to change products and Nos reservamos el derecho de cambiar productos y specifications at any time without notice.
