KOLO
SOLO
Assembly
Instructions

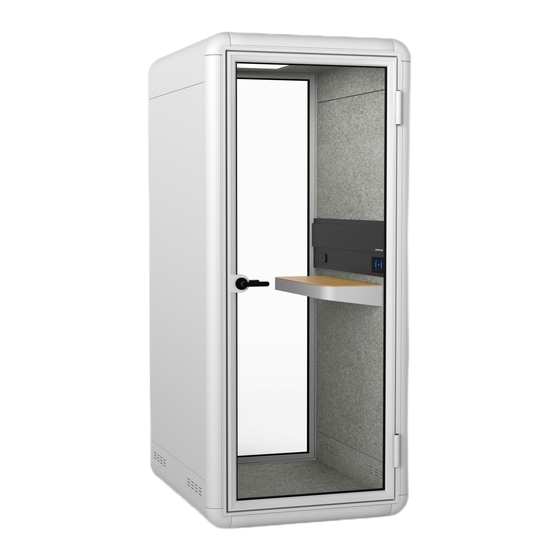

acoustic collection - kolo solo
[left hand open - outlet on left - without stool]
koplus b.v. | koplus.eu
hello@koplusbrand.com
version
20240104
