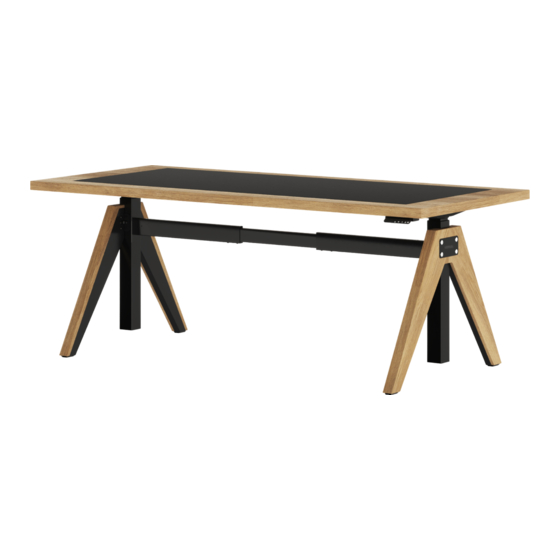

Koplus KINNET DESK Assembly Instructions Manual

Sit-stand desk
Hide thumbs

Advertisement

Quick Links

Download this manual
KINNET
DESK
Sit-Stand Desk
Assembly
Instructions
sit-stand collection - kinnet sit-stand desk
koplus b.v. | koplus.eu
info@koplusbrand.com
version
230831

Advertisement

loading
Need help?

Need help?

Do you have a question about the KINNET DESK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Koplus KINNET DESK

Summary of Contents for Koplus KINNET DESK

  • Page 1 KINNET DESK Sit-Stand Desk Assembly Instructions sit-stand collection - kinnet sit-stand desk koplus b.v. | koplus.eu info@koplusbrand.com version 230831...
  • Page 3 Any warranty or liability claims for damages or injuries caused by improper use of the desk will NOT be accepted. For sit-stand desks, Koplus warrants to the original purchaser a 5 year warranty on the structure and a 2 year warranty on the motor, controller, switch, electronics and all other mechanical parts.

  • Page 5: Required Tools

    Required Tools Drill Phillips Screw Driver Page 03 Koplus B.V. | Kinnet Sit-stand Desk | Assembly Instructions...

  • Page 6: Part List

    Wood Leg - B Nº4-A Nº4-B Nº5-A Outer Frame - A Outer Frame - B Side Frame - A Nº5-B Nº6 Nº7 Side Frame - B Inner Frames Cross Bar Side Frames Page 04 Koplus B.V. | Kinnet Sit-stand Desk | Assembly Instructions...
  • Page 7 Nº8 Nº9 Nº10 Cross Bar Center Frame Logo Covers Control Box Nº11 Handset Page 05 Koplus B.V. | Kinnet Sit-stand Desk | Assembly Instructions...
  • Page 8 Motor Extension Cord Cable Mount M8 x 35 M8 x 16 M6 x 10 M6 x 14 M6 x 20 M5 x 20 M5 x 16 5/32” x 5/8” L Page 06 Koplus B.V. | Kinnet Sit-stand Desk | Assembly Instructions...
  • Page 9 Tool Kit: Screw Pack List Wood Leg Base Covers 4mm Allen Key 5mm Allen Key 13mm Wrench Page 07 Koplus B.V. | Kinnet Sit-stand Desk | Assembly Instructions...
  • Page 10 Step 1. M8 x 35 Nº1-A Nº2-A Sit-stand Leg - A Wood Leg Base - A Nº2-B Wood Leg Base - B Page 08 Koplus B.V. | Kinnet Sit-stand Desk | Assembly Instructions...
  • Page 11 Step 2. Nº9 Logo Cover Nº3-A Wood Leg - A Nº3-B Wood Leg - B Page 09 Koplus B.V. | Kinnet Sit-stand Desk | Assembly Instructions...
  • Page 12 Step 3. 5/32” x 5/8” L Wood Leg Base Cover Page 10 Koplus B.V. | Kinnet Sit-stand Desk | Assembly Instructions...
  • Page 13 Step 4. M8 x 35 Nº1-B Nº2-A Sit-stand Leg - A Wood Leg Base - A Nº2-B Wood Leg Base - B Page 11 Koplus B.V. | Kinnet Sit-stand Desk | Assembly Instructions...
  • Page 14 Step 5. Nº9 Logo Cover Nº3-A Wood Leg - A Nº3-B Wood Leg - B Page 12 Koplus B.V. | Kinnet Sit-stand Desk | Assembly Instructions...
  • Page 15 Step 6. Wood Leg Base Cover 5/32” x 5/8” L Page 13 Koplus B.V. | Kinnet Sit-stand Desk | Assembly Instructions...
  • Page 16 Step 7. Nº7 Cross Bar Side Frames M8 x 16 Nº7 Cross Bar Side Frames M8 x 16 Page 14 Koplus B.V. | Kinnet Sit-stand Desk | Assembly Instructions...
  • Page 17 Step 8. Nº8 Cross Bar Center Frame M6 x 20 Page 15 Koplus B.V. | Kinnet Sit-stand Desk | Assembly Instructions...
  • Page 18 Step 9. M6 x 14 Nº4-A Outer Frame - A Nº5-A Side Frame - A Page 16 Koplus B.V. | Kinnet Sit-stand Desk | Assembly Instructions...
  • Page 19 Step 10. M6 x 14 Nº4-B Outer Frame - B Nº5-B Side Frame - B Page 17 Koplus B.V. | Kinnet Sit-stand Desk | Assembly Instructions...
  • Page 20 Step 11. Nº6 Inner Frames M6 x 10 Page 18 Koplus B.V. | Kinnet Sit-stand Desk | Assembly Instructions...
  • Page 21 Adjust the inner frames to desired width then fix in place with screws. The desk frame can be adjusted to fit 1200 - 1800 mm table top. M6 x 14 Page 19 Koplus B.V. | Kinnet Sit-stand Desk | Assembly Instructions...
  • Page 22 Power Outlet Motor Extension Cord Nº10 Control Box Power Outlet Nº11 Handset Handset Motor Page 20 Koplus B.V. | Kinnet Sit-stand Desk | Assembly Instructions...
  • Page 23 Step 14. Installer Tip for Table Top & Wire Management: Please use part C to mange wires and part J to attach table top. M5 x 16 Page 21 Koplus B.V. | Kinnet Sit-stand Desk | Assembly Instructions...
  • Page 24 Kinnet Sit-stand Desk Complete! Plug in and start using Kinnet! Please read through the controller intorduction to learn about Kinnet’s functions and operations before you begin. Page 22 Koplus B.V. | Kinnet Sit-stand Desk | Assembly Instructions...

  • Page 25: Functions And Operations

    3. Press on the button to select. 4. To exit the menu, remain inactive for 5 seconds or select “Return”. Timer Max/Min Height Handset Lock Vibration LED Light Return Page 23 Koplus B.V. | Kinnet Sit-stand Desk | Assembly Instructions...

  • Page 26: Memory Settings

    2. To set the desk’s maximum or minimum height, select the “Max/Min Height” menu. 3. With the desk set at the preffered maximum or minimum height, select the “Max Height” or “Min Height” menu. Page 24 Koplus B.V. | Kinnet Sit-stand Desk | Assembly Instructions...

  • Page 27: Handset Lock

    10 seconds of inactivity. 3. To unlock, press on any button to prompt the unlock instructions. Press on buttons in the order indicated on the LED display. Page 25 Koplus B.V. | Kinnet Sit-stand Desk | Assembly Instructions...
