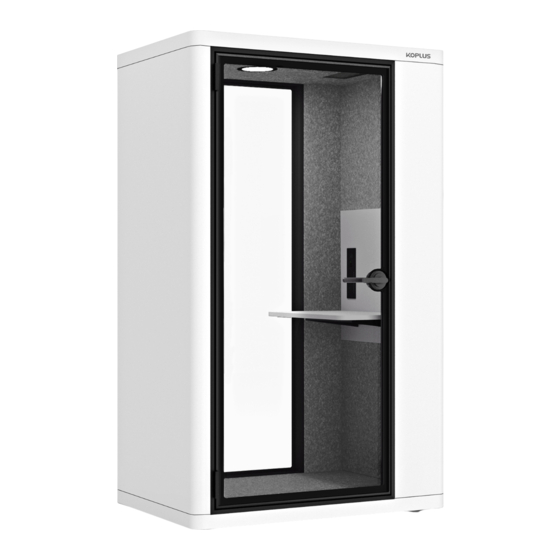

Koplus MILLI SIT Assembly Instructions Manual
Hide thumbs Also See for MILLI SIT:

Advertisement

Quick Links

MILLI
SIT
acoustic collection - milli sit
[left hand open - outlet on right - without sofa]
koplus b.v. | koplus.eu
info@koplusbrand.com
Assembly
Instructions
version 231114

Advertisement

loading
Need help?

Need help?

Do you have a question about the MILLI SIT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Koplus MILLI SIT

  • Page 1 MILLI Assembly Instructions acoustic collection - milli sit [left hand open - outlet on right - without sofa] koplus b.v. | koplus.eu info@koplusbrand.com version 231114...
  • Page 4 This is the assembly instruction guide for left hand opening door Milli Sit without sofa. A packaged Milli Sit unit weights 245 kg and will require 2-3 persons to install. It takes an average of 30 - 45 min to install Milli Sit.
  • Page 5: Required Tools

    Ratchet Wrench - Metric Socket Ratchet Wrench - Metric Socket Phillips Screw Driver Phillips Screw Driver Allen Key Set Allen Key Set Page 03 Koplus B.V. | Milli Sit | Left Hand Open Door | Outlet on Right | Without Sofa | Assembly Instructions...
  • Page 6: Part List

    Nº1-8 Nº1-7 Nº2 M4x40mmL Fan Module Side Wall +Electric Nº4 Nº5 Nº3 Bottom Back Glass Frame Side Wall Page 04 Koplus B.V. | Milli Sit | Left Hand Open Door | Outlet on Right | Without Sofa | Assembly Instructions...
  • Page 7 Nº7 Glass Door Frame Side Table Top Nº8-2 Nº10 Nº9 Side Table Frame Bottom Side Panels Floor PET Page 05 Koplus B.V. | Milli Sit | Left Hand Open Door | Outlet on Right | Without Sofa | Assembly Instructions...
  • Page 8 Tool Kit: Screw Pack List M8 x 80 M8 x 40 M8 x 60 1/4-20UNC x 3-1/8”L 1/4-20UNC x 5/8”L Page 06 Koplus B.V. | Milli Sit | Left Hand Open Door | Outlet on Right | Without Sofa | Assembly Instructions...
  • Page 9 Step 1. Nº3 Side Wall Nº4 Bottom Page 07 Koplus B.V. | Milli Sit | Left Hand Open Door | Outlet on Right | Without Sofa | Assembly Instructions...
  • Page 10 Step 2. M8 x 60 Page 08 Koplus B.V. | Milli Sit | Left Hand Open Door | Outlet on Right | Without Sofa | Assembly Instructions...
  • Page 11 Step 3. Nº5 Back Glass Frame Page 09 Koplus B.V. | Milli Sit | Left Hand Open Door | Outlet on Right | Without Sofa | Assembly Instructions...
  • Page 12 Step 4. M8 x 40 Page 10 Koplus B.V. | Milli Sit | Left Hand Open Door | Outlet on Right | Without Sofa | Assembly Instructions...
  • Page 13 Nº1-6 Interior Handle Nº1-4 Nº1-7 Exterior Bezel M4x40mmL Nº1-5 Interior Bezel Nº1-3 Exterior Handle Nº6 Glass Door Frame Page 11 Koplus B.V. | Milli Sit | Left Hand Open Door | Outlet on Right | Without Sofa | Assembly Instructions...
  • Page 14 Step 6. ATTENTION: Needs manual support to hold the door in upright position. Page 12 Koplus B.V. | Milli Sit | Left Hand Open Door | Outlet on Right | Without Sofa | Assembly Instructions...
  • Page 15 Step 7. M8 x 40 ATTENTION: Needs manual support to hold the door in upright position. Page 13 Koplus B.V. | Milli Sit | Left Hand Open Door | Outlet on Right | Without Sofa | Assembly Instructions...
  • Page 16 Step 8. M8 x 40 ATTENTION: Needs manual support to hold the door in upright position. Page 14 Koplus B.V. | Milli Sit | Left Hand Open Door | Outlet on Right | Without Sofa | Assembly Instructions...
  • Page 17 Step 9. Nº2 Side Wall +Electric Page 15 Koplus B.V. | Milli Sit | Left Hand Open Door | Outlet on Right | Without Sofa | Assembly Instructions...
  • Page 18 Step 10. M8 x 40 Page 16 Koplus B.V. | Milli Sit | Left Hand Open Door | Outlet on Right | Without Sofa | Assembly Instructions...
  • Page 19 Step 11. M8 x 40 Page 17 Koplus B.V. | Milli Sit | Left Hand Open Door | Outlet on Right | Without Sofa | Assembly Instructions...
  • Page 20 Step 12. Page 18 Koplus B.V. | Milli Sit | Left Hand Open Door | Outlet on Right | Without Sofa | Assembly Instructions...
  • Page 21 Step 13. Nº7 Page 19 Koplus B.V. | Milli Sit | Left Hand Open Door | Outlet on Right | Without Sofa | Assembly Instructions...
  • Page 22 Step 14. M8 x 80 M8 x 40 Page 20 Koplus B.V. | Milli Sit | Left Hand Open Door | Outlet on Right | Without Sofa | Assembly Instructions...
  • Page 23 Step 15. 12 - A x6 Page 21 Koplus B.V. | Milli Sit | Left Hand Open Door | Outlet on Right | Without Sofa | Assembly Instructions...
  • Page 24 Step 16. 12 - A x6 Nº1-8 Fan Module Page 22 Koplus B.V. | Milli Sit | Left Hand Open Door | Outlet on Right | Without Sofa | Assembly Instructions...
  • Page 25 Step 17. remove and set aside Page 23 Koplus B.V. | Milli Sit | Left Hand Open Door | Outlet on Right | Without Sofa | Assembly Instructions...
  • Page 26 Step 18. 1/4-20UNC x 3-1/8”L Nº8-2 Side Table Frame Page 24 Koplus B.V. | Milli Sit | Left Hand Open Door | Outlet on Right | Without Sofa | Assembly Instructions...
  • Page 27 Step 19. remove and set aside Page 25 Koplus B.V. | Milli Sit | Left Hand Open Door | Outlet on Right | Without Sofa | Assembly Instructions...
  • Page 28 Step 20. 1/4-20UNC x 3-1/8”L Page 26 Koplus B.V. | Milli Sit | Left Hand Open Door | Outlet on Right | Without Sofa | Assembly Instructions...
  • Page 29 Step 21. Nº8-1 Side Table Top 1/4-20UNC x 5/8”L Page 27 Koplus B.V. | Milli Sit | Left Hand Open Door | Outlet on Right | Without Sofa | Assembly Instructions...
  • Page 30 Step 22. Nº10 Floor PET Nº9 Bottom Side Panels Page 28 Koplus B.V. | Milli Sit | Left Hand Open Door | Outlet on Right | Without Sofa | Assembly Instructions...
