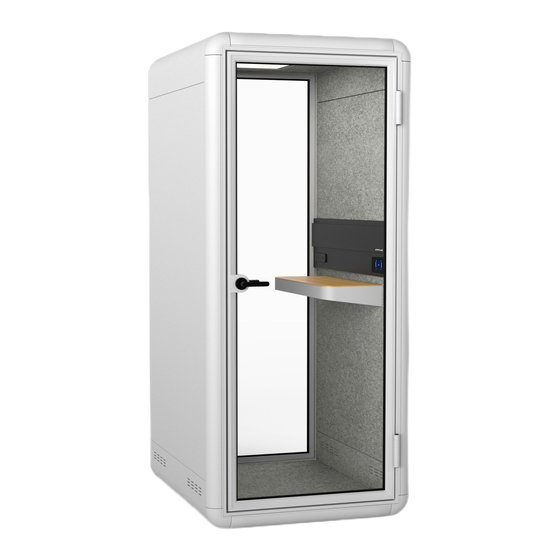

KOLO
SOLO
[right hand open - outlet on right - without stool - type A/B]
Assembly
Instructions.
acoustic collection - kolo solo
koplus b.v. | koplus.eu
info@koplusbrand.com
version
030621

Advertisement

loading
Need help?

Need help?

Do you have a question about the KOLO SOLO and is the answer not in the manual?

Questions and answers

Related Manuals for Koplus KOLO SOLO

Summary of Contents for Koplus KOLO SOLO

  • Page 1 KOLO SOLO Assembly Instructions. acoustic collection - kolo solo [right hand open - outlet on right - without stool - type A/B] koplus b.v. | koplus.eu info@koplusbrand.com version 030621...
  • Page 3 22W. The power cord fuse is set at 7amp to prevent overloading. Kolo Solo comes with 2 AC power outlets and 2 USB charging outlets. DO NOT plug in any electronic devices that uses over 5amp.

  • Page 5: Required Tools

    Ratchet Wrench - Metric Socket Phillips Screw Driver Allen Key Set **Must be purchased seperately** Aligning Rods Page 03 Koplus B.V. | Kolo Solo | Right Hand Open Door | Outlet on Right | Without Stool | Type A/B Plug | Assembly Instruction...

  • Page 6: Part List

    Screw Cover Double Nº2 Nº1-10 Nº3 Bottom Socket Cover Tile Bottom Side Wall + Electric Page 04 Koplus B.V. | Kolo Solo | Right Hand Open Door | Outlet on Right | Without Stool | Type A/B Plug | Assembly Instruction...
  • Page 7 Glass Door Frame Nº9 Nº10 Nº11 Floor Tile Top Finishing Panel Bottom Finishing Panel Page 05 Koplus B.V. | Kolo Solo | Right Hand Open Door | Outlet on Right | Without Stool | Type A/B Plug | Assembly Instruction...
  • Page 8 Spring Washer M8 x 50 M8 x 25 1/4-20 UNC x 1-1/2 M4 x 12 Page 06 Koplus B.V. | Kolo Solo | Right Hand Open Door | Outlet on Right | Without Stool | Type A/B Plug | Assembly Instruction...
  • Page 9 Step 1. Nº3 Side Wall + Electric M8 x 50 Nº2 Bottom Page 07 Koplus B.V. | Kolo Solo | Right Hand Open Door | Outlet on Right | Without Stool | Type A/B Plug | Assembly Instruction...
  • Page 10 Step 2. Nº4 Side Wall M8 x 50 Page 08 Koplus B.V. | Kolo Solo | Right Hand Open Door | Outlet on Right | Without Stool | Type A/B Plug | Assembly Instruction...
  • Page 11 Step 3. Nº5 M8 x 50 Page 09 Koplus B.V. | Kolo Solo | Right Hand Open Door | Outlet on Right | Without Stool | Type A/B Plug | Assembly Instruction...
  • Page 12 Step 4. Nº6 Back Glass Frame Aligning Rod Page 10 Koplus B.V. | Kolo Solo | Right Hand Open Door | Outlet on Right | Without Stool | Type A/B Plug | Assembly Instruction...
  • Page 13 Step 5. Nº6 Back Glass Frame Page 11 Koplus B.V. | Kolo Solo | Right Hand Open Door | Outlet on Right | Without Stool | Type A/B Plug | Assembly Instruction...
  • Page 14 Step 6. Spring Washer M8 x 25 Page 12 Koplus B.V. | Kolo Solo | Right Hand Open Door | Outlet on Right | Without Stool | Type A/B Plug | Assembly Instruction...
  • Page 15 Step 7. Spring Washer M8 x 25 Page 13 Koplus B.V. | Kolo Solo | Right Hand Open Door | Outlet on Right | Without Stool | Type A/B Plug | Assembly Instruction...
  • Page 16 Step 8. Aligning Rod Page 14 Koplus B.V. | Kolo Solo | Right Hand Open Door | Outlet on Right | Without Stool | Type A/B Plug | Assembly Instruction...
  • Page 17 Top Finishing Panels Nº1-10 Bottom Socket Cover Tile Nº9 Floor Tile Nº11 Bottom Finishing Panels Page 15 Koplus B.V. | Kolo Solo | Right Hand Open Door | Outlet on Right | Without Stool | Type A/B Plug | Assembly Instruction...
  • Page 18 Table Top + Frame Nº7-2 Table Bottom Cover 1/4-20 UNC x 1-1/2 M4 x 12 Page 16 Koplus B.V. | Kolo Solo | Right Hand Open Door | Outlet on Right | Without Stool | Type A/B Plug | Assembly Instruction...
  • Page 19 Step 11. Nº8 Glass Door Frame Aligning Rod Page 17 Koplus B.V. | Kolo Solo | Right Hand Open Door | Outlet on Right | Without Stool | Type A/B Plug | Assembly Instruction...
  • Page 20 Step 12. Nº8 Glass Door Frame Page 18 Koplus B.V. | Kolo Solo | Right Hand Open Door | Outlet on Right | Without Stool | Type A/B Plug | Assembly Instruction...
  • Page 21 Step 13. Spring Washer M8 x 25 Page 19 Koplus B.V. | Kolo Solo | Right Hand Open Door | Outlet on Right | Without Stool | Type A/B Plug | Assembly Instruction...
  • Page 22 Step 14. Spring Washer M8 x 25 Page 20 Koplus B.V. | Kolo Solo | Right Hand Open Door | Outlet on Right | Without Stool | Type A/B Plug | Assembly Instruction...
  • Page 23 Step 15. Aligning Rod Page 21 Koplus B.V. | Kolo Solo | Right Hand Open Door | Outlet on Right | Without Stool | Type A/B Plug | Assembly Instruction...
  • Page 24 Nº1-4 Mounting Plate Nº1-7 Exterior M4x40mmL Nº1-6 Interior Handle Nº1-3 Nº1-5 Exterior Handle Rose Page 22 Koplus B.V. | Kolo Solo | Right Hand Open Door | Outlet on Right | Without Stool | Type A/B Plug | Assembly Instruction...
