Hydroflow C Series Installation Manual page 7

DO NOT POWER UP UNIT UNTIL ALL
FERRITES SUPPLIED ARE CONNECTED.
POWERING THE UNITS WITHOUT FERRITES WILL INVALIDATE THE

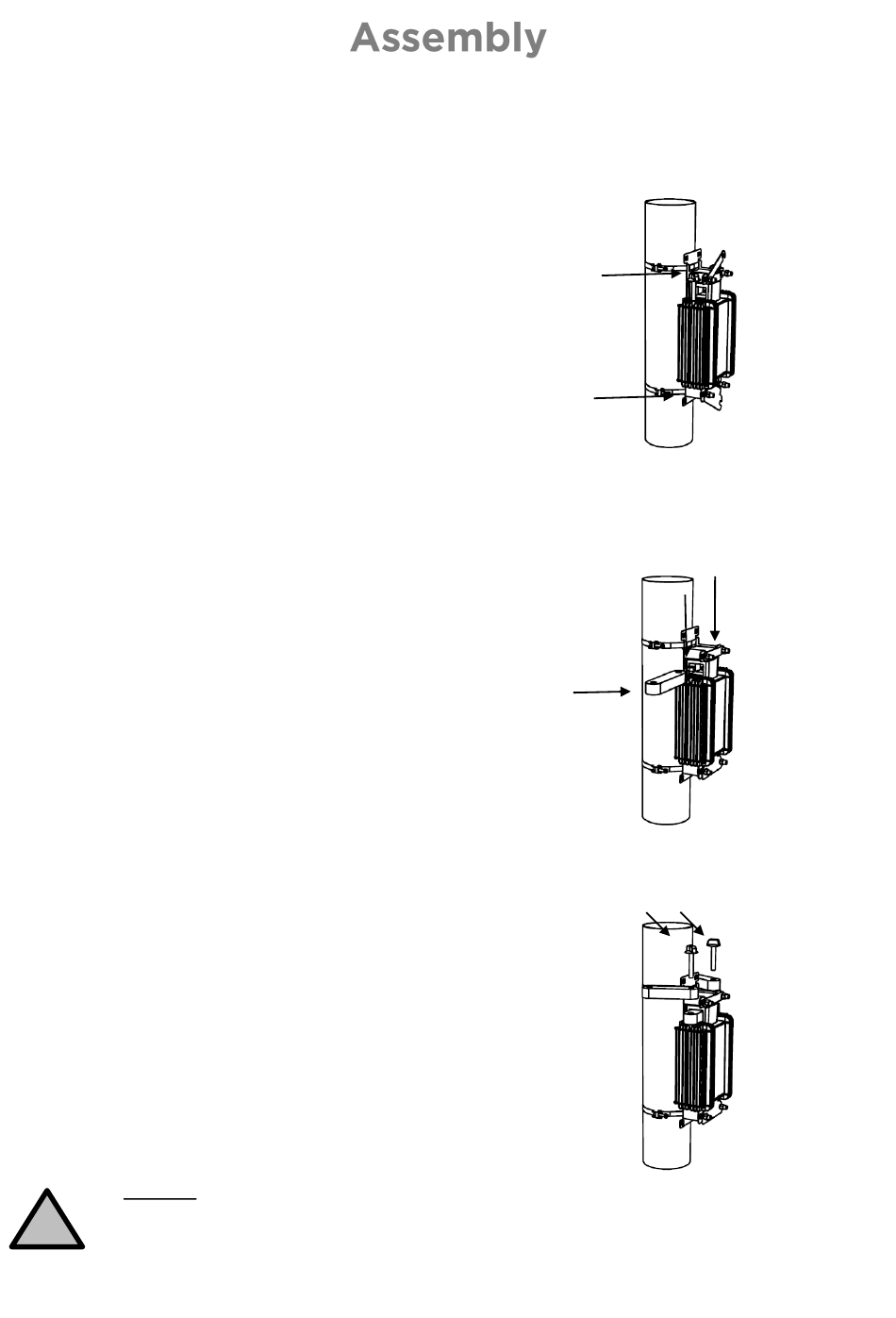

• Place the unit on the bracket and hold in
place using the swinging plates.
• Secure by tightening the four steel nuts.
• Insert the two hexagon nuts into the holes
in the end plate, next to the ferrite holding
cage.
• The transducer unit is supplied with at
least one long ferrite bar. Insert this
through the holding cage until the holes
line up with the hexagon nuts.
• Take a second ferrite, insert a plastic
thumb screw through both ferrite bars and
loosely screw into hexagon nut.
• Repeat on opposite side.
WARNING
The system must be used as
!
specified. Failure to do so
will prevent correct operation
of device and may impair
safety.
WARRANTY
Plate
Plate
Ferrite bars
Thumb screws
Hexagon Nuts
