Mechanical Details - Hydroflow C Series Installation Manual

FLOW
The Hydro C Range water conditioner is specifically designed to combat limescale
in commercial and/or industrial applications by clustering mineral ions. C Range units
are most commonly used on heat exchangers and plumbing systems.
.
Model
Arrangement
C45
C60
C100
C130
C150
C190
•All units draw less than 1 amp of current at 120V AC
•Listed weights include: Transducer unit, power supply, ferrites, cables
and mounting hardware.

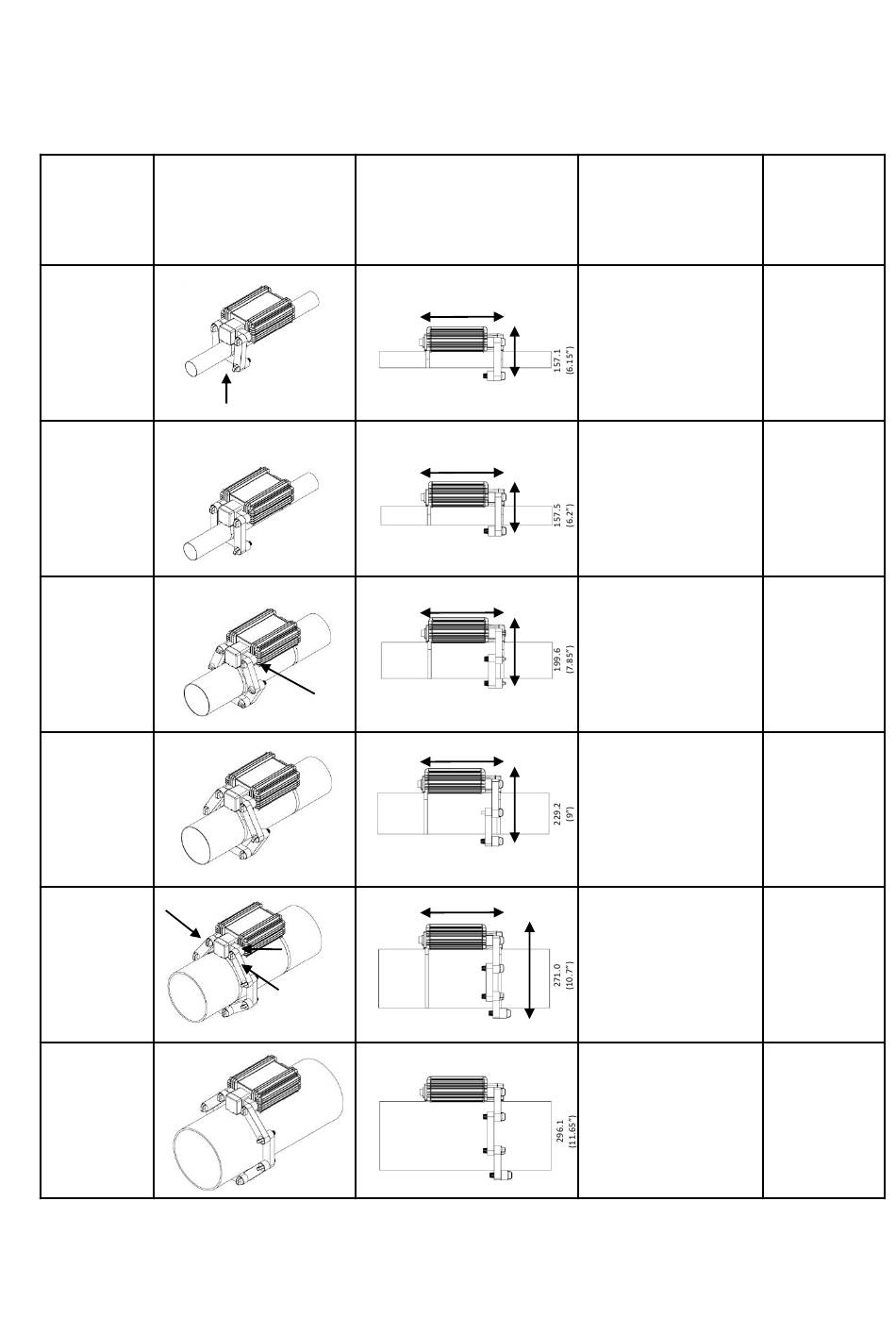

Mechanical Details

Ferrite
Arrow indicates shorter 45mm pipe
109mm ferrite (1.75")
55mm pipe
(2.2")
Arrow indicates
104mm pipe
longer 126mm
(4.1")
ferrite
130mm pipe
(5.1")
Arrows indicate
175mm pipe
longer 126mm
(6.9")
ferrites
199mm pipe
(7.8")
Dimensions
mm (inches)
219.4
(8.63")
219.4
(8.63")
219.4
(8.63")
219.4
(8.63")
219.4
(8.63")
219.4
(8.63")
Ferrites Weight kg
1 x 109mm
(4.25")
4.1 (8.8)
3 x 126mm
(5.0")
4 x 126mm
4.2 (9.2)
(5.0")
5 x 109mm
(4.25")
4.4 (9.7)
1 x 126mm
(5.0")
6 x 126mm
(5.0")
4.6 (10.1)
5 x 109mm
(4.25")
5.4 (11.9)
3 x 126mm
(5.0")
8 x 126mm
5.8 (12.8)
(5.0")
