Summary of Contents for Euromatic TF116RC

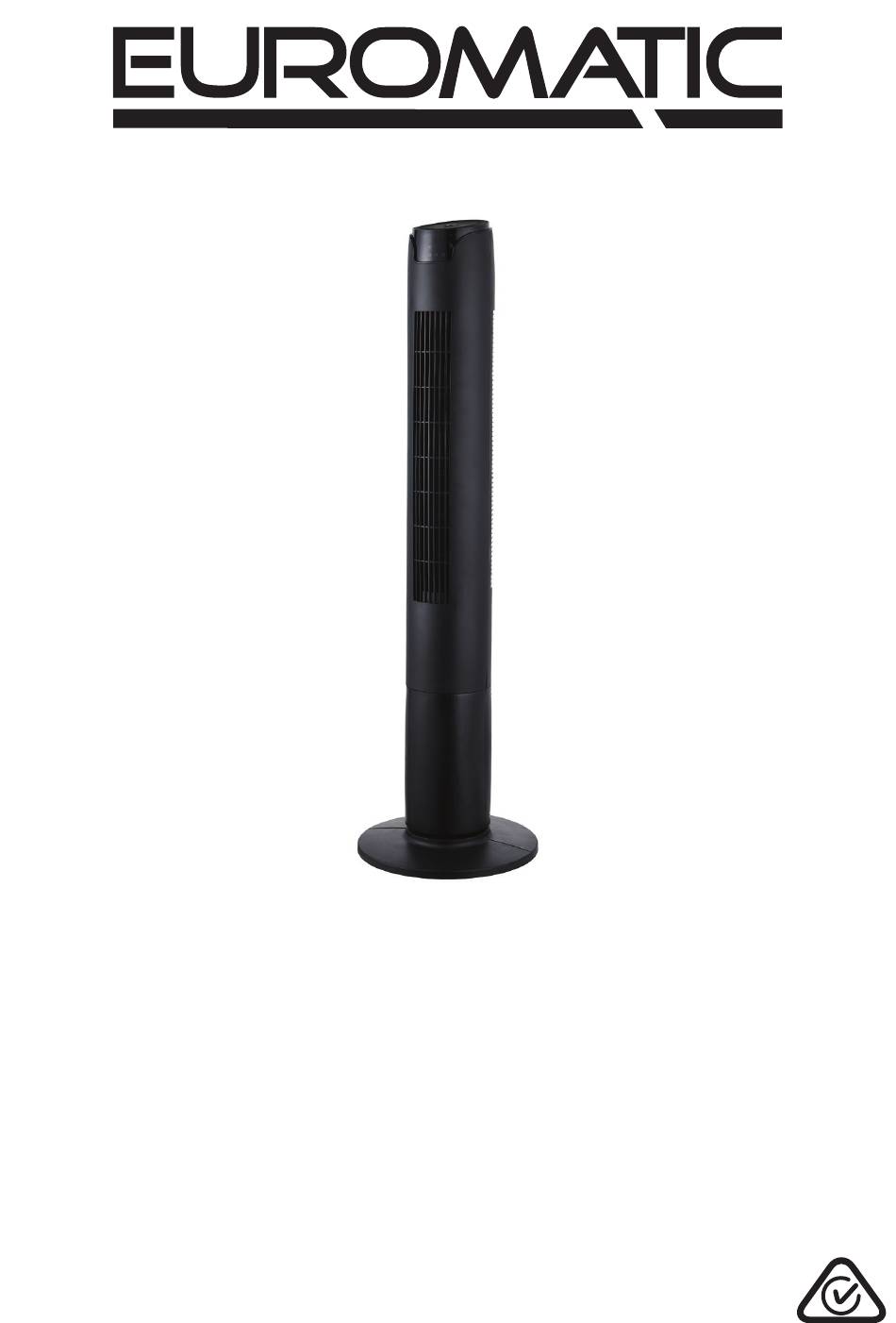

- Page 1 116 cm Tower Fan USER MANUAL Model Number TF116RC...
-
Page 2: Table Of Contents
Contents Page Important Safety Instructions Product Overview Getting Started Instructions FAQs and Troubleshooting Guide Other Useful Information After Sales Support 1300 886 649 | tempo.org/support... -
Page 3: Important Safety Instructions
Important Safety Instructions Read this manual thoroughly before first use, even if you are familiar with this type of product. The safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to. Make sure you understand all instructions and warnings. - Page 4 Important Safety Instructions • RCD: Unless your home is already fitted with a residual current device (safety switch), we recommend installing an RCD with a rated residual operating current not exceeding 30 mA to provide additional safety protection when using electrical appliances. See your electrician for professional advice. •...
-
Page 5: Product Overview

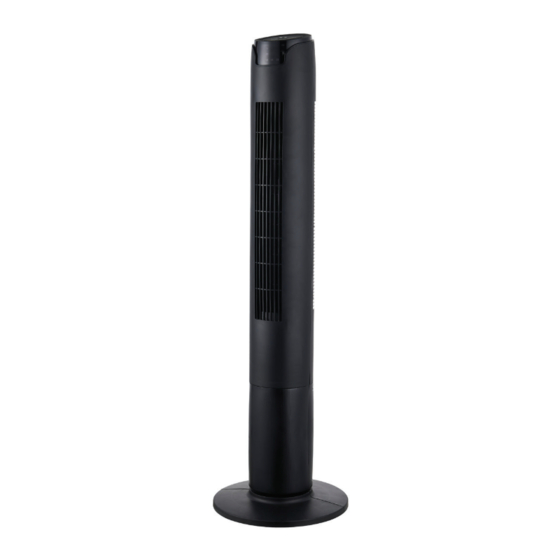

Product Overview Front view Control panel Speed Timer Mode 0.5H Parts list Control panel Integrated handle (at the back) Air inlet Air outlet grille Base stand (to be assembled - assembly kit not pictured) Remote control Documentation Instruction manual Warranty certificate NOTE: Due to continued product improvement, images and illustrations in this manual may vary slightly from the product purchased. - Page 6 Product Overview (Cont.) Speed Timer Mode 0.5H Control Panel POWER button OSCILLATION button TIMER button MODE button SPEED button Timer indicators (0.5 hours, 1 hour, 2 hours, 4 hours) Mode indicators (Natural and Sleep) Oscillation indicator Speed indicators (low, medium, high) Remote Control ON/OFF button OSCILLATION button...
-
Page 7: Getting Started
Getting Started Before first use • Unpacking: This product has been packaged to protect it against transportation damage. Unpack the appliance and keep the original packaging carton and materials in a safe place. It will help prevent any damage if the product needs to be transported in the future, and you can use it to store the appliance when it is not in use. - Page 8 Getting Started (Cont.) Assembly The stand must be fitted to the fan before use. The stand is supplied in two sections, upper and lower (Fig. 1). The lower section includes a guide for the power cable. • Lay the tower fan on a flat, stable surface for assembly of the base stand.
- Page 9 Getting Started (Cont.) • Use the two short screws to fix the two halves of the stand together (Fig. • Tuck the power cord into the guide so that is held close to the underside and exits through the slot in the side of the stand (Fig. 4). Fig.
-
Page 10: Instructions
Instructions Control panel or remote control operation For your convenience, the buttons on the control panel operate the same functions as the remote control. Handle the remote control carefully; do not drop or throw it. When using the remote control, make sure to maintain a distance of no more than 5 metres from the fan. - Page 11 Instructions (Cont.) Oscillation Press the OSC button to start and stop oscillation. Timer The timer allows you to set the length of operation from 0.5 hour to 7.5 hours. The fan must be in use when setting the timer. • Press the TIMER button to set the off-time in half hourly steps, up to a maximum of 7.5 hours.
-
Page 12: Faqs And Troubleshooting Guide
FAQs and Troubleshooting Guide If your fan fails to operate, or you experience any other problem with the appliance, check in the list of questions below for possible causes and solutions to common problems. Many problems can easily be solved without the need for a service call. -
Page 13: Other Useful Information
Other Useful Information WARNING! • Before cleaning, maintenance or moving the fan, switch off the fan and unplug it from the wall outlet. • Do not immerse the fan in water or other liquids. Do not spray it with liquids. Do not allow water to drip on or into the fan motor housing. •... - Page 14 Other Useful Information (Cont.) Battery replacement The remote control is powered by 2 AAA batteries. Before use, please add batteries to the remote control following the instructions below: • Remove the detachable cover from the remote control by pressing down and sliding outwards.
- Page 15 Other Useful Information (Cont.) Technical specifications Rated power 45 W Rated voltage 220–240 V~ Rated frequency 50–60 Hz Timer 7.5 hour timer Fan speeds 3 (Low - Medium - High) Mode settings 3 (Normal - Natural - Sleep) Remote control Powered by two AAA batteries Dimensions (approx.) 116 (H) x 20.7 (W) x 18.5 (D) cm...
- Page 16 Other Useful Information (Cont.) Responsible disposal Packaging materials are recyclable. Please dispose of them responsibly for recycling. At the end of its working life, make the appliance unserviceable by unplugging it from the power outlet and cutting the power cord. Do not throw this appliance out with your household waste.
- Page 17 This page has been left blank intentionally. After Sales Support 1300 886 649 | tempo.org/support...
- Page 18 This page has been left blank intentionally. After Sales Support 1300 886 649 | tempo.org/support...
- Page 19 This page has been left blank intentionally. After Sales Support 1300 886 649 | tempo.org/support...
- Page 20 Warranty returns Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product. Product does not work? If you encounter problems with this product, or if it fails to perform to your expectations, make sure to contact our After Sales Support Centre on (AU) 1300 886 649 or (NZ) 0800 836 761 for advice.
