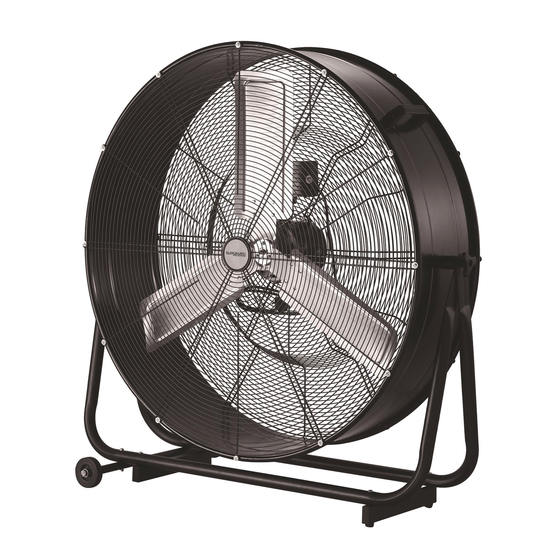

- Page 1 90cm High Velocity Metal Drum Floor Fan INSTRUCTION MANUAL Model Number DF9-SZ AFTER SALES SUPPORT (AU) 1300 886 649 (NZ) 0800 836 761...
-
Page 2: Table Of Contents
Contents Page Important Safety Instructions Product Overview Getting Started Instructions Other Useful Information After Sales Support (AU) 1300 886 649 (NZ) 0800 836 761 | info@tempo.org... -
Page 3: Important Safety Instructions
Important Safety Instructions READ CAREFULLY AND KEEP FOR FUTURE REFERENCE Read this manual thoroughly before first use, even if you are familiar with this type of product. The safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to. Make sure you understand all instructions and warnings. - Page 4 Important Safety Instructions (Cont.) • Connection: To insert the plug, grasp it firmly and guide it into the outlet. Never connect the fan to a power source while disassembled. • Disconnection: Unplug the fan from the power outlet when it is not in use and before cleaning, servicing, moving or storing the fan.
- Page 5 Important Safety Instructions (Cont.) - in a window, as rain may create an electrical hazard - in areas where paint, petrol, etc. is stored and there is a risk of explosion or fire from flammable gases, or in areas where substances are being sprayed.
-
Page 6: Product Overview
Product Overview Parts list Assembly hardware (as pictured below) Fan blade Front and rear safety guards (grilles) Wheel axle with 2 castor wheels Wheels (2) Screws Stand frame Nuts Speed control knob (at the back) Gaskets Handle After Sales Support (AU) 1300 886 649 (NZ) 0800 836 761 | info@tempo.org... -
Page 7: Getting Started
Getting Started Before first use • Unpacking: This product has been packaged to protect it against transportation damage. Unpack the appliance and keep the original packaging materials in a safe place. It will help prevent any damage if the product needs to be transported in the future, and you can use it to store the appliance when it is not in use. - Page 8 Getting Started (Cont.) Castor wheel assembly The castor wheels have to be assembled according to the instructions below using the assembly hardware supplied. 1. Insert a gasket over the screw thread onto the screw shank (A), then insert the screw with the gasket through the mounting hole of the footrest (B) and into the screw hole of the castor wheel axle (C).
-
Page 9: Instructions
Instructions Placement • This fan is intended for floor use only. Place it on a level floor surface where it will not overturn during use. • As high velocity fans are designed to create rapid air movement, make sure the fan is not place near drapes, curtains or any objects that may be drawn into the fan outlet. -
Page 10: Other Useful Information
Other Useful Information WARNING! • Before cleaning, maintenance or moving the fan, switch off the fan and disconnect it from the power supply. • Do not immerse the fan in water or other liquids. Do not spray it with liquids. Do not allow water to drip on or into the motor housing. •... - Page 11 Other Useful Information (Cont.) Technical specifications Power 520W, 220-240V~, 50Hz Dimensions (mm) 1080 x 530 x 1084 (approx.) Weight 25.9kg (approx.) Compliance This appliance has been fully tested and meets all requirements as set out by standards AS/NZS 60335.1 and AS/NZS 60335.2.80. The RCM Mark (Regulatory Compliance Mark) indicates that the product complies with the relevant guidelines of the ACMA as well as corresponding government requirements for the safety of electrical devices.
- Page 12 Warranty returns Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product. Product does not work? If you encounter problems with this product, or if it fails to perform to your expectations, make sure to contact our After Sales Support Centre on (AU) 1300 886 649 or (NZ) 0800 836 761.
