Getting Started (Cont.)
Assembly
The stand must be fitted to the fan before use. The stand is supplied in two
sections, upper and lower (Fig. 1). The lower section includes a guide for the
power cable.
• Lay the tower fan on a flat, stable surface for assembly of the base
stand. Stand the fan on its top surface so that the base is visible, holding
it carefully in place. You may need to rest it on a soft material, such as
a towel, to avoid scratching the control panel or your floor/ assembly
surface.
• Place the upper half of the stand onto the base of the fan. This will align
with three of the fixing pillars on the base.
• Place the lower half of the base over the upper half, ensuring that the
power cable is not trapped under the stand. Use the four long screws to
secure the stand to the fan (Fig. 2).

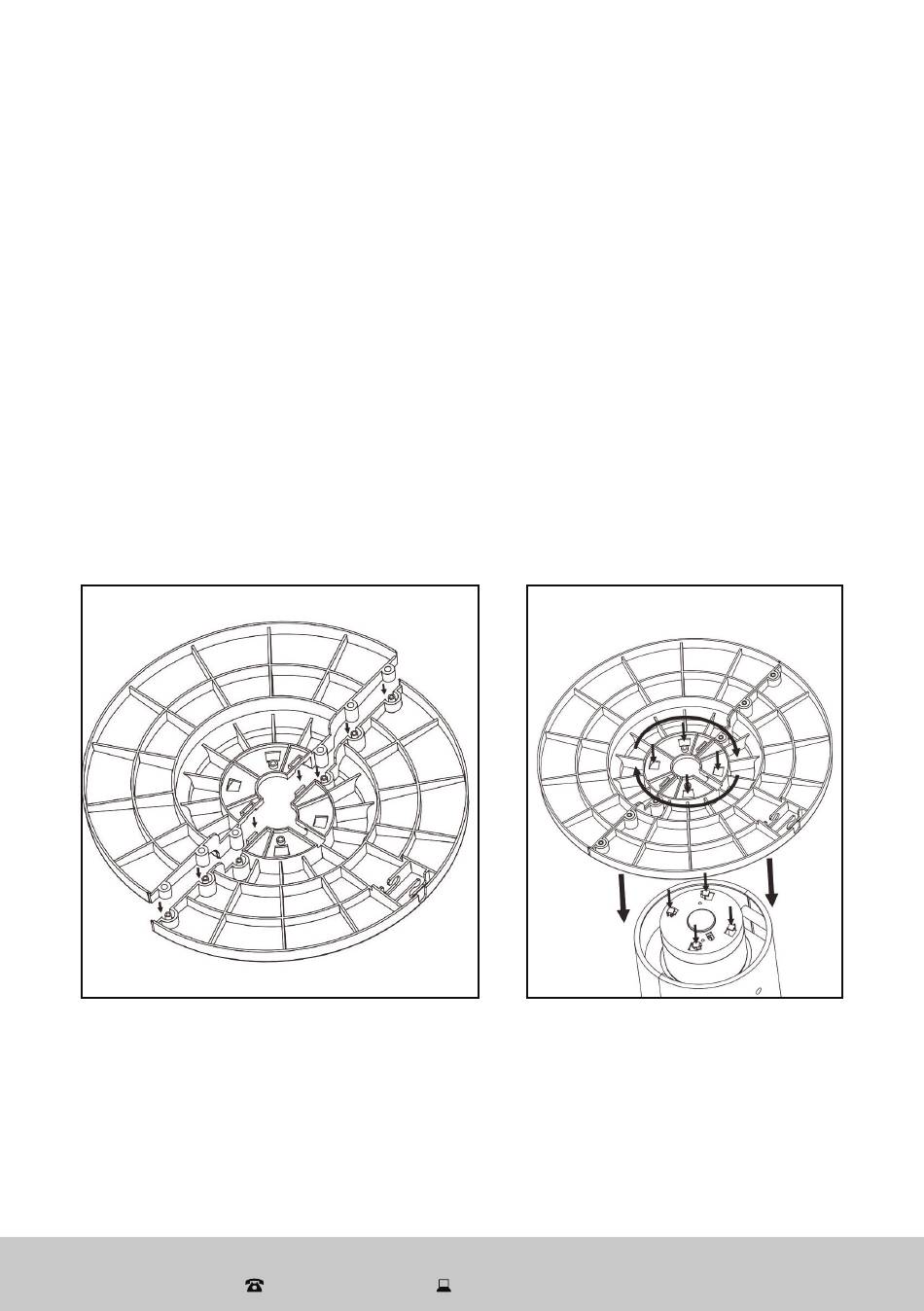

Fig. 1
8
After Sales Support
1300 886 649 |
Fig. 2
