Euromatic PF45-JE Instruction Manual

Euromatic PF45-JE Instruction Manual

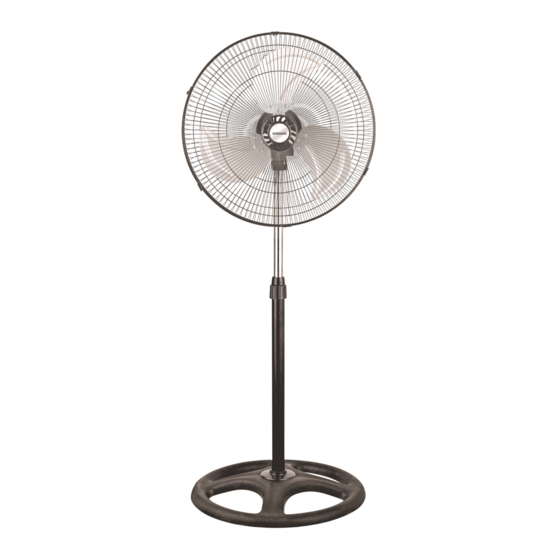

45cm metal pedestal fan

Advertisement

45cm Metal Pedestal Fan
INSTRUCTION MANUAL
Model Number PF45-JE
AFTER SALES SUPPORT
(AU) 1300 886 649 (NZ) 0800 836 761

Advertisement

loading
Need help?

Need help?

Do you have a question about the PF45-JE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Euromatic PF45-JE

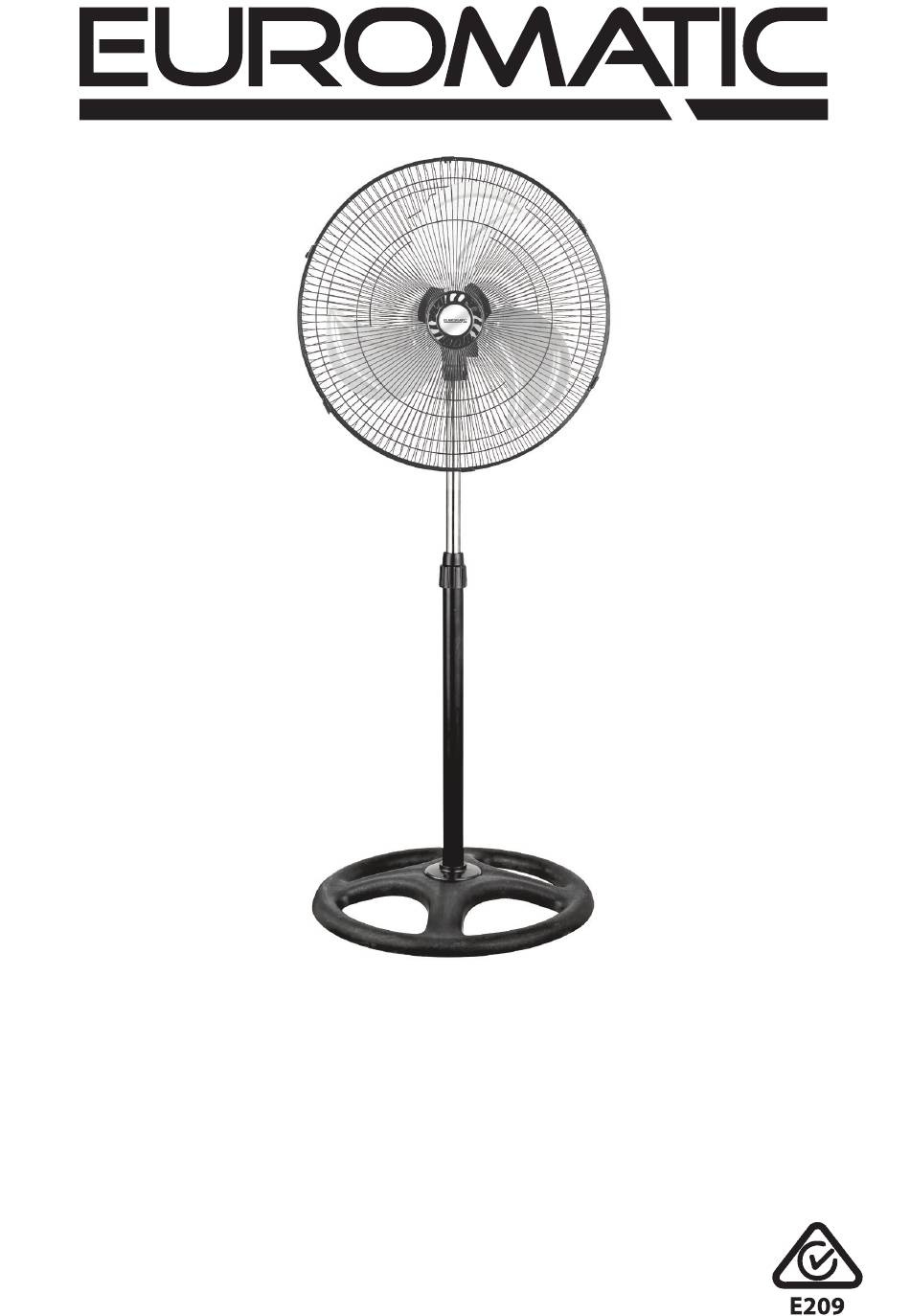

  • Page 1 45cm Metal Pedestal Fan INSTRUCTION MANUAL Model Number PF45-JE AFTER SALES SUPPORT (AU) 1300 886 649 (NZ) 0800 836 761...
  • Page 2: Table Of Contents

    Contents Important Safety Instructions Product Overview Getting Started Instructions Other Useful Information After Sales Support (AU) 1300 886 649 (NZ) 0800 836 761 | info@tempo.org...
  • Page 3: Important Safety Instructions

    Important Safety Instructions READ CAREFULLY AND KEEP FOR FUTURE REFERENCE Read this manual thoroughly before first use, even if you are familiar with this type of product. The safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to. Make sure you understand all instructions and warnings.
  • Page 4 Important Safety Instructions (Cont.) • RCD: Unless your home is already fitted with a residual current device (safety switch), we recommend installing an RCD with a rated residual operating current not exceeding 30mA to provide additional safety protection when using electrical appliances.
  • Page 5: Product Overview

    Product Overview Parts list Safety grilles (front and rear) Fan blade Motor housing with speed control and oscillation knob (at the back, not visible here) Extension pole Height-adjustment collar Lower column Base cover Base NOTE: Due to continued product improvement, images and illustrations in this manual may vary slightly from the product purchased.
  • Page 6: Getting Started

    Getting Started Before first use • Unpacking: This product has been packaged to protect it against transportation damage. Unpack the appliance and keep the original packaging carton and materials in a safe place. It will help prevent any damage if the product needs to be transported in the future, and you can use it to store the appliance when it is not in use.
  • Page 7 Getting Started (Cont.) Assembly • Set the fan base on the floor and remove the screws and nuts. • Place the lower column into its space on the base, aligning the four holes on the flange of the stand with the four holes on the base. Secure the column with the screws and nuts you removed earlier.
  • Page 8: Instructions

    Instructions This pedestal fan is equipped with 3 speeds and an oscillation option. To use the fan, follow the simple instructions below. • Place the fan on a dry, level surface where it will not overturn during use. • Make sure the speed knob at the back of the motor housing is in the OFF position, then insert the power plug into an appropriate electrical outlet.
  • Page 9: Other Useful Information

    Other Useful Information WARNING! • Before cleaning, maintenance or moving the fan, switch off the fan and unplug it from the wall outlet. • Do not immerse the fan in water or other liquids. Do not spray it with liquids. Do not allow water to drip on or into the fan motor housing. •...
  • Page 10 Other Useful Information (Cont.) Technical specifications Power 90W, 220-240v~, 50Hz Fan speeds 3 (Slow - Moderate - Fast) Dimensions (mm) approx. 500 x 500 x 1250 Weight approx. 5.58kg CLASS II - DOUBLE INSULATED APPLIANCE This symbol indicates that the appliance has been designed in such a way that it does not require a safety connection to electrical earth (ground).
  • Page 11 After Sales Support (AU) 1300 886 649 (NZ) 0800 836 761 | info@tempo.org...
  • Page 12 Warranty returns Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product. Product does not work? If you encounter problems with this product, or if it fails to perform to your expectations, make sure to contact our After Sales Support Centre on (AU) 1300 886 649 or (NZ) 0800 836 761 for advice.
