Euromatic FFHV45 Instruction Manual

Euromatic FFHV45 Instruction Manual

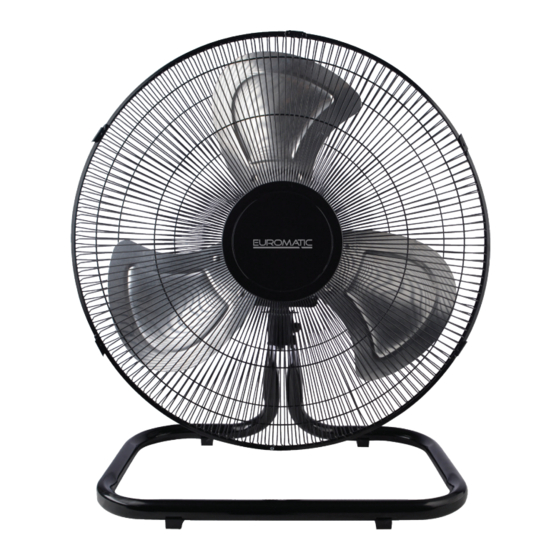

45 cm oscillating floor fan

Advertisement

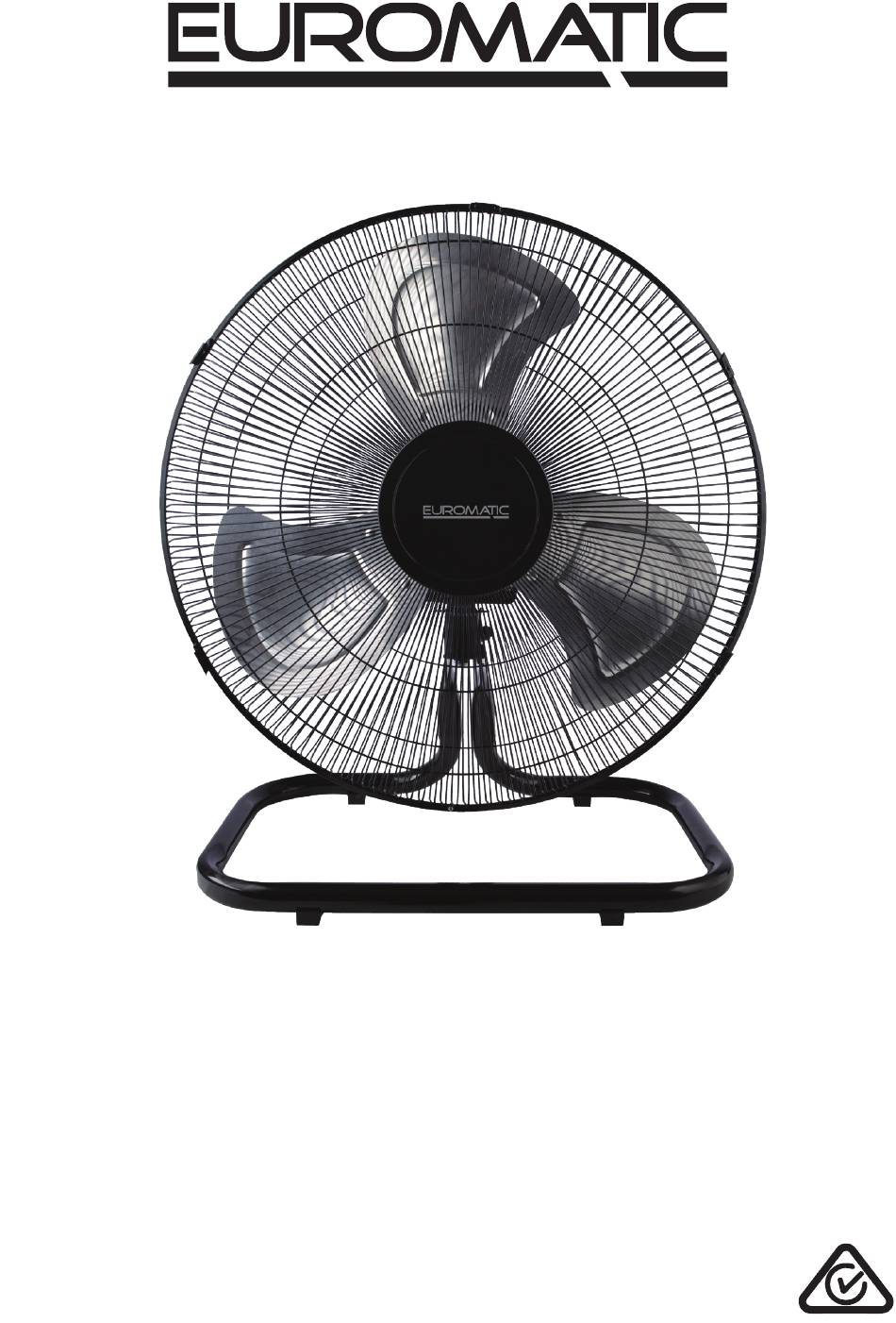

45 cm Oscillating Floor Fan
INSTRUCTION MANUAL
Model Number FFHV45
AFTER SALES SUPPORT
(AU) 1300 886 649 (NZ) 0800 836 761

Advertisement

loading
Need help?

Need help?

Do you have a question about the FFHV45 and is the answer not in the manual?

Questions and answers

Summary of Contents for Euromatic FFHV45

  • Page 1 45 cm Oscillating Floor Fan INSTRUCTION MANUAL Model Number FFHV45 AFTER SALES SUPPORT (AU) 1300 886 649 (NZ) 0800 836 761...
  • Page 2: Table Of Contents

    Contents Important Safety Instructions Product Overview Getting Started Instructions Other Useful Information After Sales Support (AU) 1300 886 649 (NZ) 0800 836 761 | tempo.org/support...
  • Page 3: Important Safety Instructions

    Important Safety Instructions READ CAREFULLY AND KEEP FOR FUTURE REFERENCE Read this manual thoroughly before first use, even if you are familiar with this type of product. The safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to. Make sure you understand all instructions and warnings.
  • Page 4 Important Safety Instructions (Cont.) • RCD: Unless your home is already fitted with a residual current device (safety switch), we recommend installing an RCD with a rated residual operating current not exceeding 30 mA to provide additional safety protection when using electrical appliances.
  • Page 5: Product Overview

    Product Overview Parts list Front grille cap 10 PVC foot grain Front grille 11 Screw TM6*10 Fan blade 12 Nut M2.5 Screw TM5*8 13 Screw BT2.5*10 Documentation Back grille Body (not shown) Speed dial Instruction Manual Oscillation button Warranty Card Tube (base) NOTE: Due to continued product improvement, images and illustrations in this manual may vary slightly from the product purchased.
  • Page 6: Getting Started

    Getting Started Unpacking • This product has been packaged to protect it against transportation damage. Unpack the appliance parts and keep the original packaging carton and materials in a safe place. It will help prevent any damage if the product needs to be transported in the future, and you can use it to store the appliance when it is not in use.
  • Page 7 Getting Started (Cont.) Assembly 1. Attach the rear net to the fuselage with four TM5*8 screws (Fig. 1) 2. Attach the fan blade to the shaft core with the TM6 *10 screw (Fig. 2). Fig. 1 Fig. 2 3. Align the front net with the rear net (Fig. 3). Fig.
  • Page 8: Instructions

    Instructions Using the fan This fan is equipped with three speeds and the fan head can be tilted up/down. To use the fan, follow the simple instructions below. Place the fan on a dry, level surface where it will not overturn during use. It is designed for floor use.
  • Page 9: Other Useful Information

    Other Useful Information WARNING! • Before cleaning, maintenance or moving the fan, and before removing a front or rear grille, switch off the fan and unplug it from the wall outlet. • Do not immerse the fan in water or other liquids. Do not spray it with liquids.
  • Page 10 Other Useful Information (Cont.) Service/repair The appliance requires no maintenance and contains no user-serviceable parts. Do not take the motor part apart; do not attempt to repair or modify the fan. Do not operate the fan if its power cord or plug is damaged, or when it is working abnormally.
  • Page 11 Other Useful Information (Cont.) Responsible disposal Packaging materials are recyclable. Please dispose of them responsibly for recycling. At the end of its working life, make the appliance unserviceable by unplugging it from the power outlet and cutting the power cord. Do not throw this appliance out with your household waste.
  • Page 12 Warranty returns Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product. Product does not work? If you encounter problems with this product, or if it fails to perform to your expectations, make sure to contact our After Sales Support Centre on (AU) 1300 886 649 or (NZ) 0800 836 761 for advice.
