Summary of Contents for Euromatic PF360RC-D

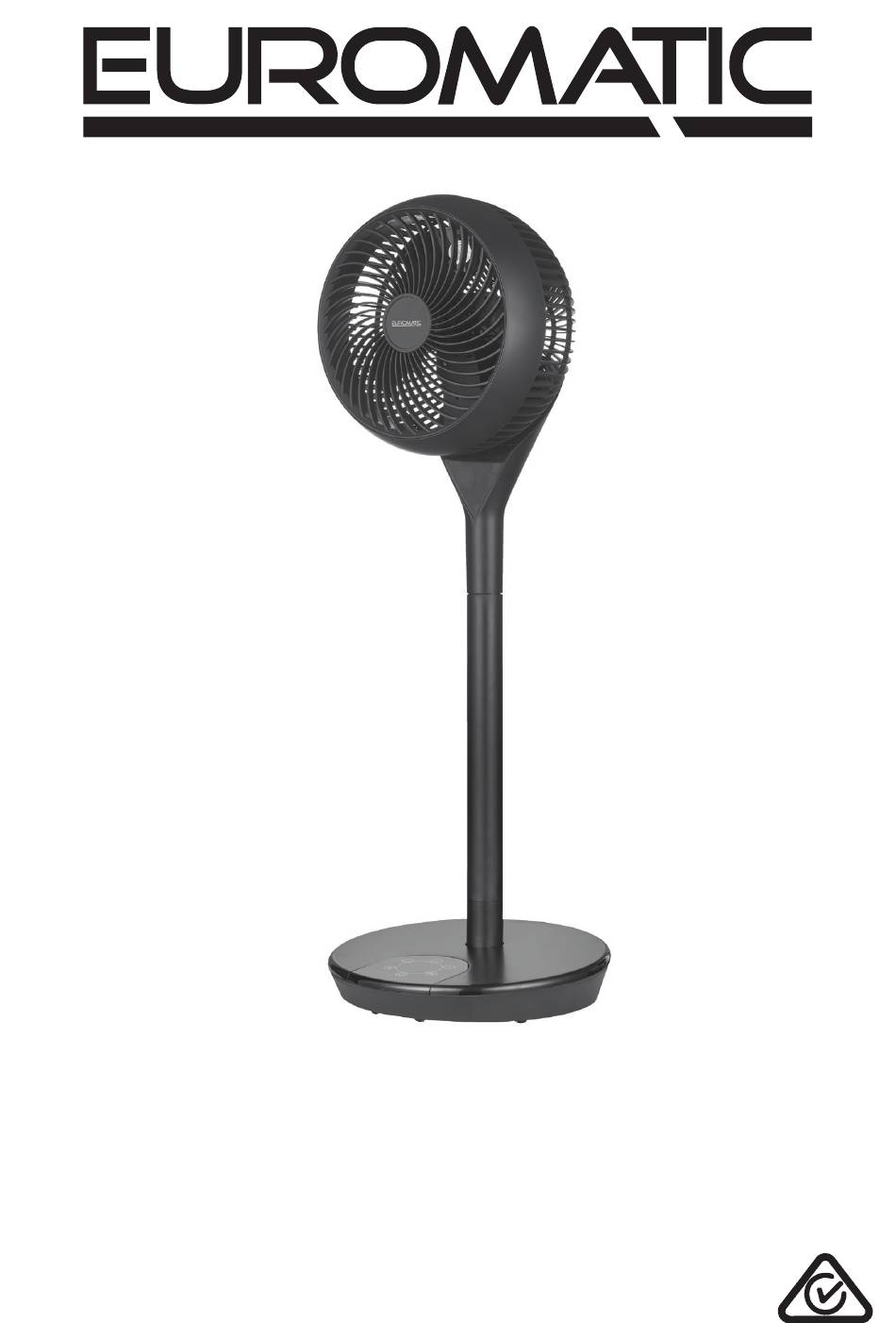

- Page 1 Air Circulator Pedestal Fan INSTRUCTION MANUAL Model Number PF360RC-D AFTER SALES SUPPORT (AU) 1300 886 649 (NZ) 0800 836 761...
-
Page 2: Table Of Contents
Contents Important Safety Instructions Product Overview Getting Started Instructions FAQs & Troubleshooting Guide Other Useful Information After Sales Support (AU) 1300 886 649 (NZ) 0800 836 761 | info@tempo.org... -
Page 3: Important Safety Instructions
Important Safety Instructions READ CAREFULLY AND KEEP FOR FUTURE REFERENCE Read this manual thoroughly before first use, even if you are familiar with this type of product. The safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to. Make sure you understand all instructions and warnings. - Page 4 Important Safety Instructions (Cont.) • WARNING! Do not leave unattended during use! Always switch it off and unplug when not in use, if left unattended, and before cleaning and storing. • Guard removal: Ensure the fan is disconnected from the power supply before removing a guard (grille).
- Page 5 Important Safety Instructions (Cont.) Free airflow: Ensure nothing is blocking the airflow outlet and air intake grilles. Do not insert foreign objects into any opening as this may cause electric shock and/or a fire hazard. • WARNING! Do NOT use the fan in the following areas or circumstances: - near an open flame, a hot burner, oven or other source of high heat - outdoors or in areas of high humidity without suitable ventilation (such as in a bathroom, laundry area) or near a sink, washer, pool or any source...
-
Page 6: Product Overview
Product Overview Scope of delivery Pedestal fan (front/side view) Front guard (safety grille) Fan blade Remote control and holder Control panel (see page 8) Rear guard (safety grille) Handle Stand post Base Power supply cord and plug Pedestal fan (rear/side view) NOTE: Due to continued product improvement, images and illustrations in this manual may vary slightly from the product purchased. -
Page 7: Getting Started
Getting Started Before first use • Unpacking: This product has been packaged to protect it against transportation damage. Unpack the appliance and keep the original packaging carton and materials in a safe place. It will help prevent any damage if the product needs to be transported in the future, and you can use it to store the appliance when it is not in use. -
Page 8: Instructions
Instructions Remote control and control panel operation POWER button: Press to switch the fan on or to standby. [ + ] / [ – ] buttons: When using the remote control, use the [ + ] and [ – ] buttons to select a wind speed from 1 to 12. WIND SPEED button: When using the control panel, press the WIND SPEED button to select a wind speed from 1 to 12. - Page 9 Instructions (Cont.) 3D (360°) and left/right oscillation WARNING! Never attempt to touch a fan blade, or insert an object through the safety grilles during operation – risk of injury! After Sales Support (AU) 1300 886 649 (NZ) 0800 836 761 | info@tempo.org...
- Page 10 Instructions (Cont.) Place the fan on a level, even floor surface (if assembled as a pedestal fan) or a level tabletop (if assembled as a table fan). Operation steps are explained on page 8. When using the air circulator fan, keep the following points in mind: When using air conditioning When using an air conditioner in equipment, the fan helps distribute...
-
Page 11: Faqs & Troubleshooting Guide
FAQs & Troubleshooting Guide CAUTION! Always switch off and disconnect the appliance from the power supply before attempting any maintenance or cleaning the fan. If your fan fails to operate, or you experience any other problem with the appliance, check in the table below for solutions to common problems. If none of the advice offered can help you solve the problem, please contact our after sales support centre for advice or to arrange a service. -
Page 12: Other Useful Information
Other Useful Information WARNING! • Before cleaning, maintenance or moving the fan, and before removing a front or rear grille, switch off the fan and unplug it from the wall outlet. • If the motor is hot, wait until it has cooled completely before cleaning. •... - Page 13 Other Useful Information (Cont.) Blade cleaning Unscrew the set screw at the front cover (guard). Remove the front cover, turning it in anticlockwise direction. Use a vacuum cleaner crevice nozzle to remove dust. Use a soft cloth to wipe the blade and areas you cannot reach with the vacuum cleaner. To reinstall the front cover, make sure the lug of the front cover (guard) locks the rear cover, then screw the two pieces together.
- Page 14 Other Useful Information (Cont.) Battery replacement The remote control is powered by a CR2025 3V button cell. When the battery needs replacing, insert a new one of the same type and size following the instructions below: • Unscrew the screw that secures the battery compartment. •...
- Page 15 Other Useful Information (Cont.) Technical specifications Power 30W, 220-240V ~, 50–60Hz Fan speeds Operation modes 4 (Normal, Natural, Sleep, Eco) Dimensions (mm) approx. 890(H) x 320(L) x 320(W) Weight approx. 2.8kg CLASS II - DOUBLE INSULATED APPLIANCE This symbol indicates that the appliance has been designed in such a way that it does not require a safety connection to electrical earth (ground).
- Page 16 Warranty returns Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product. Product does not work? If you encounter problems with this product, or if it fails to perform to your expectations, make sure to contact our After Sales Support Centre on (AU) 1300 886 649 or (NZ) 0800 836 761 for advice.
