8.3.4 Calibration buttons and external power plug

Pressing calibration button (4. picture 18) rotates fertilizer / seed / small seed feeding rollers for
the calibration test. Under the buttons there is a 3-pin plug which can give max 5 A power. You
can use this for example for extra work light installations.

8.3.5 Transmission cassette, fertilizer

Transmits power from motor to fertilizer feeding shaft. Cassettes (5. picture 18) must be on the
same way on both sides of the machine.

8.3.6 Transmission cassette, seed

Transmits power from motor to seed feeding shaft. Cassettes (6. picture 18) must be on the same
way on both sides of the machine.

8.3.7 Calibration troughs

Two-piece calibration troughs (7. picture 18) can only be emptied from the left side of the
machine. Turn calibration lever to calibration mode and you can remove the troughs.

9. SEEDING DEPTH ADJUSTMENT

Coulters have been installed in sledges, where the adjusting wheels in the front measure the
coulter working depth. Each wheel determines the working depth of the two coulters in the sledge.
When installing the wheel adjustment hooks into the lowest notches, the maximum working depth
is achieved. In the highest notches can be again sown almost to the field surface.
2.
1.

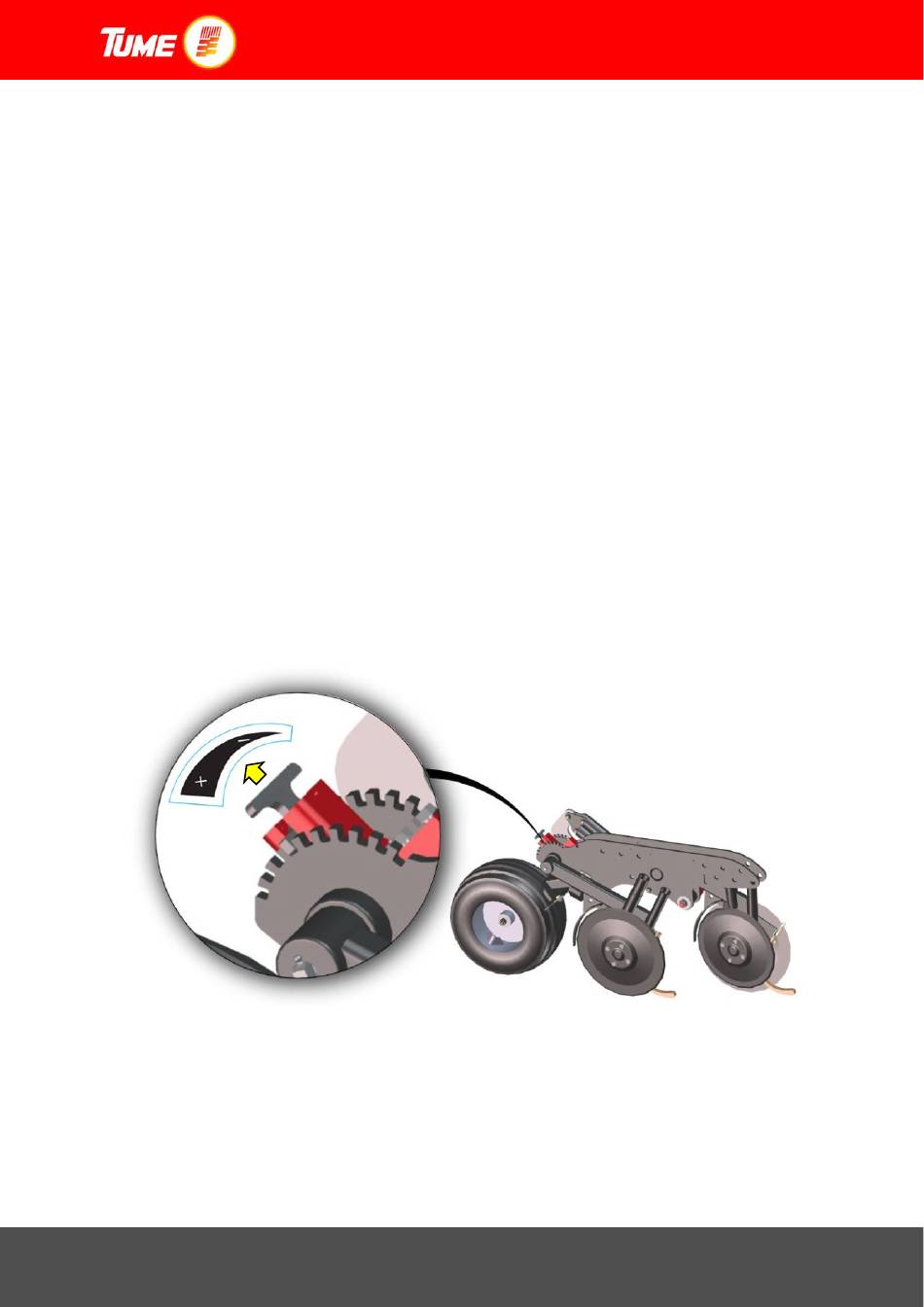

Picture 19. Seeding depth adjustment is done with quick latches which are in the front edge of
each sledge. Remember to adjust each coulter sledge.
1. Pull from T-lever
2. Move lever to a slot you want. Make sure it locks to its place.
Seeding depth increases when lever is turned forward and decreases when lever is turned
backwards. Adjustment can only be made when wheel is off from the ground. You can make
turning the lever easier by pressing the wheel down at the same time.
