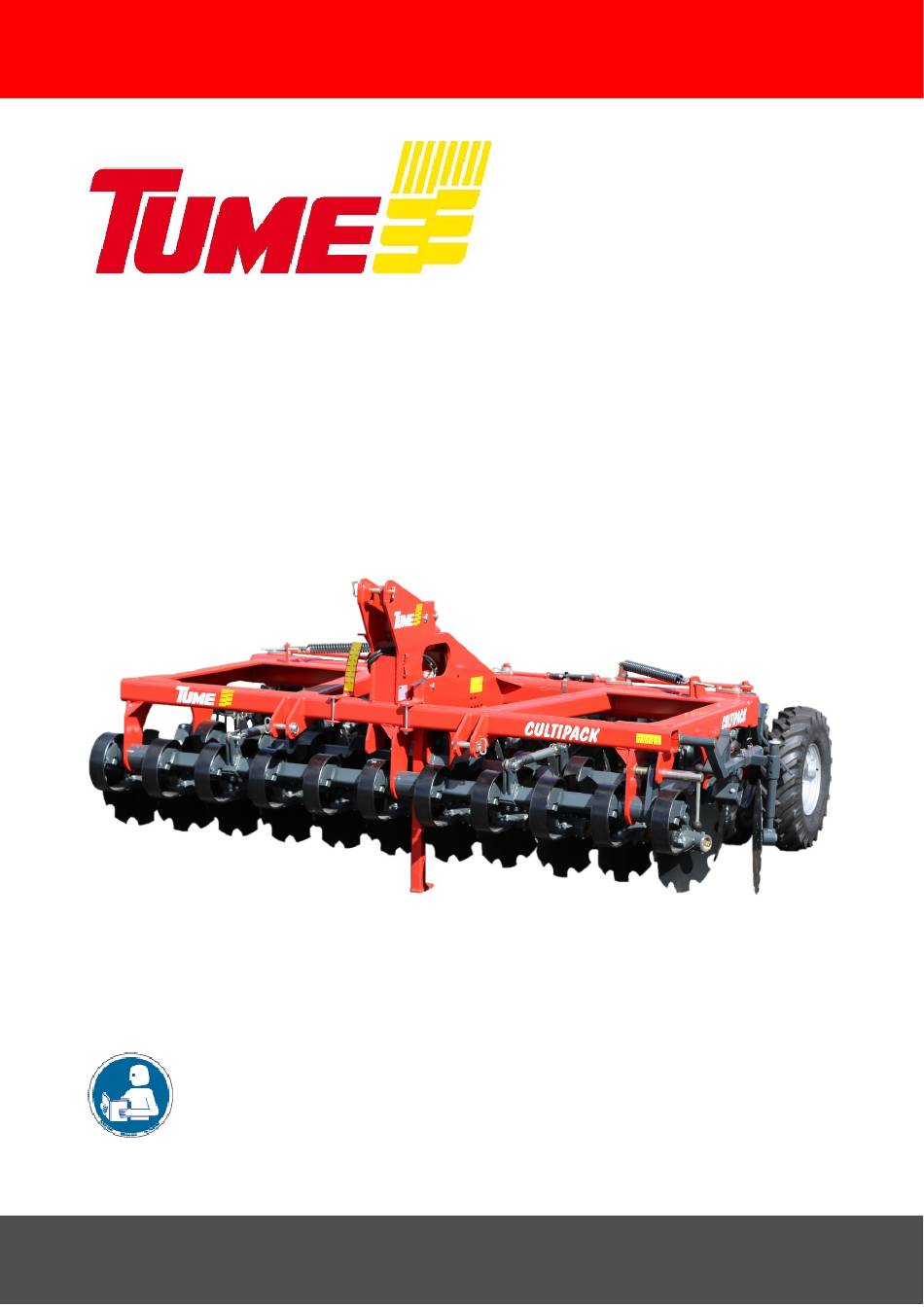

- Page 1 98707004 C 3/2018 CultiPack Operator’s Manual Read this manual before operating the machine Starting from serial AH-52872 onwards Translation...
- Page 2 Name and address of person authorized to compile a technical file: Name: Heimo Valli Address: Sudenkorventie 1, FI-14200 Turenki Hereby declares that Disc cultivators TUME CultiPack 3001 and 4001 Serial number ___________________ • are in compliance with the applicable decrees of the Machine Directive (2006/42/EC) and in addition declares, that •...
-
Page 3: Table Of Contents
Operating the cultivator ....................17 Transferring the cultivator ..................17 Tilling ........................17 Operating the cultivator in combination with a Tume CultiPlus hybrid cultivator ..18 Service, maintenance and repair of the CultiPack cultivator ........19 Lubrication ......................19 Other servicing and maintenance ............... 20 Repairs ....................... -
Page 4: To The Machine Operator And Maintenance Personnel
In this manual “left” and “right” refer to the respective side of the machine as viewed in the working direction from the rear of the machine. Tume-Agri Oy develops its products continuously and reserves all rights to make product alterations without prior notification. Tume-Agri Oy is not required to make retrospective changes to its products other than repair work under the scope of warranty. - Page 5 To avoid having to go between the cultivator and the tractor when hitching, we recommend that the drawbars and push bar of the tractor should be equipped with a quick hitch device. Ensure that the cultivator is correctly and securely attached to the tractor. Use only high-quality ring cotters.
-
Page 6: Purpose Of Use And Features Of The Cultivator
Never reverse with the cultivator lowered – always raise the lifter before reversing! The draw pin built onto the cultivator is designed for towing a Tume fertilizer seed drill equipped with a Tume multi-purpose drawbar. The working load limits for the draw pin are presented below in this manual. -
Page 7: Hitching The Cultivator To The Tractor
Use of a relatively high driving speed of 10 – 15 km/h typically gives the best results. 4. Hitching the cultivator to the tractor Tume CultiPack requires a normal ISO 730-1 category 2 compliant 3-point hitch and an ISO 5675 compliant dual-function ½ inch hydraulic power take off connection. -
Page 8: Cultivator Adjustments
Hitching to the tractor is done in the normal manner. Due to the oval shape of the drawbar fastening pin holes, washers must be installed under the ring cotters. The final hitching stages include connecting the hydraulic hoses and raising the support leg. - Page 9 The disc working depth adjustment is made by rotating the square disc shafts using the hydraulic cylinder. Figure 2. The working depth is adjusted by turning the square disc shafts. The figure shows the transport position. The maximum working depth is set by first limiting the stroke length of the working depth adjustment cylinder.
-
Page 10: Adjusting The Weight And Adding Extra Weights
The limit pin limits the cylinder stroke length, which in turn adjusts the working depth. Once the setting is made, the hydraulic cabin controls cannot exceed this chosen working depth. If necessary, the working depth can, however, be reduced hydraulically via the cab during tilling. -
Page 11: Lateral Adjustment Of The Front Disc Row
Figure 5. Additional weights can be inserted in the front beam of the cultivator. 5.2 Lateral adjustment of the front disc row Adjusting the working depth of the Tume CultiPack cultivator by rotating the square disc attachment shaft at the same time also changes the angle of contact of the discs with the ground to some extent. -
Page 12: Adjusting The Furrow Leveller - Left Furrow Leveller
Lateral adjustment scale Adjusting screw Plate edge Figure 6. Lateral adjustment of the front disc row. Do not go beneath the cultivator when carrying out the adjustment while it is raised on the hydraulic lifter! Turn off the tractor engine and engage the hand brake before beginning work in the danger area of the tractor and cultivator. - Page 13 If adjustment is needed, loosen the two bolts (see Figure 7 “Levelling disc travel direction adjustment”), adjust slightly in the direction of travel and lock firmly in the new position. Levelling disc travel direction adjustment Ploughing and height position adjustment Figure7.
-
Page 14: Adjusting The Furrow Leveller - Right Furrow Leveller
5.4 Adjusting the furrow leveller – right furrow leveller The right furrow leveller has been factory-set and does not normally need changing. See Figure 9. Working height Furrow leveller tines adjustment Furrow leveller raising lever Lubrication point Figure 9. Right furrow leveller. The working height and travel direction positions can, however, be adjusted if necessary. -
Page 15: Adjusting The Wheel Scrapers
6 Using the cultivator’s draw pin 6.1 Draw pin use and structure The CultiPack cultivator comes equipped with a draw pin suitable for towing trailed Tume seed drills and fertilizer seed drills equipped with a multi-purpose drawbar. See Figure Lock pin locking bar... -
Page 16: Unhitching A Seed Drill From The Cultivator
Working load limits of the draw pin The draw pin is intended for towing Tume seed drills and fertilizer seed drills that are equipped with a multi-purpose drawbar. Working load limits at the end of the seed drill drawbar: Tensile load backwards at a 0–45 degree lateral angle:... -
Page 17: Operating The Cultivator
N.B.! Always raise the cultivator on the lifter before reversing! 7.2 Tilling The CultiPack cultivator can be used solo or, using a Tume multi-purpose drawbar, in combination with a Tume seed drill or fertilizer seed drill to enable both seedbed preparation and sowing in a single pass. -
Page 18: Operating The Cultivator In Combination With A Tume Cultiplus Hybrid Cultivator
Detailed instructions on hitching and operation are provided in the Tume CultiPlus hybrid cultivator operator’s manual. If the CultiPack cultivator unit is used as a Tume CultiPlus hybrid module, the rear wheels of the cultivator must be locked straight. A locking kit is available for this purpose as extra... -
Page 19: Service, Maintenance And Repair Of The Cultipack Cultivator
9 Service, maintenance and repair of the CultiPack cultivator 9.1 Lubrication The Tume CultiPack 3001 and 4001 cultivator models have a total of 31 and 41 grease nipples respectively. See Figures 12 – 15. Figure 12. Lubrication points A-C. Lubrication point... -
Page 20: Other Servicing And Maintenance
• Ensure correct air pressure of the support wheels (1.5–2.0 bar). Add or reduce pressure as necessary. • Replace worn or damaged parts immediately. Use original Tume parts. • Wash and grease the cultivator at the end of the operating season. Do not aim pressure washer jets at bearings (support wheel and disc bearings) •... -
Page 21: Repairs
The cultivator construction may not be altered without the prior written permission of Tume-Agri Oy. If the structure is altered without prior permission Tume-Agri Oy shall not be liable for the safety of the cultivator’s construction and the manufacturer's warranty granted for the cultivator will be voided. - Page 22 TUME-AGRI OY PL 77 14201 TURENKI FINLAND TEL. 0207 433 060 TEL. (int.) +358 207 433 060 FAX 03 6882305 FAX (int.) +358 3 6882305 www.tumeagri.fi...
