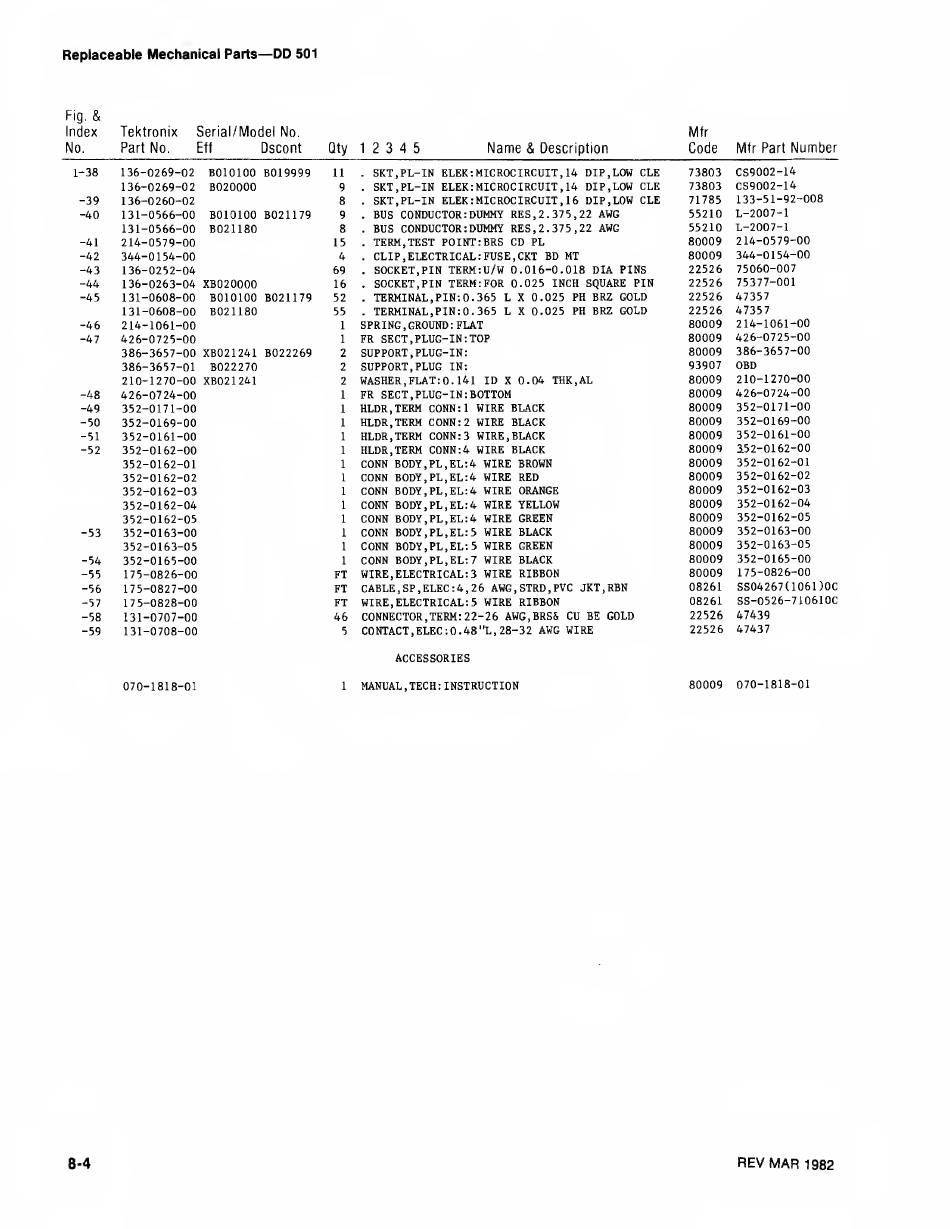

Tektronix DD 501 Instruction Manual page 68

Replaceable Mechanical
Parts
—
DD
501
Fig.
&
Index
No.
Tektronix Serial/Model No.
Part No.
Eff
Dscont Qty
1
2 3 4 5
Name
&
Description
Mfr
Code Mfr
Part
Number
1-38
136-0269-02
BOlOlOO B019999
11
.
SKT.PL-IN
ELEK;
MICROCIRCUIT,
14
DIP,
LOW CLE 73803 CS9002-14
136-0269-02
B020000
9
.
SKT,PL-IN ELEK:
MICROCIRCUIT,
14
DIP, LOW CLE 73803 CS9002-14
-39 136-0260-02
8
.
SKT,PL-IN ELEK:MICR0CIRCUIT,16
DIP,
LOW CLE 71785
133-51-92-008
-40
131-0566-00
BOlOlOO B021179
9
.
BUS CONDUCTOR: DUMMY RES,
2.
375, 22
AWG
55210
L-2007-1
131-0566-00 B021180
8
.
BUS CONDUCTOR: DUMMY
RES,
2.
375, 22
AWG 55210 L-2007-1
-41 214-0579-00
15
.
TERM, TEST
POINT:BRS
CD PL
80009
214-0579-00
-42
344-0154-00
4
.
CLIP, ELECTRICAL: FUSE, CKT BD MT
80009
344-0154-00
-43 136-0252-04
69
.
SOCKET, PIN
TERM:U/W 0.016-0.018 DIA PINS 22526
75060-007
-44 136-0263-04 XB020000
16
.
SOCKET, PIN TERM:FOR
0.025 INCH SQUARE PIN
22526
75377-001
-45 131-0608-00 BOlOlOO B021179
52
.
TERMINAL, PIN:0. 365 L X 0.025
PH BRZ GOLD 22526 47357
131-0608-00
B021180
55
.
TERMINAL, PIN:0.
365 L X 0.025 PH BRZ GOLD 22526 47357
-46 214-1061-00
1
SPRING
,
GROUND
:
FLAT
80009
214-1061-00
-47 426-0725-00
1
FR SECT, PLUG-IN: TOP 80009
426-0725-00
386-3657-00 XB021241 B022269
2
SUPPORT, PLUG-IN: 80009
386-3657-00
386-3657-01
B022270
2
SUPPORT, PLUG
IN:
93907 OBD
210-1270-00 XB021241
2
WASHER, FLAT
:0.
141
ID
X
0.04 THK,AL 80009
210-1270-00
-48 426-0724-00
1
FR SECT, PLUG-IN: BOTTOM
80009
426-0724-00
-49
352-0171-00
1
HLDR,TERM
CONN:
1
WIRE BLACK 80009
352-0171-00
-50
352-0169-00
1
HLDR,TERM CONN:
2
WIRE BLACK
80009
352-0169-00
-51 352-0161-00
1
HLDR,TERM
CONN:
3
WIRE, BLACK 80009
352-0161-00
-52 352-0162-00
1
HLDR,TEEM
CONN: 4
WIRE BLACK
80009
352-0162-00
352-0162-01
1
CONN BODY,
PL, EL:
4 WIRE BROWN
80009
352-0162-01
352-0162-02
1
CONN BODY, PL, EL: 4
WIRE
RED
80009
352-0162-02
352-0162-03
1
CONN
BODY, PL, EL: 4
WIRE ORANGE
80009
352-0162-03
352-0162-04
1
CONN BODY,
PL, EL: 4
WIRE YELLOW
80009
352-0162-04
352-0162-05
1
CONN BODY,
PL, EL: 4
WIRE GREEN 80009
352-0162-05
-53 352-0163-00
1
CONN BODY, PL, EL:
5
WIRE BLACK 80009
352-0163-00
352-0163-05
1
CONN BODY, PL,
EL: 5
WIRE GREEN
80009
352-0163-05
-54
352-0165-00
1
CONN BODY, PL, EL:
7
WIRE BLACK 80009
352-0165-00
-55 175-0826-00
FT
WIRE, ELECTRICAL:
3
WIRE RIBBON 80009
175-0826-00
-56 175-0827-00 FT
CABLE,SP,ELEC:4,26 AWG,STRD,PVC JKT,RBN
08261 SS04267(1061)0C
-57 175-0828-00 FT WIRE, ELECTRICAL:
5
WIRE RIBBON 08261
SS-0526-710610C
-58 131-0707-00 46
CONNECTOR, TERM: 22-26 AWG,BRS& CU
BE
GOLD 22526 47439
-59 131-0708-00
5
CONTACT, ELEC
:0.
48
"L,
28-32 AWG WIRE
22526 47437
ACCESSORIES
070-1818-01
1
MANUAL, TECH: INSTRUCTION 80009
070-1818-01
8-4
REV MAR
1982
