Tektronix DD 501 Instruction Manual page 51

DD
501

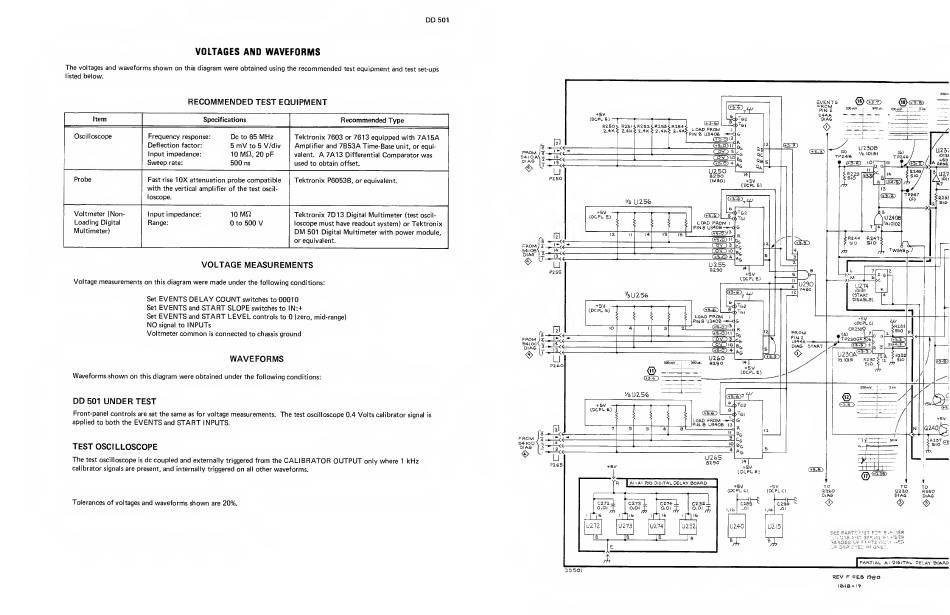

VOLTAGES AND WAVEFORMS
The
voltages
and waveforms shown
on
this
diagram were obtained
using the
recommended
test
equipment
and
test set-ups
listed
below.
RECOMMENDED TEST EQUIPMENT
Item
Specifications
Recommended
Type
Oscilloscope Frequency
response:
Dc
to
65 MHz
Deflection
factor:
5
mV
to
5 V/div
Input impedance: 10MJ2,
20pF
Sweep
rate:
500
ns
Tektronix 7603 or 7613 equipped with
7A15A
Amplifier and
7B53A
Time-Base
unit,
or
equi-
valent.
A
7A13
Differential
Comparator was
used to obtain
offset.
Probe
Fast rise
10X
attenuation probe compatible
with the
vertical amplifier of the test oscil-
loscope.
Tektronix P6053B,
or equivalent.
Voltmeter (Non-
Loading
Digital
Multimeter)
Input impedance:
10MJ2
Range:
0 to
500 V
Tektronix 7D13
Digital Multimeter
(test oscil-
loscope must have readout system)
or
Tektronix
DM
501 Digital Multimeter with power module,
or equivalent.
VOLTAGE MEASUREMENTS
Voltage measurements on
this diagram
were made
under the following conditions:
Set
EVENTS DELAY COUNT
switches to 00010
Set
EVENTS
and
START SLOPE
switches to IN;-t
Set
EVENTS
and
START LEVEL
controls to
0 (zero,
mid-range)
NO
signal to
INPUTS
Voltmeter
common
is
connected to
chassis
ground
WAVEFORMS
Waveforms shown on
this
diagram were obtained under
the following conditions:
DD
501
UNDER
TEST
Front-panel controls are
set
the same
as
for voltage measurements. The
test oscilloscope 0.4 Volts calibrator
signal is
applied to both
the
EVENTS
and
START
INPUTS.
TEST OSCILLOSCOPE
The
test oscilloscope
is
dc coupled and
externally triggered
from
the
CALIBRATOR OUTPUT
only where
1
kHz
calibrator signals are present, and internally triggered on
all
other waveforms.
Tolerances of
voltages and waveforms shown
are
20%.
DD50I
REV
F f=EB l9eo
IBIS-
IV
