windirect TOTAL CRUNCH EVOLUTION Assembly Instructions Manual page 4

4A
11
10
4B
8
4C
7
7
14
5A

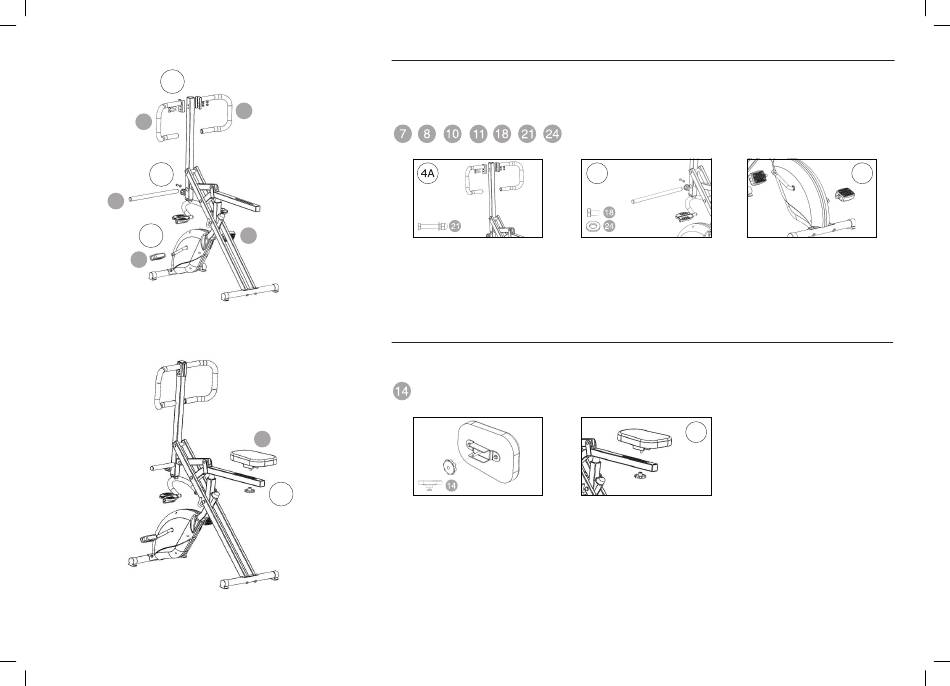

STEP 4
- Fix each handlebar (10 / 11) to the vertical pipe (4A), using the screw 21 (2 pcs.).
- Attach upper foot tube (8) to the vertical pipe (4B), using the screw 18 (1 pc.) and the washer 24 (1 pc.).
- Assemble bike pedals (7) to the main frame tube (4C); tighten the screws with a tool.
PARTS:
x2
STEP 5
- Fix the seat (14) to the seat tube, using the knob (5A). You can adjust its position as per your convenience.
PARTS:
x1
4B
x1
x1
5A
4C
