windirect TOTAL CRUNCH EVOLUTION Assembly Instructions Manual page 3

1C
1
2
3
4
1A
1B
9
2B
2C
13
12
2A
3A
5
6
6
3B

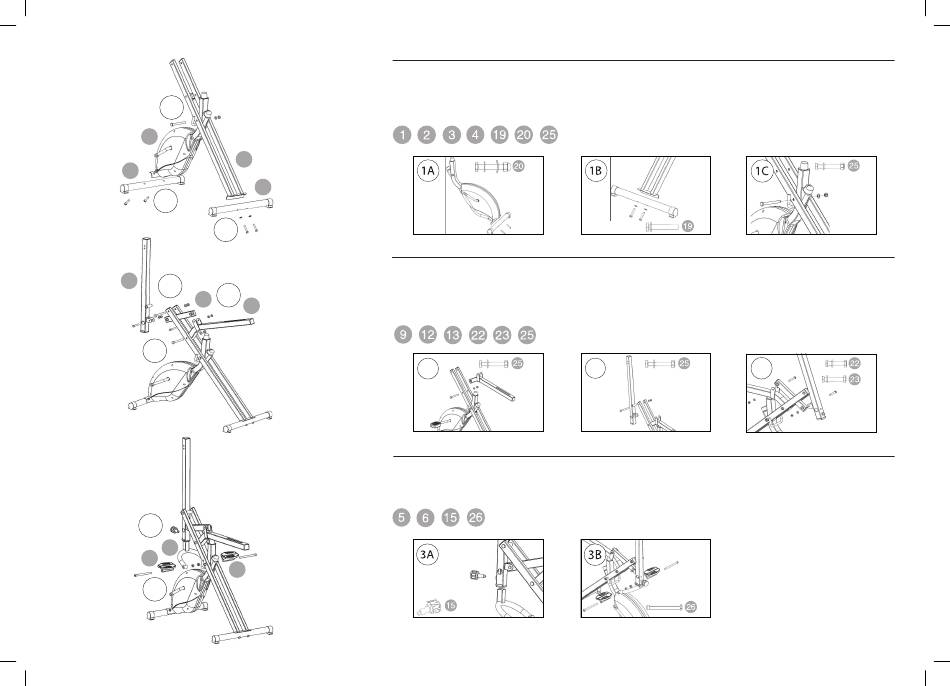

STEP 1
- Fix the front stabilizer (3) to the main frame tube (1) (1A), using the screw 20 (2 pcs.).
- Fix the rear stabilizer (4) to the rear frame pipe (2) (1B), using the screw 19 (2 pcs.).
- Assemble the main frame tube with the rear frame pipe (1C), using the screw 25 (1 pc.).
PARTS:
STEP 2
- Assemble the seat tube (12) to the rear frame pipe (2A), using the screw 25 (1 pc.).
- Assemble the vertical pipe (9) to the rear frame pipe (2B), using the screw 25 (1 pc.).
- Assemble the large piece (13) to the seat tube and the vertical pipe (2C), using the screw 22 (1 pc.) and 23 (1 pc.).
PARTS:
2A
STEP 3
- Fix the foot tube (5) to the vertical pipe (3A), using the knob (15).
- Attach foot tube pedals (6) to the foot tube (3B), using the screw 26 (2 pcs.).
PARTS:
x1
x2
x2
x1 x1
2B
x2
x1
x1
2C
x1
