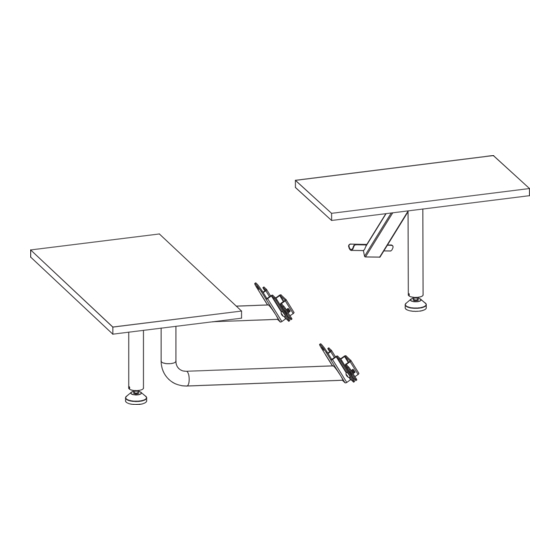

Shelf Kit for STAND-RACE1B
Instruction Manual
SKU: STAND-RACE1SF
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-race1sf
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Related Manuals for Vivo STAND-RACE1SF
Summary of Contents for Vivo STAND-RACE1SF
- Page 1 Shelf Kit for STAND-RACE1B Instruction Manual SKU: STAND-RACE1SF Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-race1sf GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury.
-
Page 3: Package Contents
PACKAGE CONTENTS A (x1) B (x1) C (x2) CPU Shelf Side Shelf CPU Arm D (x1) E (x1) F (x1) CPU Center Side Shelf Side Shelf Post Center Post G (x2) Arm Bracket S-C (x4) T-A (x1) S-A (x16) S-B (x2) M8x16mm 5mm Allen ST4.8x13mm... -
Page 4: Assembly Steps
ASSEMBLY STEPS STEP 1 Take note of the pilot hole patterns on CPU Shelf (A) and Side Shelf (B). Identify CPU Shelf for use below. CPU Shelf Side Shelf Secure CPU Center Post (D) to underside of CPU Shelf (A) using ST4.8x13mm Screws (S-A) and a Phillips screwdriver. - Page 5 STEP 2 Secure CPU Arms (C) to the underside of CPU Shelf (A) using ST4.8x13mm Screws (S-A) and a Phillips screwdriver.
- Page 6 Use 5mm Allen Wrench (T-A) to loosen the two screws on the front support frame of your VIVO racing cockpit so that they protrude 5mm from the frame. Line up CPU Arm (C) keyholes with the previously loosened screws and slide into place.
- Page 7 STEP 4 Fasten Arm Brackets (G) to the back of CPU Arms (C) using M8x16mm Screws (S-C) and 5mm Allen Wrench (T-A).
- Page 8 STEP 5 Remove the M8x16mm screws from the underside of cockpit’s rear support bar using 5mm Allen Wrench (T-A). Line the Side Shelf Arm (F) on the underside of the rear support bar and re-thread the previously removed screws into the frame. Secure using 5mm Allen Wrench (T-A).
- Page 9 STEP 6 Use a Phillips screwdriver and M6x12mm Screws (S-B) to attach Side Shelf Center Post (E) to Side Shelf Arm (F).
- Page 10 STEP 7 Fasten the Side Shelf (B) to Side Shelf Arm (F) using ST4.8x13mm Screws (S-A) and a Phillips screwdriver.
- Page 11 STEP 8 Adjust the feet on the bottom of the CPU Center Post (D) and the Side Shelf Center Post (E) to support and level the shelves.
- Page 12 AVG. RESPONSE TIME (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
