Summit Doppler™ LifeDop
User Manual
®
ABI Vascular System
L300AC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Summit Doppler LifeDop L300AC and is the answer not in the manual?

Questions and answers

Related Manuals for Cooper Surgical Summit Doppler LifeDop L300AC

Summary of Contents for Cooper Surgical Summit Doppler LifeDop L300AC

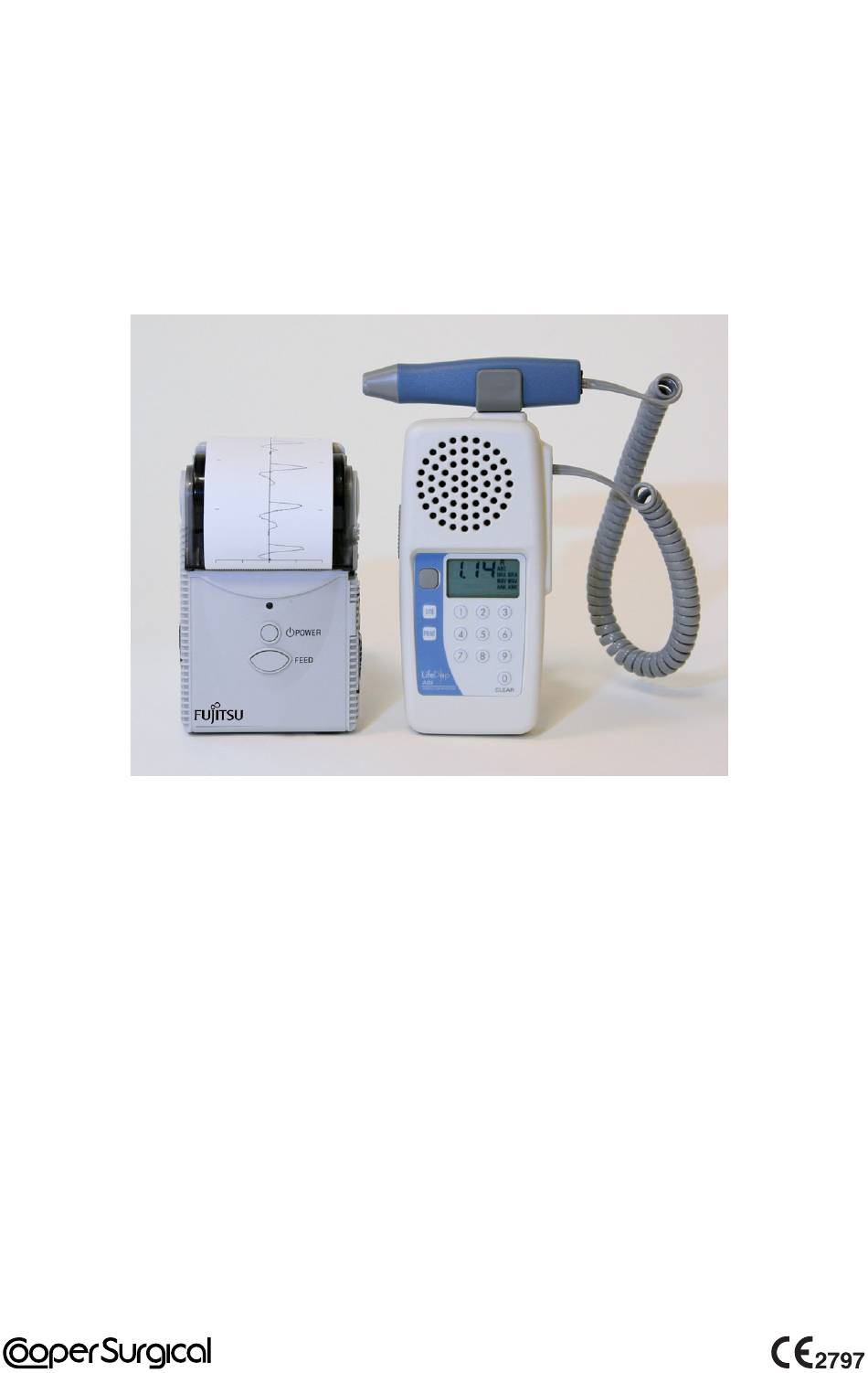

  • Page 1 Summit Doppler™ LifeDop User Manual ® ABI Vascular System L300AC...
  • Page 2 This page left blank intentionally...

  • Page 3: Table Of Contents

    Thank you for choosing Summit Doppler products. We believe you have purchased the finest Doppler on the market today. Your total satisfaction is our highest priority as we strive to continually improve our products and services. Please contact us with any suggestions. We look forward to enjoying a long-term relationship with you! CooperSurgical, Inc.

  • Page 4: Intended Use/Contraindications/Warnings

    CooperSurgical provides general reimbursement information related to the diagnosis of peripheral arterial disease as an overview for our customers. It is important to understand that reimbursement is a complex process and requirements are subject to change without notice. It is the responsibility of the healthcare provider to determine and submit appropriate codes, charges, and modifiers for services that are rendered.

  • Page 5: Safety Of Ultrasound

    In order to preserve, protect and improve the quality of the environment, protect human health and utilize natural resources prudently and rationally – do not dispose of waste electrical or electronic equipment (WEEE) as unsorted municipal waste. Contact local WEEE disposal sites. Safety of Ultrasound The Summit Doppler LifeDop L300 ABI System was designed with physician and patient safety in mind.

  • Page 6: Product Description

    Product Description The LifeDop L300 ABI is a full-featured handheld Doppler designed to serve the needs of clinicians performing the ankle brachial index (ABI) exam. Limb systolic pressures are obtained with a highly sensitive bi-directional ultrasound Doppler probe. Each limb pressure can be stored for calculation of the left and right ABIs.

  • Page 7: Installation And Basic Operation

    Installation and Basic Operation Preparing the Equipment for Use Recharge the printer before use. Plug the probe cable into the main unit, and become familiar with the equipment’s capabilities and limitations by reading the LifeDop and Printer User Manuals prior to use. Connecting the Printer Ensure that the printer is loaded with paper and connect the cable to the LifeDop and printer as shown, with connector tabs down as labeled “THIS SIDE UP”.

  • Page 8: Controls, Indicators & Connectors

    Controls, Indicators & Connectors Probe Connector Volume Headphone Jack On/Off Printer Connector Site Store Waveform Print Numbers Clear On/Off Control Turn the LifeDop L300 ABI on by pressing the On/Off button. LCD indicators show power status. The LifeDop automatically shuts itself off after 5 minutes if it is not being used, or after 20 minutes if a limb pressure or ankle waveform has been saved.
  • Page 9 ABI/Pressure Data Battery Indicator Site Locations Flow Direction Keypad Numerals 0-9 Enter each limb’s systolic pressure data using the numeric keypad. The pressure is stored in the site location shown on the display. Once the pressure is entered the unit automatically advances to the next site location.

  • Page 10: Performing The Abi Examination

    Performing the Ankle Brachial Index (ABI) Examination The ABI for each leg is determined by dividing the ankle pressure by the higher of the two arm pressures. Doppler waveforms from the ankles aid in the diagnosis of PAD and are usually required for reimbursement.
  • Page 11 Right Brachial Artery Pressure 3. Connect the hose from the hand pump to the cuff on the right arm. Apply a small amount of gel over the patient’s brachial artery on the right arm and place the Doppler probe at approximately 45 degrees, pointing in the direction toward the shoulder as shown in Figure 3.
  • Page 12 Right Ankle Waveform 7. Acquire a Doppler signal at either the posterior tibial (PT) or dorsalis pedis (DP) artery as shown below. Start by applying a small amount of gel to the site and tilt the probe at a 45 degree angle, pointing the probe tip toward the calf and knee.
  • Page 13 Right Ankle Pressure 9. Connect the cuff hose to the right ankle cuff. Use either the PT or DP artery to obtain the ankle systolic pressure. Acquire the Doppler signal. Brace your probe hand while inflating the cuff to a pressure 20 mmHg above the occlusion pressure, which is the point at which flow sounds are no longer heard.
  • Page 14 Viewing and Printing the ABI Results 15. The ABI for the left leg is displayed after the L-BRA pressure is entered. The ABI for the right leg can be seen by pressing the SITE key once. ABI for the Right Side 16.

  • Page 15: Interpreting The Examination Results

    Interpreting the Examination Results Ankle Brachial Index The ankle-brachial index (ABI) is determined by dividing the ankle pressure by the higher of the two brachial pressures. A separate ABI is determined for each leg. These calculations are done automatically by the LifeDop L300 ABI. ABI = ankle pressure higher brachial pressure...
  • Page 16 The Doppler waveforms are automatically scaled to a maximum frequency of either 1 KHz, 2 KHz or 4 KHz for optimal waveform height. Markings on the vertical axis are provided every 1 KHz. Printer calibration is not required. Auto-Scaling - 1 KHz, 2 KHz and 4 KHz Blood flow in the direction toward the probe is shown above the baseline.
  • Page 17 Abnormal Ankle Waveforms - Monophasic These waveforms have no reverse flow component and minimal pulsatility. References for the ABI Exam: Human Blood Pressure Determination by Sphygmomanometery: American Heart Association (AHA), 2001 Techniques in Noninvasive Vascular Diagnosis – an Encyclopedia of Vascular Testing; Daigle RJ, Summer Publishing, 2002: 137-148 Olin JW.

  • Page 18: Maintenance And Cleaning

    Maintenance and Cleaning Warnings • The LifeDop is not designed for liquid immersion. Do not soak the Doppler main unit or probes in liquids. Do not use products containing bleach. • The LifeDop is not designed for sterilization processes such as autoclaving, gamma radiation or hydrogen gas.

  • Page 19: Replacing Lifedop ® Batteries

    Periodically (at least annually): Inspect the main unit and probes for signs of cracks or breaks in the mechanical housing. Inspect cables and connectors for signs of wear or failure. The user should discontinue use of the unit with any sign of loss of housing integrity. Contact CooperSurgical for service (800) 444-8456 or +1 (203) 601-9818 for international calls.

  • Page 20: Recharging Printer Batteries

    Recharging Printer Batteries Caution • Use only the battery and AC adapter supplied with the printer. Use of any other battery and or AC adapter is hazardous and may cause damage to the equipment. Warning • Do not connect the printer to the Doppler while the printer is charging. It is recommended that the printer be recharged prior to first use.

  • Page 21: Troubleshooting Problems

    Troubleshooting Problems Warnings • Use alternate equipment in case of unit failure. Call the CooperSurgical Service Department if the probe or main unit malfunctions at (800) 444-8456 or +1 (203) 601-9818 for international calls. • Do not drop or mishandle the LifeDop, probes, aneroid or other accessories. Damage to sensitive electrical components, speakers, cables, transducers or plastic is likely to occur.

  • Page 22: Verification Of Printer Switch Settings

    Printer Not Printing (Error 9) The LifeDop and printer have lost communication. This may be due to a printer jam, paper empty, low printer battery or any of the previously listed printer error codes. To clear the error, lift the paper cover lever, reseat the paper roll and close the cover. If printer communication is re-established, the LifeDop will automatically print the buffered waveform.
  • Page 23 LifeDop Printer Dimensions (h x w x l): 147 x 70 x 35 mm 136 x 84 x 43 mm Weight: 320 grams 280 grams Operating temperature: 10 to 30 °C 0 to 30 °C Operating humidity: 30 to 75 % 20 to 85 % Transport/Storage temp: –20 to 50 °C...
  • Page 24 Application(s): Peripheral Vascular Transducer Model: LifeDop 5 MHz Bi-Dir Operating Mode: Continuous-Wave (cw) ACOUSTIC OUTPUT SPTA.3 SPPA.3 (mW/cm (W/cm Global Maximum Value 0.04 0.37 (Mpa) 0.116 (mW) 15.7 0.016 Associated (MHz) 8.43 8.43 8.43 Acoustic (cm) 0.63 0.63 0.63 Parameter (cm) 0.42 0.42...

  • Page 25: Warranty

    Warranty and Servicing Policy This product is warranted to be free from defects in materials and workmanship for 12 months from the original sale of the device. Product life is specified to be 5 years from manufacture, though the device may be repairable beyond this timeframe. This includes all parts and labor required to repair or replace the unit to original specifications and shipping costs associated with sending the product back to the customer.

  • Page 26: Explanation Of Symbols

    Explanation of Symbols Reorder Number Serial Number Date of Manufacture (located on device) Consult instructions for use Caution LATEX Not made with natural rubber latex Class II Equipment Type B Applied Part Keep Dry Manufacturer Only Caution: U.S. Federal law restricts this device to sale by or on the order of a licensed practitioner In order to preserve, protect and improve the quality of the environment, protect human health and utilize natural resources prudently and rationally –...
  • Page 27 This page left blank intentionally...
  • Page 28 95 Corporate Drive International EMERGO EUROPE EC REP Trumbull, CT 06611 USA Phone: +1 (203) 601-9818 Prinsessegracht 20 Phone: (800) 243-2974 Fax: +1 (203) 601-4747 2514 AP The Hague Fax: (800) 262-0105 www.coopersurgical.com The Netherlands © 2020 CooperSurgical, Inc. L300AC-MANL • Rev. A • 08/20 Made in the USA...
