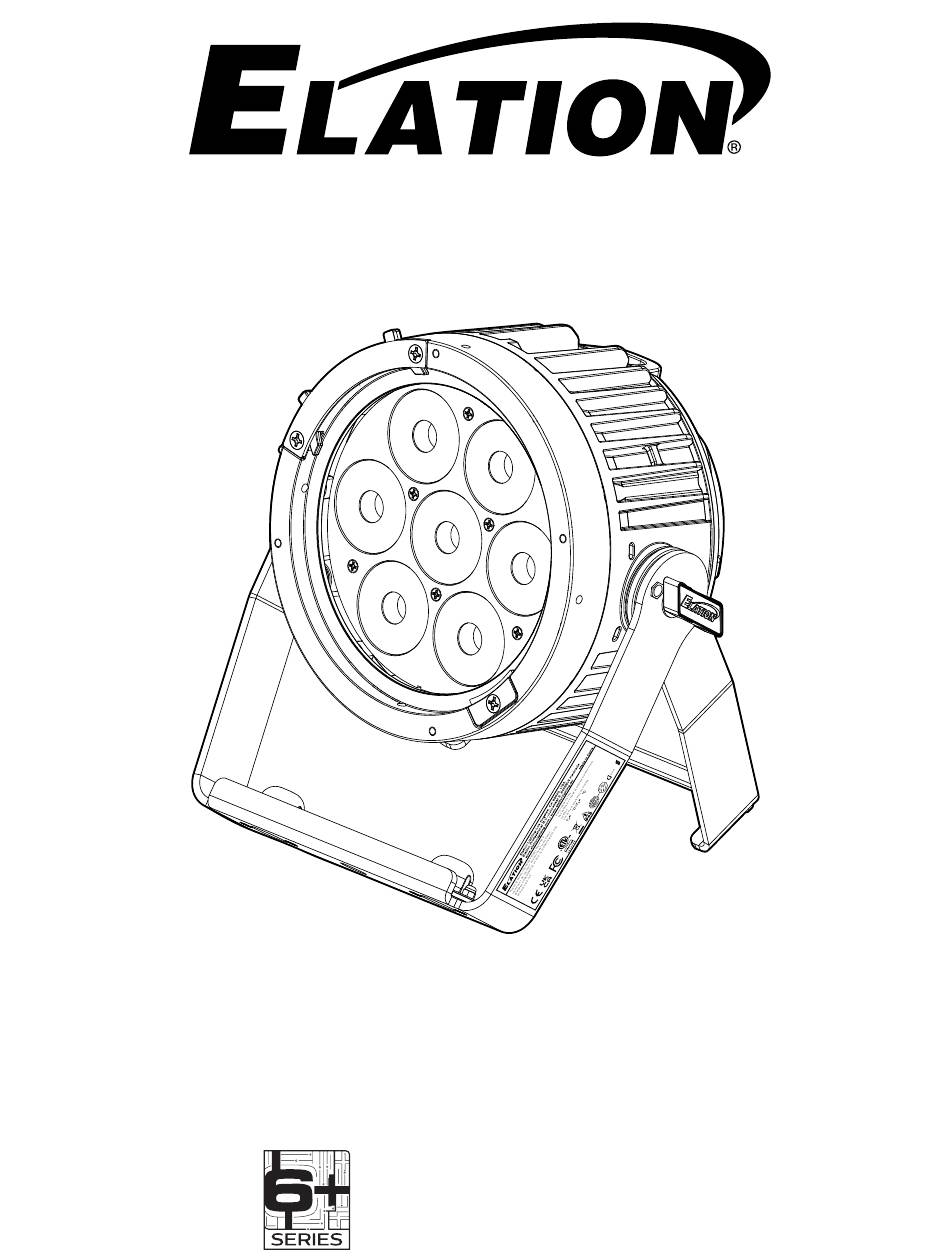

.5 inch
1 inch
1.5 inch
SIX+ PAR S
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6+ Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elation 6+ Series

Summary of Contents for Elation 6+ Series

  • Page 1 .5 inch 1 inch 1.5 inch SIX+ PAR S User Manual...
  • Page 2 Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands +31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000...

  • Page 3: Table Of Contents

    C O N T E N T S General Information IP65 Rated Warranty Returns (USA Only) Safety Guidelines Overview Torque Settings for Screws IP Test Parameters Installation Guidelines Accessory Installation Remote Device Management (RDM) System Menu/Software Updates Dimmer Modes & Curves DMX Traits Emulation DMX Traits Color Temperature Chart...

  • Page 4: General Information

    Please recycle whenever possible. BOX CONTENTS Lense: 22° Power Cable (x1) CUSTOMER SUPPORT Contact ELATION Service for any product related service and support needs. Also visit forums.elationlighting.com with questions, comments, or suggestions. ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | Fax 323-832-9142 | support@elationlighting.com...

  • Page 5: Ip65 Rated

    I P 6 5 R AT E D The International Protection (IP) rating system is commonly expressed as “IP” (Ingress Protection) followed by two numbers (i.e. IP65), where the numbers define the degree of protection. The first digit (Foreign Bodies Protection) indicates the extent of protection against particles entering the fixture, and the second digit (Water Protection) indicates the extent of protection against water entering the fixture.

  • Page 6: Warranty Returns (Usa Only)

    It is the owner’s responsibility to establish the date and place of purchase by acceptable evidence, at the time service is sought. B. For warranty service, send the product only to the Elation Professional factory. All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, Elation Professional will pay return shipping charges only to a designated point within the United States.

  • Page 7: Safety Guidelines

    S A F E T Y G U I D E L I N E S This fixture is a sophisticated piece of electronic equipment. To guarantee smooth operation, it is important to follow all instructions and guidelines in this manual. Elation Professional is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual.
  • Page 8 S A F E T Y G U I D E L I N E S RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET UV RADIATION! FIXTURE EMITS HIGH INTENSITY WAVELENGTH OF ULTRAVIOLET UV LIGHT FROM THE UV COLOR FILTER. WEAR PROPER SKIN...

  • Page 9: Overview

    O V E R V I E W B B r r a a c c k k e e t t A A d d j j u u s s t t m m e e n n t t K K n n o o b b A A d d j j u u s s t t a a b b l l e e M M o o u u n n t t i i n n g g...

  • Page 10: Torque Settings For Screws

    ( ( 1 1 0 0 ± ± 0 0 . . 5 5 / / K K g g f f . . c c m m ) ) CAUTION! DO NOT OVER TORQUE SCREWS AS THIS CAN CAUSE LEAKAGE ISSUES! TO CONFIRM THE IP65 INTEGRITY, TEST FIXTURE USING THE ELATION IP TESTER. CONTACT ELATION SERVICE FOR MORE DETAILS.

  • Page 11: Ip Test Parameters

    Following any repair or maintenance procedure that requires disassembly of the fixture, use Elation’s IP Tester to confirm the IP integrity of the fixture. The air valve is located on the back panel next to the display screen, as shown in the diagram below. Please contact Elation...

  • Page 12: Installation Guidelines

    I N S TA L L AT I O N G U I D E L I N E S FLAMMABLE MATERIAL WARNING Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations.
  • Page 13 I N S TA L L AT I O N G U I D E L I N E S CLAMP INSTALLATION This device features a mounting clamp attachment point built into the mounting bracket, as well as a safety cable attachment point located on the rear face of the fixture above the control panel.
  • Page 14 I N S TA L L AT I O N G U I D E L I N E S FIXTURE INSTALLATION The Elation SIX+ PAR S is fully operational in three different mounting positions, hanging upside-down, mounted sideways on trussing, or set on a flat level surface. Be sure this fixture is kept at least 0.2m (7.9in.) away from any flammable materials (decoration etc.).
  • Page 15 LEDs. This issue is not specific only to ELATION lighting fixtures, it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happening, the guidelines below can prevent any potential damage from occurring if followed.

  • Page 16: Accessory Installation

    A C C E S S O RY I N S TA L L AT I O N - F R O S T L E N S 1. Slide lock levers inward to retract the locking tabs. 2. Install the Frost Lens by angling the bezel groove of the Frost Lens into the tab and levering it into place.
  • Page 17 A C C E S S O RY I N S TA L L AT I O N - G E L F R A M E 1. Align the 4x holes on the Holder with the face of the fixture, and secure it with 4x philips head screws 2.
  • Page 18 A C C E S S O RY I N S TA L L AT I O N - B A R N D O O R 1. Flip open the retaining clip located near 2. Slide the barndoor into place in front of the top of the lens.

  • Page 19: Remote Device Management (Rdm)

    R E M O T E D E V I C E M A N A G E M E N T ( R D M ) NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems.

  • Page 20: System Menu/Software Updates

    DMX OUT DMX IN MAX:100-240V 11A AN ELATION C-LOADER II CAN ALSO BE USED TO UPDATE THE FIXTURE TO THE LATEST SOFTWARE. To order this device, please contact Elation Support for further details. Detailed instructions can be found online at www.elationlighting.com.
  • Page 21 S YS T E M M E N U MAIN MENU OPTIONS / VALUES (Default Settings in BOLD) DMX Address 001 - 512 1CH Dimmer 3CH RGB 9CH RGB Extended 6CH Color 9CH Color & Dimmer 11CH CMY DMX Mode 14CH CMY Extended 14CH Standard 20CH Extended...
  • Page 22 SYSTEM MENU MAIN MENU OPTIONS / VALUES (Default Settings in BOLD) Current Run Time Time Total Run Time Last Run Time Current Temperature Max Resettable Information DMX Values Green Product IDs RDM UID Error Logs Fixture Errors Software Version Vx.x Aria Activation On / Off Red 000 - 255...

  • Page 23: Dimmer Modes & Curves

    D I M M E R M O D E S & C U R V E S DIMMER 100% Time (ms) 0 Sec Rise Time Down Time 0 sec Fade Time 1 sec Fade Time Dimming Curve Ramp Effect Rise Time (ms) Down Time (ms) Rise Time (ms) Down Time (ms) Standard (default) Stage...

  • Page 24: Dmx Traits

    D M X T R A I T S Color Dim. Color Std. Ext. Snap Default Ext. & Dim. Ext. Function 11CH 14CH 20CH Values Value 14CH Dimmer 0-255 Intensity 0 → 100% Dimmer Fine 0-255 Fine Intensity Control Shutter/Strobe 0-31 Shutter closed 32-63...
  • Page 25 D M X T R A I T S Color Dim. Color Std. Ext. Snap Default Ext. & Dim. Ext. Function 11CH 14CH 20CH Values Value 14CH Color Open 1-179 Virtual Swatch Book (See Table) Color Scroll 180-201 Clockwise Fast → Slow 202-207 Stop 208-229 Counter-clockwise Slow →...
  • Page 26 D M X T R A I T S Color Dim. Color Std. Ext. Snap Default Ext. & Dim. Ext. Function 11CH 14CH 20CH Values Value 14CH Control 0-99 Idle Refresh Rate (Hz) 1000 1010 1020 1030 1040 1050 1060 1070 1080 1090...
  • Page 27 D M X T R A I T S Color Dim. Color Std. Ext. Snap Default Ext. & Dim. Ext. Function 11CH 14CH 20CH Values Value 14CH 1270 1280 1290 1300 1310 1320 1330 1340 1350 1360 1370 1380 1390 1400 1410 1420...

  • Page 28: Emulation Dmx Traits

    E M U L AT I O N D M X T R A I T S Default 6 ch 7 CH 8 CH 12 CH Value Function Snap Value 0-255 0 → 100% Green 0-255 0 → 100% Blue 0-255 0 →...
  • Page 29 E M U L AT I O N D M X T R A I T S Default 6 ch 7 CH 8 CH 12 CH Value Function Snap Value 124-127 RED + AMBER + UV 128-131 GREEN + BLUE + WHITE 132-135 GREEN + BLUE + AMBER 136-139 GREEN + BLUE + UV 140-143 GREEN + WHITE + AMBER...

  • Page 30: Color Temperature Chart

    C O LO R T E M P E R AT U R E DMX VALUE COLOR TEMPERATURE (K) DMX VALUE COLOR TEMPERATURE (K) 2400 6300 2500 6400 2600 6500 2700 6600 2800 6700 2900 6800 3000 6900 3100 7000 3200 7100 3300...

  • Page 31: Virtual Colors Chart

    V I R T U A L C O LO R S VALUE FILTER # COLOR VALUE FILTER # COLOR Pale Yellow Mauve Straw Medium Purple Gold Tint Lavender Spring Yellow Palace Blue Medium Yellow Dark Blue Yellow Medium Blue Deep Amber Deep Blue Deep Straw...

  • Page 32: Maintenance Guidelines

    Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture. Please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from an authorized Elation dealer.

  • Page 33: Specifications

    S P E C I F I C AT I O N S SOURCE ELECTRICAL / THERMAL (7) x 20W RGBMA+ UV LEDs AC 100-240V - 50/60Hz 30,000 Hour Average LED Life* 100W Max Power Consumption 5°F to 113°F (-15°C to 45°C) *May vary depending on several factors including but not limited to: BTU/hr (+/- 10%) 341 Environmental Conditions, Power/Voltage, Usage Patterns (On-Off...
  • Page 34 D I M E N S I O N D R AW I N G S Drawings not to scale 5.3in. [134.0mm] Ø7.4in. [Ø188.0mm] 8.4in. [214.0mm] 9.7in. [247.1mm] Ø0.5in. [Ø13.0mm] 4.2in. [107.0mm]...
  • Page 35 D I M E N S I O N D R AW I N G S Drawings not to scale Ø6.4in. [Ø162.0mm] 1.7in. [43.5mm] H H O O L L D D E E R R 8.0in. [202.4mm] 0.9in. [22.0mm] 0.2in.

  • Page 36: Ordering Information | Error Codes

    O R D E R I N G I N F O R M AT I O N SKU US/EU ITEM DESCRIPTION SIX201 1237000275 SIX+ PAR S SIX+S WFL 1223200104 60° lens SIX+S XFL 1223200105 100° Lens SIX+S L1060 1223200102 10°x60°...
