DESCRIPTION
BATTERY REPLACEMENT:
300 MHz - A23 12-volt
433 MHz - CR2032 3-volt
900 MHz - CR2032 3-volt
75.5701.06 LPR36 20230420
75.5701.06 LPR36 20230420
2
3

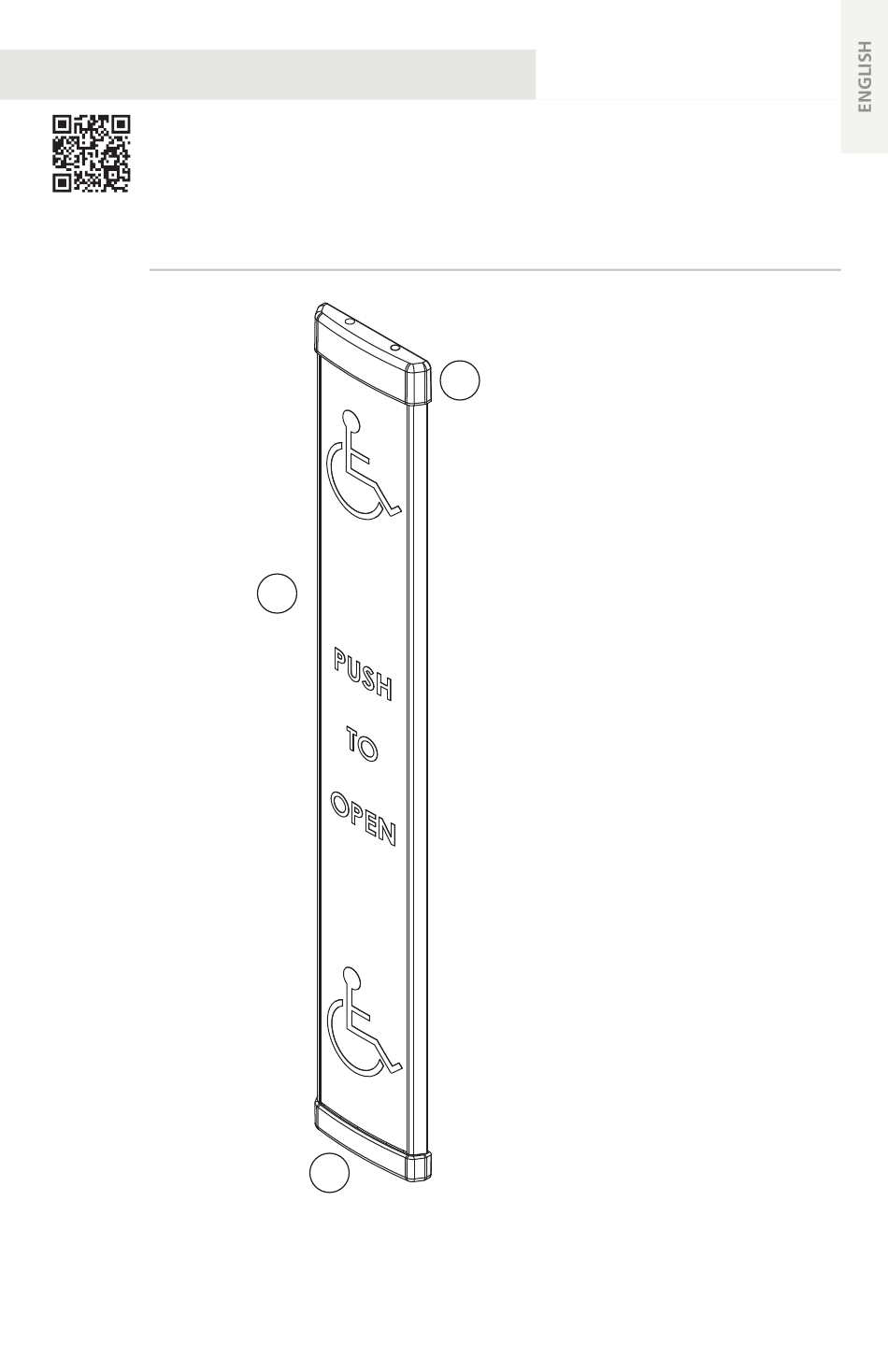

10LPR36-900 / 10LPR36-433 / 10LPR36-300 (wireless)
1
1. Top end cap
2. Plate assembly
3. Bottom end cap
LPR36
Low-profile push plates
10LPR36-HW (hard-wired)
Page 1 of 4
Page 1 of 4
Advertisement
Table of Contents
Related Manuals for BEA 10LPR36-900
Summary of Contents for BEA 10LPR36-900
- Page 1 LPR36 Low-profile push plates Visit website for available languages of 10LPR36-HW (hard-wired) this document. 10LPR36-900 / 10LPR36-433 / 10LPR36-300 (wireless) DESCRIPTION 1. Top end cap 2. Plate assembly 3. Bottom end cap BATTERY REPLACEMENT: 300 MHz - A23 12-volt 433 MHz - CR2032 3-volt 900 MHz - CR2032 3-volt 75.5701.06 LPR36 20230420...
- Page 2 DO NOT attempt any internal repair of the components. All repairs and/or component replacements must be ‰ performed by BEA, Inc. Unauthorized disassembly or repair: 1. May jeopardize personal safety and may expose one to the risk of electrical shock.
- Page 3 MOUNTING Do not remove the face plate during mounting. Remove the top end cap by After removing the top end Make necessary wiring removing its screw covers and cap, remove the top and connections. Ensure excess then removing the screws. bottom locking hole screws.
- Page 4 BEA, Inc. does not guarantee any use of the sensor/device outside of its intended purpose. BEA, Inc. strongly recommends that installation and service technicians be AAADM-certifi ed for pedestrian doors, IDA-certifi ed for doors/ gates, and factory-trained for the type of door/gate system.
