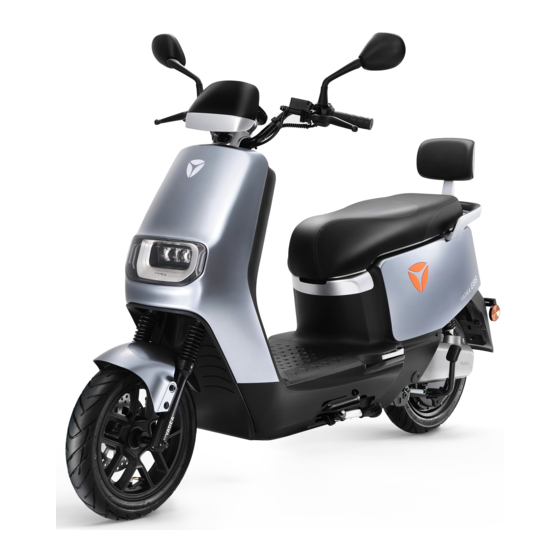

Summary of Contents for Yadea E8S
- Page 3 Yadea Company will not normal warranty. The lend the scooter to others. Please be sure to purchase Yadea electric scooter via official channels, and use the designed spare user shall be liable for any scooter damage or economic loss caused by disassembling, refitting or improper use without parts from Yadea.
-
Page 4: Table Of Contents
Table of Contents 1. Safety Precautions Dear users, for the safety of you and your family and to prevent accidents, please be sure to read the 1. Safety Precautions "instructions for the use of this product" carefully and master driving skills through practice. Safety instruction 2. - Page 5 • In case of quality problems, please go to Yadea star service station, line repair and maintenance. If the performance failure or • Do not wade and drive. The water level should not exceed the lower edge of the rear wheel motor bearing block to prevent the quality problem of the relevant parts is caused by the disassembly and maintenance of your own or non-Yadea authorized motor from being damaged by water inflow.
-
Page 6: Product Accessories
Finally, move the cover down to cover the nut. User manual User manual Bolt Please check carefully whether the contents of the box are intact, if you have any questions, you can contact our company: service@yadea.com... -
Page 7: Parts Info
4. Parts info 1.Front wall 2.Headlight 3.Rearview mirror 4.Hook 1. The left rear brake handle 5.seat cushion 2. Left handle 6.Passenger armrest 3. Left combination switch 7.Rear lamp 5. Right combination switch 8.Rear tire 6. Throttle 9.Motor 10.Rear shock absorbers 7. -
Page 8: Function Introduction
5. Function Introduction Scooter identification number Example：L5XDE1ZK××××××××× Height：7mm Depth：0.2mm Location of nameplate: xxxxxxxxxxxxx ☆xxxxxxxxxx☆ ATTENTION： Motor coding position: Right side of frame Motor side cover or rim When the power battery power is lower than 15%, the charging status indicator light flashes; When it is below 10%, the bottom battery grid changes from white to red, indicating timely charging. - Page 9 Combination switch Name Instruction Icon Left combination switch IMotor fault When the motor fails, the indicator lights up Operational readiness When the P gear of the scooter is released and the scooter speed is 0, ① ① Combination switch the indicator lights up; ②...
- Page 10 Right combination switch Power lock Ordinary lock ① ① Front lock ① Warning light switch ② seat cushion lock ② ② Headlight switch ③ Stop ③ Mode switching ④ Start ⑤ Keyhole ③ 1. Power on operation: insert the key into the keyhole and rotate clockwise to /start gear.
- Page 11 Lock hole position (operated with key only) Knob lock (if applicable) ① Smart key symbol ② Front lock ③ seat cushion lock ④ Stop ⑤ Start ⑥ Keyhole The scooter is in a power- The scooter is in the power- off parking state on start state 1.
-
Page 12: Battery Charging
6. Battery Charging Anti-theft alarm (if applicable) Set up defenses: or remote control away from the scooter 3 meters Unlock away, burglar alarm into the anti-theft state! 1. Insert the charger into the charging hole first, and then add Unprecation: the mains power;... -
Page 13: Battery Installation
7.Battery connection diagram DANGEROUS： • For the safety of you and your scooter, please strictly follow the battery connection diagram to connect, The direction of the arrow is the direction The direction of the arrow is the direction if the battery connection cable is broken, please repair it in time; of the front of the scooter of the front of the scooter •... -
Page 14: Safe Ride
8. Safe ride 9. Safety warning For the safety of you and your family, please read the instruct i o n c arefully before learning to drive , obey WARNING：Failure to follow the instructions below may result in serious injury. the traffic rules, do not speed, do not run red lights, do not go against the road. -
Page 15: Maintenance And Repairs
10. Maintenance and repairs Precautions for washing cleaning • Disconnect the power supply of the scooter before cleaning. Do not touch the live parts, such as the battery charge and discharge port, with wet hands or metal conductors; • No water impact on electrical parts, scooter cleaning should be wet towel dry after wiping the scooter appearance, such as the presence of dirt is difficult to remove, can use a toothbrush brush, after cleaning, please use a soft cloth to dry the scooter;... - Page 16 National connectors. If you cannot troubleshoot, you can contact your dealer or our company at service@yadea.com. service hotline: service@yadea.com.
- Page 17 • It is recommended to check and maintain Yadea professional service station regularly. • When plugging and unplugging the power supply, the hands must be kept dry. It is forbidden for the conductive material to contact the charging hole of the battery box or the contact at both ends of the charging hole of the connecting wire at the same time.
-
Page 18: Inspection And Troubleshooting
11. Inspection and troubleshooting Schedule of regular maintenance items and maintenance contents The user checks the items themselves Inspection item everyday 60Days 180Days 360Days 1. Whether the rotating and steering parts of the handlebar are Inspection item Inspection item loose and worn Headlights, turn signals, tail lights, brake lights Whether it works properly 2. - Page 19 Trouble phenomenon and troubleshooting ATTENTION： • The purpose of this manual is for users to better use the scooter, our company reserves the right to Cause of failure and troubleshooting method The fault phenomenon optimize and change the product at any time and the right of interpretation of this manual. Power lock failure Repair or replace the power lock or connector.
-
Page 20: Specification
12. Specification The fault phenomenon Cause of failure and troubleshooting method Mechanical transmission Lubricate the rotating and transmission parts regularly. width:760mm blockage After one charge There are many uphill situations, strong headwinds, frequent Less than range braking and starting, heavy load, etc. It is recommended to Road conditions pedal to help reduce the number of braking and starting and reduce the load. - Page 21 Battery nominal voltage Model E8S/E8S PRO E8S Lite Lengthxwidth×height 1870×760×1155mm 1870×760×1155mm 100km electricity consumption 4.2kW.h/100km 3.2kW.h/100km Wheelbase 1272mm 1272mm Undervoltage protection value 63.5V 63.5V Minimum ground clearance 110mm 110mm Overcurrent protection value: Scooter kerb mass 76kg 76kg Charger input power...
-
Page 22: Electrical Schematic Diagram
13. Electrical schematic diagram... -
Page 23: Appendix 1 Maintenance Record
Appendix 1 Maintenance Record Date Malfuntion Description Service Station Serviced by Remarks Date Malfuntion Description Service Station Serviced by Remarks... - Page 24 Date Malfuntion Description Service Station Serviced by Remarks Date Malfuntion Description Service Station Serviced by Remarks...
