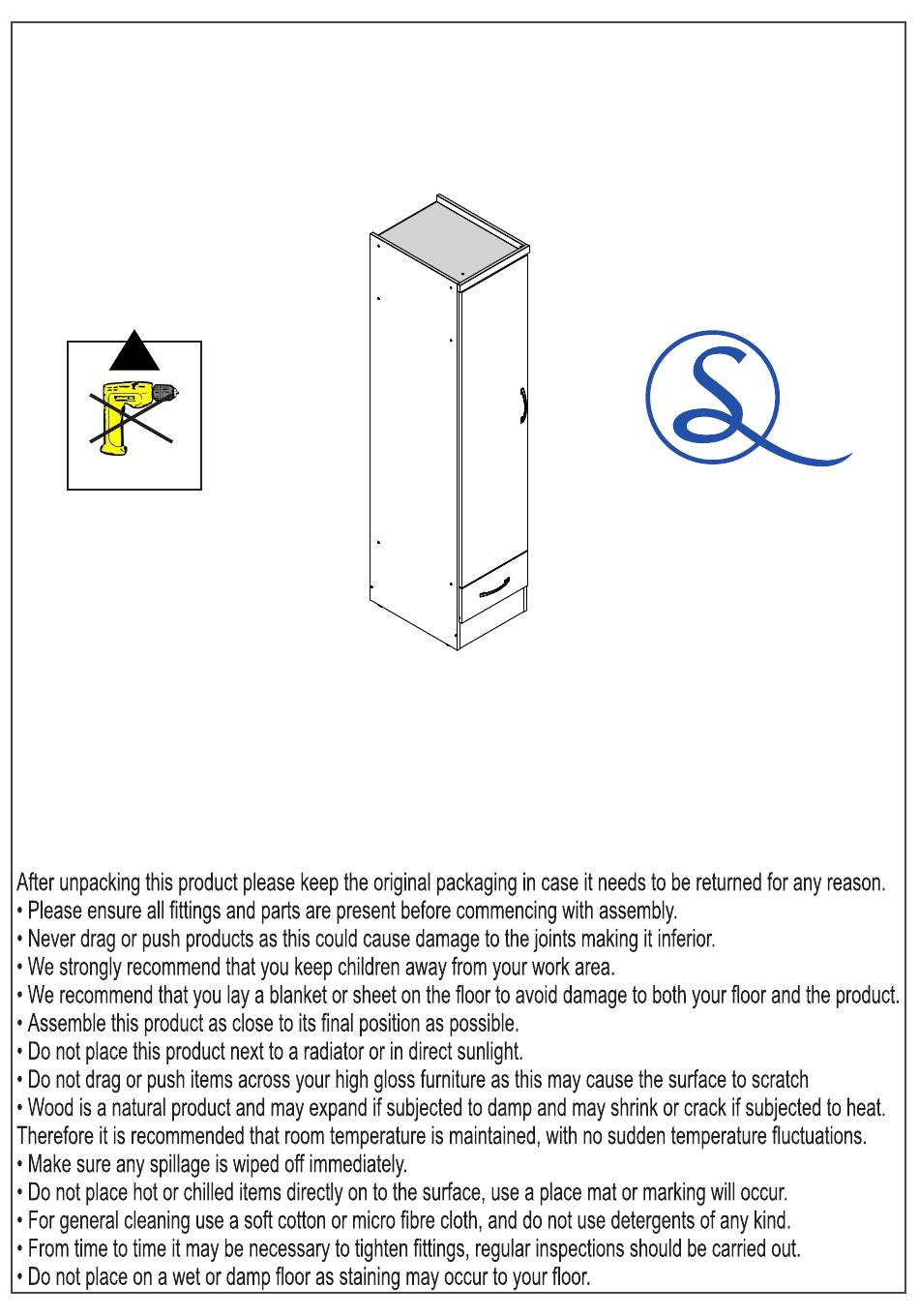

- Page 1 SEC/SH/05/24/CA2 NEVADA 1 DOOR 1 DRAWER WARDROBE ASSEMBLY INSTRUCTIONS DO NOT USE IMPORTANT FOR DOMESTIC USE ONLY PLEASE READ BEFORE YOU CONTINUE FURTHER CARE AND MAINTENANCE PAGE 01...
-
Page 2: Parts List
SEC/SH/05/24/CA2 PARTS LIST Please Note: The below parts have all been stamped with the part number to help identify them during assembly. Part Number Part Description Quantity Carton Base-Top Panel Right Side Panel Le Side Panel Shelf Door Front Baseboard Back Baseboard Frame Back Panel... -
Page 3: Fittings List
SEC/SH/05/24/CA2 FITTINGS LIST Flat Head Screw Flan Head Screw Flat Head Screw Flan Head Screw Ø6,0 x 10mm (4x) Ø4,0 x 14mm (3x) Ø4,0 x 14mm (22x) Ø4,0 x 22mm (4x) Flat Head Screw Ø4,0 x 50mm (18x) Nail 10 x 10 (46x) Dowel Ø6,0 x 30mm (28x) Flan Head Screw Ø3,5 x 30mm (1x) - Page 4 SEC/SH/05/24/CA2 STEP 1 PARTS REQUIRED SECOND HOLE LAST SIXTH HOLE LEFT SIDE PANEL HARDWARE REQUIRED PLEASE NOTE PRE-DRILLED Ø6,0 x 10mm HOLES. 10 x 10 LEFT TOOLS REQUIRED Detail 4 Detail 3 Detail 4 Detail 3 Detail 4 STEP 2 PARTS REQUIRED SECOND HOLE RIGHT SIDE PANEL...
- Page 5 SEC/SH/05/24/CA2 STEP 3 ATTACH THE HINGES TO PART 3 (LEFT) TO HANG THE DOOR FROM THE LEFT. PARTS REQUIRED Detail 2 LEFT SIDE PANEL HARDWARE REQUIRED Detail 6 Ø4,0 x 14mm Detail 6 LEFT TOOLS REQUIRED Detail 6 Detail 2 Detail 6 Please note: Pre-marked...
- Page 6 SEC/SH/05/24/CA2 Detail 1 STEP 5 PARTS REQUIRED Detail 1 Detail 1 1A - TOP PANEL BASE PANEL 1B - Detail 1 Detail 1 SHELF HARDWARE REQUIRED Detail 1 Ø6,0 x 30mm Detail 1 Detail 10 Detail 1 Detail 10 Detail 1 Detail 1 Ø4,0 x 12mm TOOLS REQUIRED...
- Page 7 SEC/SH/05/24/CA2 STEP 7 PARTS REQUIRED 1A - TOP PANEL Detail 1 1B - BASE PANEL Detail 12 RIGHT SIDE PANEL Detail 12 SHELF Detail 12 HARDWARE REQUIRED Detail 12 Detail 12 Ø4,0 x 50mm Detail 12 TOOLS REQUIRED Detail 1 Detail 12 STEP 8 Detail 1...
- Page 8 SEC/SH/05/24/CA2 STEP 9 HARDWARE REQUIRED TOOLS REQUIRED PARTS REQUIRED BACK PANEL Ø4,0 x 14mm 10 x 10 IMPORTANT PLEASE FOLLOW ! 1° Please make sure Part 9 is lined up correctly at the top before placing fitting H into the panel as this can affect the alignment of the doors once assembled.
- Page 9 SEC/SH/05/24/CA2 STEP 10 TOOLS REQUIRED PARTS REQUIRED HARDWARE REQUIRED 10 x 10 1479mm 268mm Detail 13 Detail 13 PAGE 09...
- Page 10 SEC/SH/05/24/CA2 STEP 11 PARTS REQUIRED FRAME HARDWARE REQUIRED Ø4,0 x 12mm TOOLS REQUIRED Detail 15 Detail 15 Detail 15 Align corners STEP 12 PARTS REQUIRED Detail 16 HARDWARE REQUIRED Detail 16 PAGE 10...
- Page 11 SEC/SH/05/24/CA2 STEP 13 PARTS REQUIRED 11 - DRAWER SIDE 12 - DRAWER BACK PANEL HARDWARE REQUIRED Detail 17 Detail 17 Detail 17 Ø6,0 x 30mm Detail 17 Detail 17 Detail 17 Detail 17 STEP 14 Detail 18 PARTS REQUIRED 10 - DRAWER FRONT HARDWARE REQUIRED Detail 18...
- Page 12 SEC/SH/05/24/CA2 STEP 15 PARTS REQUIRED 11 - DRAWER SIDE 12 - DRAWER BACK PANEL HARDWARE REQUIRED Detail 19 Ø4,0 x 50mm TOOLS REQUIRED Detail 19 Detail 19 STEP 16 PARTS REQUIRED Detail 1 Detail 17 Detail 1 Detail 17 HARDWARE REQUIRED TOOLS REQUIRED Cam bolt head needs to be in centre Detail 1...
- Page 13 SEC/SH/05/24/CA2 STEP 17 Detail 18 PARTS REQUIRED Detail 18 Detail 18 13 - DRAWER BOTTOM Detail 18 HARDWARE REQUIRED 10 x 10 TOOLS REQUIRED 10 2 Detail 18 STEP 18 Detail 18 PARTS REQUIRED Detail 18 Detail 18 Detail 18 HARDWARE REQUIRED 10 x 10 TOOLS REQUIRED...
- Page 14 SEC/SH/05/24/CA2 STEP 19 PARTS REQUIRED FIRST HOLE LAST SECOND HOLE HARDWARE REQUIRED Ø4,0 x 14mm LEFT RIGHT TOOLS REQUIRED FIRST HOLE LAST SECOND HOLE STEP 20 PARTS REQUIRED DOOR HARDWARE REQUIRED Ø4,0 x 14mm Detail 8 TOOLS REQUIRED Detail 8 Detail 8 Detail 8 PAGE 14...
- Page 15 SEC/SH/05/24/CA2 POSITION THE DOOR TO THE LEFT OR RIGHT SIDE STEP 21 PARTS REQUIRED Detail 20 Detail 20 Detail 21 Detail 21 DOOR Detail 21 Detail 21 Detail 21 Detail 21 LEFT RIGHT Detail 20 Detail 20 HARDWARE REQUIRED RIGHT LEFT TOOLS REQUIRED Detail 20...
- Page 16 SEC/SH/05/24/CA2 STEP 23 If desired, after assembly use an alcohol cleaner to erase the number PARTS REQUIRED printed on the parts. Height Adjustment Internal Adjustment LEFT RIGHT HARDWARE REQUIRED Depth Adjustment Ø4,0 x 14mm Detail 23 Detail 23 TOOLS REQUIRED Drawer Adjustment Drawer Lock Detail 23...
