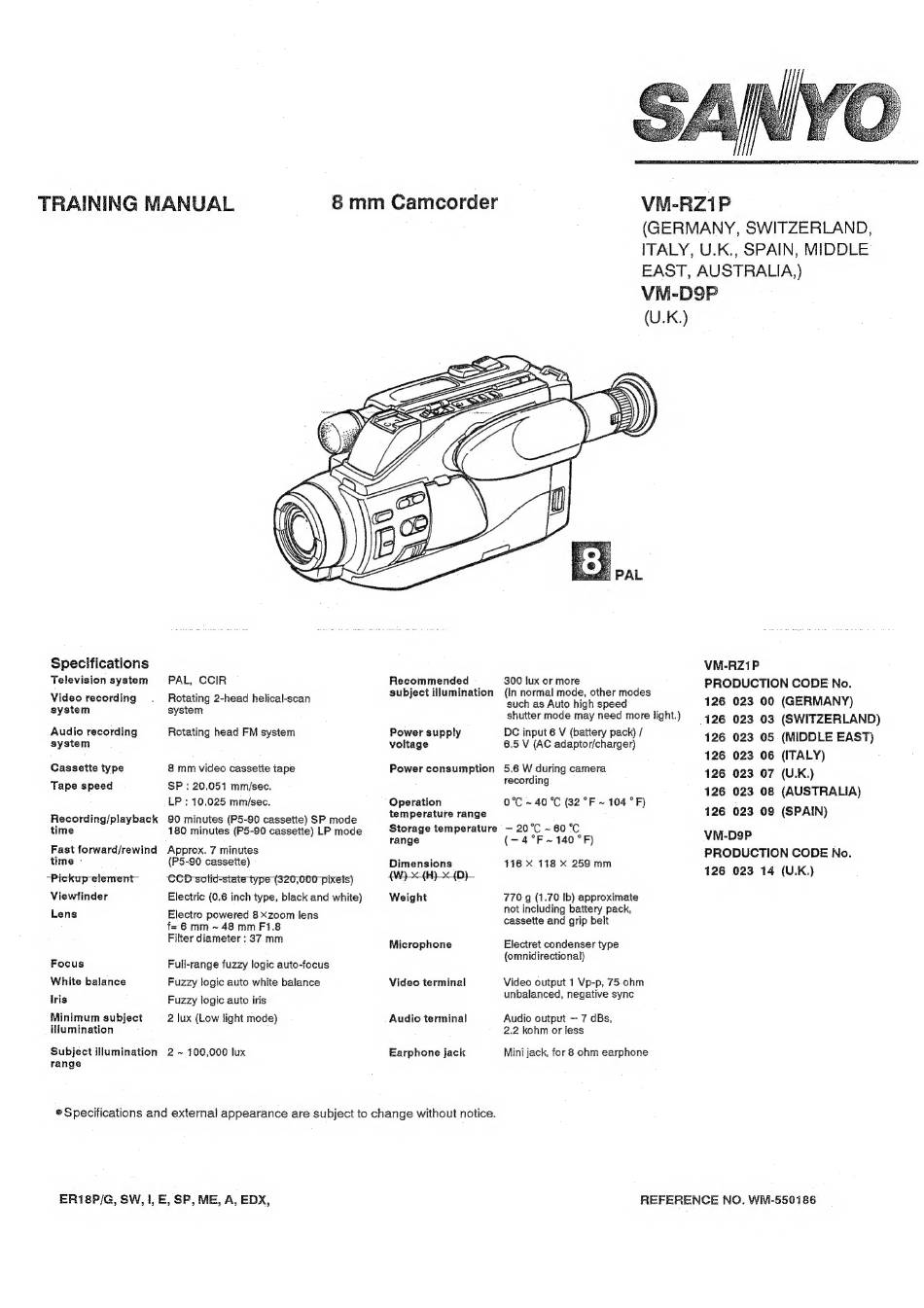

Sanyo VM-RZ1P Training Manual

TRAINING MANUAL 8 mm Camcorder VM-RZiP
(GERMANY, SWITZERLAND,
ITALY, U.K., SPAIN, MIDDLE
EAST, AUSTRALIA,)
VM-D9OP
(U.K.)
Specifications VM-RZ1P
Television system PAL, CCIR Recommended 300 lux or more PRODUCTION CODE No.
Video recording .
Rotating 2-head helical-scan Sublect Weininanen
aati Hee rplien dey
126 023 00 (GERMANY)
system system
shutter mode may need more light.)
— 496 923 03 (SWITZERLAND)
Audio recording Rotating head FM system Power supply DC input 6 V (battery pack) /
system voltage 6.5 V (AC adaptor/charger) 126 023 05 (MIDDLE EAST)
126 023 06 (ITALY)
Cassette type 8 mm video cassette tape Power consumption 5.6 W during camera 126 023 07 (U.K)
Tape speed SP : 20.051 mm/sec.
necorling
126 023 08 (AUSTRALIA)
LP : 10.025 mmisec.
Operation
Oe
eb
ASE)
126 023 09 (SPAIN
Recording/playback 90 minutes (P5-90 cassette) SP mode temperature range ' 7 ( )
time 180 minutes (P5-90 cassette) LP mode Storage temperature ~— 20°C ~ 60 °C VM-D9P
range (-— 4 °F ~ 140 °F) 5
Fast forward/rewind
Approx. 7 minutes
PRODUCTION CODE No.
time - P5-80 ¢ tt i i
( rag e) Dimensions 116 X 118 x 259 mm 126 023 14 (U.K)
Pickup element- CCD solid-state type (320,000 pixels)
Viewfinder Electric (0.6 inch type, black and white) Weight 770g qa 70 Ib) approximate
Lens Electro powered 8 Xzoom lens Fie nec alter pecly
f= mm ~ 48 mm F1.8 cassette and grip belt
Filter diameter : 37 mm
Microphone Electret condenser type
: (omnidirectional)
Focus Full-range fuzzy logic auto-focus
White balance Fuzzy logic auto white balance Video terminal Video output 1 Vp-p, 75 ohm
Iris
Fuzzy logic auto iris
unbalanced, negative sync
Minimum subject 2 lux (Low light mode) Audio terminal Audio output — 7 dBs,
illumination 2.2 kohm or less
Subject illumination 2 ~ 100,000 lux Earphone jack Mini jack, for 8 ohm earphone
range
® Specifications and external appearance are subject to change without notice.
ER18P/G, SW, I, E, SP, ME, A, EDX, REFERENCE NO. WM-550186
