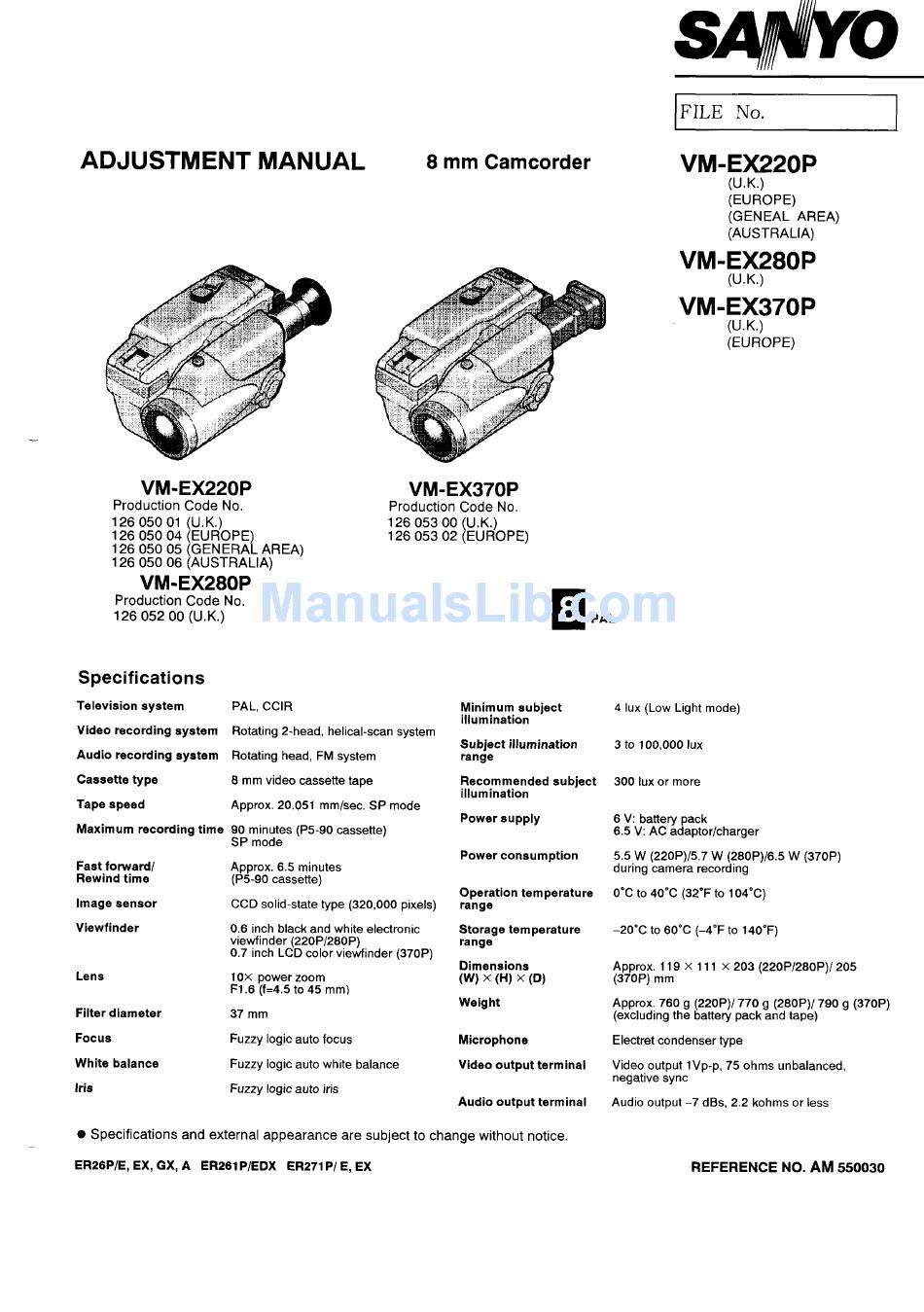

Sanyo VM-EX220P Adjustment Manual

FILE No.
ADJUSTMENT MANUAL 8 mm Camcorder
VM-EX220P VM-EX370P
Production Code No, Production Code No,
12605001 (U. K.)
12605300 (U. K.)
12605004 (EUROPE)
12605302 (EUROPE)
,–– —,
12605005 /GEN ERA1- AREA)
12605006 (AUSTRALIA)
VM-EX280P
Production Code No.
12605200 (U. K.)
Specifications
Television system
Video recording system
Audio recording system
Cassette type
Tape speed
Maximum recording time
Fast forward/
Rewind time
Image sensor
PAL, CCIR
Rotating 2-head, helical-scan system
Rotating head, FM system
8 mm video cassette tape
Approx. 20.051 mmlsec, SP mode
90
minutes
(P5-90 cassette)
SP mode
Approx, 6,5 minutes
(P5-90 cassette)
CCD solid-state type (320,000 pixels)
Viewfinder
0:6
in,chblack and white electronic
viewfinder (220P/280P)
0.7 inch LCD color viewfinder
(370P)
Lens 1Ox power zoom
F1.6 (f=4,5 to 45 mm)
Filter diameter
37
mm
Focus
Fuzzy
logic auto focus
White balance Fuzzy logic
auto white balance
Iris
Fuzzy
logic auto iris
Minimum subject
illumination
Subject illumination
range
Recommended subject
illumination
Power supply
Power consumption
Operation temperature
range
Storage temperature
range
Dimensions
(W) X (H) X (D)
Weight
Microphone
Video output terminal
Audio output terminal
.! Specifications and external appearance are subject to change without notice.
ER26P/E, EX, GX, A ER261 P/EDX ER271 PI E, EX
VM-EX220P
(U. K.)
(EUROPE)
(GENEAL AREA)
(AUSTRALIA)
vM-5y80P
. .
VM-B(370P
(EUROPE)
4 IUX (Low
Light mode)
3 to 100,000
Iux
300 Iux or more
6 V: battery pack
6,5 V: AC adaptor/charger
5,5 W (220 P)/5,7 W (260 P)/6.5 W (370P)
during camera recording
O"C to 40"C (32°F to 104"C)
-20"C to 60"C (@l°F to 1400F)
Approx, 119
X 111 X
203 (220P/280P)/ 205
(370P) mm
Approx, 760 g (220P)/ 770 g (280P)/ 790 g (370P)
(excluding the battery pack and tape)
Electret condenser type
Video output lVp-p, 75 ohms unbalanced,
negative sync
Audio output –7 dBs, 2.2 kohms or less
REFERENCE NO.
AM
550030
