Vulcan-Hart MHB24E Replacement Parts Catalog

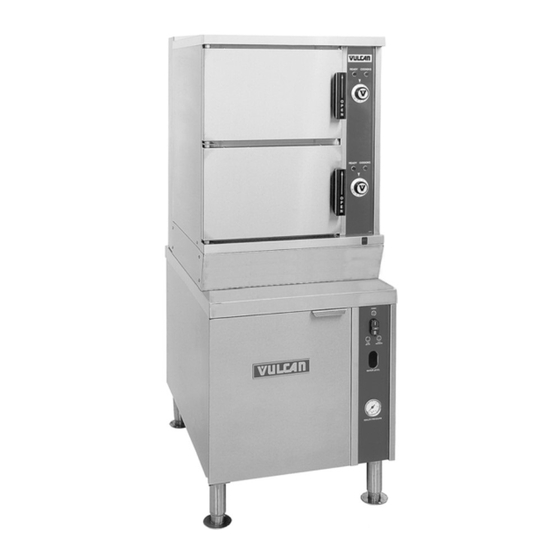

Boiler base steamer
Hide thumbs Also See for MHB24E:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual, Operation & Installation Manual
BOILER BASE STEAMER
MODELS
VHX24G
VHX24G5
VHL2G
VHL3G
MHB24G
VHX24E
VHX24E5
For additional information on Vulcan-Hart Company or to locate an authorized
parts and service provider in your area, visit our website at www.vulcanhart.com
V U L C A N - H A R T C O M P A N Y , P . O . B O X 6 9 6 , L O U I S V I L L E , K Y 4 0 2 0 1 - 0 6 9 6 , T E L . ( 5 0 2 ) 7 7 8 - 2 7 9 1

REPLACEMENT PARTS

ML-114795
ML-126590
ML-126323
ML-126324
ML-114954
ML-126852
ML-126853
CATALOG OF
VHL2E
ML-126855
VHL3E
ML-126856
MHB24E
ML-126857
VHX24D
ML-126862
VHX24D5
ML-126863
VHL2D
ML-126858
VHL3D
ML-126859
FORM 31218 (November 2003)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MHB24E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vulcan-Hart MHB24E

Summary of Contents for Vulcan-Hart MHB24E

  • Page 1: Replacement Parts

    VHX24E5 ML-126853 For additional information on Vulcan-Hart Company or to locate an authorized parts and service provider in your area, visit our website at www.vulcanhart.com V U L C A N - H A R T C O M P A N Y , P . O . B O X 6 9 6 , L O U I S V I L L E , K Y 4 0 2 0 1 - 0 6 9 6 , T E L . ( 5 0 2 ) 7 7 8 - 2 7 9 1...

  • Page 2: F-31218 (November 2003

    VHX/VHL/MHB SERIES BOILER BASE STEAMER REPLACEMENT PARTS F-31218 (November 2003) - 2 - © VULCAN-HART COMPANY...

  • Page 3: Table Of Contents

    VHX/VHL/MHB SERIES BOILER BASE STEAMER REPLACEMENT PARTS Table of Contents Page Description Flue Assembly (VHX and VHL Gas Units) Boiler Pressure Switch Assembly (VHX, VHL, and MHB Gas and Electric) Burner Assembly (VHX, VHL, and MHB Gas Units) Boiler Control Panel (VHX, VHL, and MHB Gas and Electric) Main Control Box –...

  • Page 4: Flue Assembly (Vhx And Vhl Gas Units)

    VHX/VHL/MHB SERIES BOILER BASE STEAMER REPLACEMENT PARTS PL-56383 FLUE ASSEMBLY (VHX AND VHL GAS UNITS) F-31218 (November 2003) - 4 -...
  • Page 5 ILLUS. PART NO. PL-56383 00-850796-00001 Flue Assy. – Vertical ... 1 00-850738-00001 Gasket – Flue Housing ... 1 00-850783-00001 Housing Weldment ... 1 00-850775-00001 Gasket – Burner Flange ... 1 00-850739-00001 Gasket – Flue ... 1 00-850787-00001 Flue Weldment – Horizontal ... 1 VHX/VHL/MHB SERIES BOILER BASE STEAMER REPLACEMENT PARTS FLUE ASSEMBLY (VHX AND VHL GAS UNITS)

  • Page 6: Boiler Pressure Switch Assembly (Vhx, Vhl, And Mhb Gas And Electric)

    VHX/VHL/MHB SERIES BOILER BASE STEAMER REPLACEMENT PARTS PL-56382 BOILER PRESSURE SWITCH ASSEMBLY (VHX, VHL, AND MHB GAS AND ELECTRIC) F-31218 (November 2003) - 6 -...
  • Page 7 BOILER PRESSURE SWITCH ASSEMBLY (VHX, VHL, AND MHB GAS AND ELECTRIC) ILLUS. PART NO. PL-56382 00-844062-00001 Thermostat – Condenser Box ... 1 00-853204-00001 Box – Pressure Switch ... 1 00-817222 Valve – Cold Water Condenser ... 2 00-817222 Valve – Boiler Fill ... 1 00-844069-00001 Control –...

  • Page 8: Burner Assembly (Vhx, Vhl, And Mhb Gas Units)

    VHX/VHL/MHB SERIES BOILER BASE STEAMER REPLACEMENT PARTS PL-56381 BURNER ASSEMBLY (VHX, VHL, AND MHB GAS UNITS) F-31218 (November 2003) - 8 -...

  • Page 9: Burner Assembly

    ILLUS. PART NO. PL-56381 00-851311-00001 Gasket – Air Tube End Plate ... 1 00-851843-00001 Nut – Ignitor Bushing ... 1 00-853994-00001 Burner – Press Fit Tube Assy..1 00-850733-00001 Sleeve – Ceramic ... 1 00-854017-00001 Orifice – Pilot LP/NAT Gas ... 1 00-851833-00001 Orifice –...

  • Page 10: Boiler Control Panel (Vhx, Vhl, And Mhb Gas And Electric)

    VHX/VHL/MHB SERIES BOILER BASE STEAMER REPLACEMENT PARTS PL-56380 BOILER CONTROL PANEL (VHX, VHL, AND MHB GAS AND ELECTRIC) F-31218 (November 2003) - 10 -...
  • Page 11 (VHX, VHL, AND MHB GAS AND ELECTRIC) ILLUS. PART NO. PL-56380 00-853559-00001 Cover – Light & Switch ... 1 FP-087-85 Fitting – Tube 00-833152 Gauge – Pressure ... 1 00-853331-00001 Panel – Control Wldmt..1 00-853324-00001 Panel – Overlay ... 1 00-853275-00001 Switch Assy.

  • Page 12: Main Control Box - Gas (Vhx, Vhl, And Mhb Gas Units)

    VHX/VHL/MHB SERIES BOILER BASE STEAMER REPLACEMENT PARTS PL-56379 MAIN CONTROL BOX – GAS (VHX, VHL, AND MHB GAS UNITS) F-31218 (November 2003) - 12 -...
  • Page 13 ILLUS. PART NO. PL-56379 00-853218-00001 Lid – Main Control Panel ... 1 00-853273-00001 Board – Relay ... 1 00-417980-00001 Module – Ignitor ... 1 00-854236-00001 Support – PC Lock-In ... 4 00-411500-00012 Transformer ... 1 00-853217-00001 Panel – Main Control ... 1 00-853215-00001 Box –...

  • Page 14: Main Control Box (Vhx, Vhl, And Mhb Electric Units)

    VHX/VHL/MHB SERIES BOILER BASE STEAMER REPLACEMENT PARTS PL-56703 MAIN CONTROL BOX (VHX, VHL, AND MHB ELECTRIC UNITS) F-31218 (November 2003) - 14 -...
  • Page 15 (VHX, VHL, AND MHB ELECTRIC UNITS) ILLUS. PART NO. PL-56703 FE-024-24 Plug – Button FE-007-03 Connector – Conduit 00-854479-00001 Bracket Wldt. – Main Control Box ... 1 00-854838-00001 Rail – DIN 35 Slotted ... 1 SC-067-06 Mach. Screw 10-24 x 00-881654 Contactor –...

  • Page 16: Gas Plumbing Assembly (Vhx, Vhl, And Mhb Gas Units)

    VHX/VHL/MHB SERIES BOILER BASE STEAMER REPLACEMENT PARTS 3 T H R U 6 T H R U PL-56378 GAS PLUMBING ASSEMBLY (VHX, VHL, AND MHB GAS UNITS) F-31218 (November 2003) - 16 -...
  • Page 17 ILLUS. PART NO. PL-56378 00-851625-00001 Blower – Inlet Weldment ... 1 00-851631-00001 Gasket – Blower Inlet Adapter ... 1 00-852940-00001 Air Orifice Natural Gas (Sea Level to 4000 Ft.) ... 1 00-852940-00002 Air Orifice Propane Gas (Sea Level to 4000 Ft.) ... 1 00-854055-00001 Air Orifice Natural Gas (4001 to 6000 Ft.) ...

  • Page 18: Boiler Assembly (Vhx, Vhl, And Mhb Gas Units)

    VHX/VHL/MHB SERIES BOILER BASE STEAMER REPLACEMENT PARTS PL-56376 BOILER ASSEMBLY (VHX, VHL, AND MHB GAS UNITS) F-31218 (November 2003) - 18 -...
  • Page 19 ILLUS. PART NO. PL-56376 00-850762-00001 Boiler Assembly (Incls. Items 2, 3, & 10 thru 16) ... 1 FP-088-50 Plug – Pipe ... 1 00-880044 Steamer – Descaler ... 1 00-854058-00001 Gasket – Heat Exchanger Casting ... 1 00-850422-00002 Casting – Heat Exchanger Tube ... 1 SC-116-83 Cap Screw 00-850786-00001 Plate –...

  • Page 20: Boiler Plumbing Components

    VHX/VHL/MHB SERIES BOILER BASE STEAMER REPLACEMENT PARTS 1 - 2 PL-56377 BOILER PLUMBING COMPONENTS F-31218 (November 2003) - 20 -...
  • Page 21 BOILER PLUMBING COMPONENTS ILLUS. PART NO. PL-56377 00-817233 Probe – Water Level Control (Auxillary LLCO) ... 1 00-817477-00007 Extension – Probe (Auxillary LLCO) ... 1 00-851300-00001 Gauge – Glass, and Fitting Assy. (Incls. Items 4 & 5) ... 1 00-817098-00005 Washer – Rubber ... 2 00-850761-00001 Gauge –...

  • Page 22: Vhx Series Pressureless Cooker (6 Pan Unit)

    VHX/VHL/MHB SERIES BOILER BASE STEAMER REPLACEMENT PARTS 4 THRU 7 16-17 VHX SERIES PRESSURELESS COOKER F-31218 (November 2003) 37-38 23-24 (6 PAN UNIT) - 22 - 26-27 PL-56384...
  • Page 23 VHX SERIES PRESSURELESS COOKER ILLUS. PART NO. PL-56384 00-844016 Rod – Hinge ... 1 00-842049 Switch – Door ... 1 00-850077 Pin – Actuator With Clip ... 1 00-840496 Striker ... 2 00-844533 Washer (SST) ... 2 00-850075 Lockwasher ... 2 00-850076 Nut –...

  • Page 24: Vhx Series Pressureless Cooker (10 Pan Unit

    VHX/VHL/MHB SERIES BOILER BASE STEAMER REPLACEMENT PARTS 4 THRU 7 VHX SERIES PRESSURELESS COOKER F-31218 (November 2003) 22-23 (10 PAN UNIT) - 24 - 25-26 PL-56385...
  • Page 25 VHX SERIES PRESSURELESS COOKER ILLUS. PART NO. PL-56385 00-854457 Rod – Hinge ... 1 00-842049 Switch – Door ... 2 00-854458 Pin – Actuator with Clip ... 2 00-840496 Striker ... 2 00-844533 Washer (SST) ... 2 00-850075 Lockwasher ... 2 00-850076 Nut –...

  • Page 26: Vhl Series Steamer Compartment Door

    VHX/VHL/MHB SERIES BOILER BASE STEAMER REPLACEMENT PARTS P L - 5 6 5 7 4 VHL SERIES STEAMER COMPARTMENT DOOR F-31218 (November 2003) - 26 -...
  • Page 27 VHL SERIES STEAMER COMPARTMENT DOOR ILLUS. PART NO. PL-56574 SC-053-41 Mach. Screw 00-881629 Lift-Hook – Door ... 2 00-881625 Retainer – Door Gasket ... 1 00-881624 Gasket – Door ... 1 00-843934 Shim – Door Gasket ... AR 00-356708-00001 Plate – Inner Door WL-003-38 Lockwasher SC-053-41...

  • Page 28: Vhl Series Control Panel - Auto Deluxe, Pre-Vent Controls

    VHX/VHL/MHB SERIES BOILER BASE STEAMER REPLACEMENT PARTS 1 - 2 3 - 4 THREE COMPARTMENT 6 - 7 TWO COMPARTMENT PL-50809 VHL SERIES CONTROL PANEL – AUTO DELUXE, PRE-VENT CONTROLS F-31218 (November 2003) - 28 -...
  • Page 29 VHL SERIES CONTROL PANEL – AUTO DELUXE, PRE-VENT CONTROLS ILLUS. PART NO. PL-50809 00-881607-00011 Panel – Nameplate (2 Compartment) ... 1 00-881607-00012 Panel – Nameplate (3 Compartment) ... 1 00-881622-00001 Panel – Mounting (2 Compartment) ... 1 00-881622-00003 Panel – Mounting (3 Compartment) ... 1 00-881604 Strip –...

  • Page 30: Vhl Series Compartment Controls - Manual

    VHX/VHL/MHB SERIES BOILER BASE STEAMER REPLACEMENT PARTS 3 1 - 3 2 VHL SERIES COMPARTMENT CONTROLS – MANUAL F-31218 (November 2003) THREE COMPARTMENT COMPARTMENT - 30 - PL-56720...
  • Page 31 VHL SERIES COMPARTMENT CONTROLS – MANUAL ILLUS. PART NO. PL-56720 FP-084-08 Plug – Pipe 00-881648 Pin – Pivot ... 1 RP-004-23 Pin – Roll 0.125 ... 1 SC-053-03 Mach. Screw 10-24 x PC-003-56 Cotter Pin 00-356720-00001 Latch – Door Weldment ... 1 00-881590 Pivot –...

  • Page 32: Vhl Series Compartment Controls - Standard Auto

    VHX/VHL/MHB SERIES BOILER BASE STEAMER REPLACEMENT PARTS 3 7 - 3 8 VHL SERIES COMPARTMENT CONTROLS – STANDARD AUTO F-31218 (November 2003) THREE COMPARTMENT COMPARTMENT - 32 - PL-56719...
  • Page 33 VHL SERIES COMPARTMENT CONTROLS – STANDARD AUTO ILLUS. PART NO. PL-56719 NS-046-38 Nut – Lock RP-003-08 Roll Pin NS-031-15 Stop Nut – Special 10-24 Hex (SST) ... 4 FP-084-08 Plug – Pipe 00-881648 Pin – Pivot ... 1 RP-004-23 Pin – Roll 0.125 ... 1 SC-053-03 Mach.

  • Page 34: Vhl Series Compartment Controls - Pre-Vent

    VHX/VHL/MHB SERIES BOILER BASE STEAMER REPLACEMENT PARTS 3 8 - 3 9 VHL SERIES COMPARTMENT CONTROLS – PRE-VENT F-31218 (November 2003) THREE COMPARTMENT COMPARTMENT - 34 - PL-56722...
  • Page 35 VHL SERIES COMPARTMENT CONTROLS – PRE-VENT ILLUS. PART NO. PL-56722 NS-031-15 Stop Nut 10-24 Hex Special (SST) ... AR 00-843973-00001 Switch – Thermal ... AR 00-881648 Pin – Pivot ... AR RP-004-23 Pin – Roll 0.125 ... AR SC-053-03 Mach. Screw 10-24 x PC-003-56 Cotter Pin 00-356720-00001 Latch –...

  • Page 36: Field Terminal Box (Electric Units)

    VHX/VHL/MHB SERIES BOILER BASE STEAMER REPLACEMENT PARTS PL-56708 FIELD TERMINAL BOX (ELECTRIC UNITS) F-31218 (November 2003) - 36 -...
  • Page 37 ILLUS. PART NO. PL-56708 SC-067-06 Mach. Screw 10-24 x 00-854810-00001 Lid – Field Terminal Box Wldt..1 00-855178-00001 Label – Power Diagram ... 1 SC-067-06 Mach. Screw 10-24 x 00-854842-00001 Block – Terminal (3 Pole) ... 1 SC-067-06 Mach. Screw 10-24 x 00-855177-00001 Transformer (200 V.) ...

  • Page 38: Condensor Box

    VHX/VHL/MHB SERIES BOILER BASE STEAMER REPLACEMENT PARTS PL-56710 F-31218 (November 2003) CONDENSER BOX - 38 -...
  • Page 39 ILLUS. PART NO. PL-56710 SC-053-02 Mach. Screw 10-24 x 00-844093-00001 Cover ... 1 00-844094-00001 Gasket ... 1 00-328479-00002 Nutsert 0.515 x 400 MONEL ... 8 00-844125-00007 Grommet 00-852979-00001 Box – Condenser Weldment ... 1 00-844125-00001 Grommet 00-844125-00008 Grommet 1 00-844125-00007 Grommet 00-844125-00006 Grommet –...

  • Page 40: Water Inlet Plumbing

    VHX/VHL/MHB SERIES BOILER BASE STEAMER REPLACEMENT PARTS PL-56711 WATER INLET PLUMBING F-31218 (November 2003) - 40 -...
  • Page 41 ILLUS. PART NO. PL-56711 FP-086-22 Fitting – Tube 00-854015-00001 Valve – Ball FP-012-24 Fitting – Tube 00-844125-00007 Grommet FP-012-24 Fitting – Tube FP-027-07 Bushing – Pipe 00-833648-00002 Valve FP-053-05 Nut – Lock, Pipe FP-054-39 Pipe – FP-015-16 Elbow – Pipe 00-844152-00001 Adapter –...

  • Page 42: Steam Header

    VHX/VHL/MHB SERIES BOILER BASE STEAMER REPLACEMENT PARTS PL-56709 STEAM HEADER F-31218 (November 2003) - 42 -...
  • Page 43 ILLUS. PART NO. PL-56709 FP-041-50 Pipe FP-015-23 Elbow – Pipe FP-041-66 Pipe FP-015-23 Elbow – Pipe FP-041-50 Pipe FP-019-28 Tee – Pipe FP-041-50 Pipe FP-015-23 Elbow – Pipe FP-028-19 Plug – Pipe FP-041-50 Pipe FP-081-73 Union – Pipe Straight Female Teflon O-Ring ... 1 FP-041-54 Pipe 00-880026...
  • Page 44 VHX/VHL/MHB SERIES BOILER BASE STEAMER REPLACEMENT PARTS FORM 31218 NOVEMBER 2003 PRINTED IN U.S.A.

This manual is also suitable for:

Mhb24gVhl2dVhl2eVhl2gVhl3dVhl3e ... Show all
