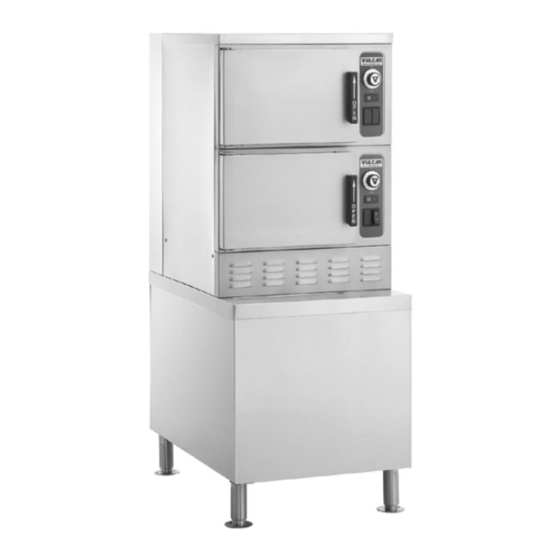

C24EA6 & C24EA10
ELECTRIC STEAMERS
C24EA6
ML-136058
C24EA10
ML-136059
For additional information on Vulcan-Hart or to locate an authorized parts
and service provider in your area, visit our website at www.vulcanhart.com.
VULCAN-HART
DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC
WWW.VULCANHART.COM
REPLACEMENT PARTS
CATALOG OF
3600 NORTH POINT BLVD.
BALTIMORE, MD 21222
FORM 35454 (October 2007)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C24EA10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vulcan-Hart C24EA10

Summary of Contents for Vulcan-Hart C24EA10

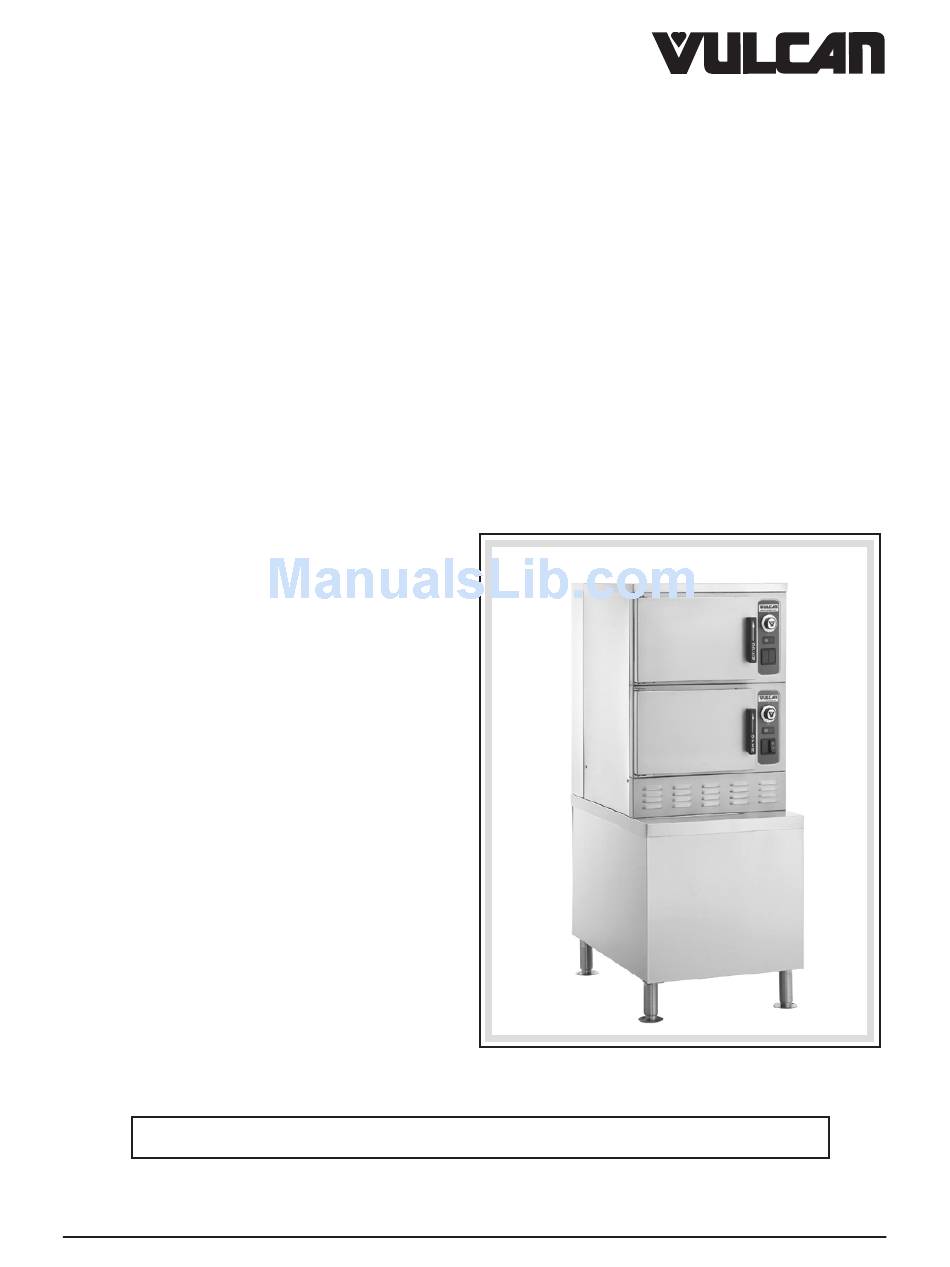

  • Page 1 C24EA6 & C24EA10 ELECTRIC STEAMERS C24EA6 ML-136058 C24EA10 ML-136059 For additional information on Vulcan-Hart or to locate an authorized parts and service provider in your area, visit our website at www.vulcanhart.com. VULCAN-HART DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC WWW.VULCANHART.COM CATALOG OF REPLACEMENT PARTS 3600 NORTH POINT BLVD.
  • Page 2 C24EA6 & C24EA10 STEAMER REPLACEMENT PARTS F-35454 (October 2007) - 2 - © VULCAN-HART COMPANY...

  • Page 3: Table Of Contents

    DOOR COMPARTMENT PANELS COMPARTMENT PLUMBING BASE PANELS LOW VOLTAGE ELECTRICAL COMPONENTS HIGH VOLTAGE ELECTRICAL COMPONENTS TANK ASSEMBLY WATER SUPPLY (CLEAR HOSES) DRAIN HOSE ASSEMBLY (GREEN HOSES) HEAT EXCHANGER C24EA6 & C24EA10 STEAMER REPLACEMENT PARTS - 3 - F-35454 (October 2007)

  • Page 4: Controls

    C24EA6 & C24EA10 STEAMER REPLACEMENT PARTS PL-58570 CONTROLS F-35454 (October 2007) - 4 -...
  • Page 5 Switch Assy. (Incls. Items 1, 2, 3, 5, & 6) (Bottom Compartment Only) ... 1 00-855797-00001 Switch Assy. (Incls. Items 3, 4, 5, & 6) (Top Compartment Only)... 1 C24EA6 & C24EA10 STEAMER REPLACEMENT PARTS CONTROLS NAME OF PART - 5 - AMT.

  • Page 6: Door

    C24EA6 & C24EA10 STEAMER REPLACEMENT PARTS F-35454 (October 2007) DOOR - 6 - PL-58571...
  • Page 7 Bearing – Door Handle ... 2 00-855580-00001 Frame – Door (3-Pan) ... 1 00-855580-00002 Frame – Door (5-Pan) ... 1 C24EA6 & C24EA10 STEAMER REPLACEMENT PARTS DOOR NAME OF PART -20 x 1 Hex Socket Hd..2 Phil. Pan Hd..4 Helical...

  • Page 8: Compartment Panels

    C24EA6 & C24EA10 STEAMER REPLACEMENT PARTS 1 - 2 1 2 - 1 3 5 - 6 1 7 - 1 8 PL-58585 COMPARTMENT PANELS F-35454 (October 2007) - 8 -...
  • Page 9 Panel – Cabinet Flue Base ... 1 00-855316-00001 Apron – Cabinet ... 1 PB-004-38 Plug – Button ... 1 C24EA6 & C24EA10 STEAMER REPLACEMENT PARTS COMPARTMENT PANELS NAME OF PART -20 ... 2 -20 ... 4 Hex Washer Hd., Type AB ... 4 Hex Washer Hd., Type AB ...

  • Page 10: Compartment

    C24EA6 & C24EA10 STEAMER REPLACEMENT PARTS 1 - 2 2 5 - 2 6 PL-58572 COMPARTMENT F-35454 (October 2007) - 10 -...
  • Page 11 Cover – Drain ... 1 00-855779-00001 Compartment – Insulation (3-Pan) ... 1 00-855779-00002 Compartment – Insulation (5-Pan) ... 1 C24EA6 & C24EA10 STEAMER REPLACEMENT PARTS COMPARTMENT NAME OF PART (Brass) (Incls. Nuts) ... 1 Hose by NPT (Brass) ... 1 Slotted Rd.

  • Page 12: Plumbing

    C24EA6 & C24EA10 STEAMER REPLACEMENT PARTS PL-58574 F-35454 (October 2007) 2 - 3 3 3 - 3 4 2 0 T H R U 2 3 PLUMBING - 12 -...
  • Page 13 Elbow – Pipe 00-855394-00001 Adapter – Cabinet Steam Port ... 1 00-856753-00001 Steam Port – Compartment ... 1 C24EA6 & C24EA10 STEAMER REPLACEMENT PARTS PLUMBING NAME OF PART x 90 Deg. (Brass)... 1 ) ... 1 x 90 Deg. (Brass)... 1 x 8 TBE (Brass) ...

  • Page 14: Base Panels

    C24EA6 & C24EA10 STEAMER REPLACEMENT PARTS PL-58536 BASE PANELS F-35454 (October 2007) - 14 -...
  • Page 15 Foot – Leg & Flange ... 4 00-855663-00002 Panel – Front ... 1 00-857311-00001 Bracket – Drain Support ... 1 C24EA6 & C24EA10 STEAMER REPLACEMENT PARTS BASE PANELS NAME OF PART Slotted Truss Hd. (SST) ... 4 -20 x Hex Hd. (SST) ...AR -20 ...AR...

  • Page 16: Low Voltage Electrical Components

    C24EA6 & C24EA10 STEAMER REPLACEMENT PARTS PL-58533 LOW VOLTAGE ELECTRICAL COMPONENTS F-35454 (October 2007) - 16 -...
  • Page 17 Fuse – Power (KTK-R-3) (3 Amp., 600 V.) (Time Delay) ... 2 SD-019-29 Self-Tapping Screw 6-20 x 00-855028-00001 Block – Fuse ... 1 C24EA6 & C24EA10 STEAMER REPLACEMENT PARTS NAME OF PART Phil. Pan Hd., Type B ... 4 In.)... 2 Phil. Pan Hd..2 -20 x Hex Hd.

  • Page 18: High Voltage Electrical Components

    C24EA6 & C24EA10 STEAMER REPLACEMENT PARTS PL-58532 HIGH VOLTAGE ELECTRICAL COMPONENTS F-35454 (October 2007) - 18 -...
  • Page 19 SD-019-29 Self-Tapping Screw 6-20 x 00-856699-00001 Switch – Relay (120 V.) ... 1 C24EA6 & C24EA10 STEAMER REPLACEMENT PARTS NAME OF PART Phil. Truss Hd. (SST) ... 1 Phil. Pan Hd., Type B ... 2 Phil. Pan Hd., Type B ... 2 Phil.

  • Page 20: Tank Assembly

    C24EA6 & C24EA10 STEAMER REPLACEMENT PARTS 3 - 4 - 5 3 2 - 3 3 PL-58534 TANK ASSEMBLY F-35454 (October 2007) - 20 -...
  • Page 21 Clamp – Hose ... 1 FP-090-83 Fitting – Hose (Brass) ... 1 FP-016-12 Elbow – Reducing C24EA6 & C24EA10 STEAMER REPLACEMENT PARTS TANK ASSEMBLY NAME OF PART -18 Hex (Brass) ... 1 -18 Hex (Brass) ... 1 -18 Hex (Brass) ... 1 (Brass)...

  • Page 22: Water Supply (Clear Hoses)

    C24EA6 & C24EA10 STEAMER REPLACEMENT PARTS 4 5 4 4 F-35454 (October 2007) WATER SUPPLY (CLEAR HOSES) - 22 - PL-58605...
  • Page 23 Fitting – Hose (Brass) ... 1 00-557844 Clamp – Hose ... 1 00-557681 Hose (Clear 20 In.) ...AR C24EA6 & C24EA10 STEAMER REPLACEMENT PARTS WATER SUPPLY (CLEAR HOSES) NAME OF PART Phil. Truss Hd. (SST) ... 2 Phil. Truss Hd. (SST) ... 2 Barb ...

  • Page 24: Drain Hose Assembly (Green Hoses)

    C24EA6 & C24EA10 STEAMER REPLACEMENT PARTS To To p C a v i t y To B o t t o m C a v i t y 3 - 4 PL-58540 DRAIN HOSE ASSEMBLY (GREEN HOSES) F-35454 (October 2007)
  • Page 25 Fitting – Hose (Brass) ... 1 00-557847 Clamp – Hose ... 1 00-557477 Hose (Green 12 00-557847 Clamp – Hose ... 1 C24EA6 & C24EA10 STEAMER REPLACEMENT PARTS NAME OF PART TBE (Brass) ... 1 ... 1 In.) ...AR - 25 - AMT.

  • Page 26: Heat Exchanger

    C24EA6 & C24EA10 STEAMER REPLACEMENT PARTS 6 T H R U 9 PL-58537 HEAT EXCHANGER F-35454 (October 2007) - 26 -...
  • Page 27 Hose (White 13 00-857055-00001 Insulation – Heat Exchanger ... 1 00-857277-00001 Clamp – Hose ... 2 C24EA6 & C24EA10 STEAMER REPLACEMENT PARTS HEAT EXCHANGER NAME OF PART x 90 Deg. (Brass)... 1 x 2 TBE (Brass) ... 1 TBE (Brass) ... 1 In.) (Steam To Generator) ...AR...
  • Page 28 C24EA6 & C24EA10 STEAMER REPLACEMENT PARTS FORM 35454 OCTOBER 2007 PRINTED IN U.S.A.
