Vulcan-Hart VHX24D Specifications

SPECIFICATIONS:
Direct steam convection steamer, Vulcan-Hart Model No.
(VHX24D)(VHX24D5). Convection steamer mounted on 28"
high base cabinet with stainless steel frame, front full height
doors, slip-off stainless steel side and aluminized rear panel
with 6" adjustable legs with flanged feet for anchoring. Two
stainless steel cooking compartments with coved interior corners.
1 1 / " drain in each compartment. Heavy duty stainless steel
4
"slammable" doors can be opened and closed at anytime during
the cooking cycle. Steam shuts off when door(s) are opened.
15 psi pressure relief valve and 15 psi kettle connection. Direct
steam supply at 10 - 50 psi with flow of 138 lbs. steam/hr.
Compartment controls include 60 minute dial timer with buzzer,
green "ready" and red "cooking" indicator lights. Stainless steel
cover flue. Service connections include
1
for boiler feed and / " cold water condenser, 120 volt control
8
1
circuit and 1 / " drain connection.
4
Exterior dimensions: 24"w x 35.4"d x (60.37)(73")"h.
CSA design certified. Classified by U L to NSF Std. #4.
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028
F-32567 (10-03)
1
/ " cold water connection
2
502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602
Item # __________________________

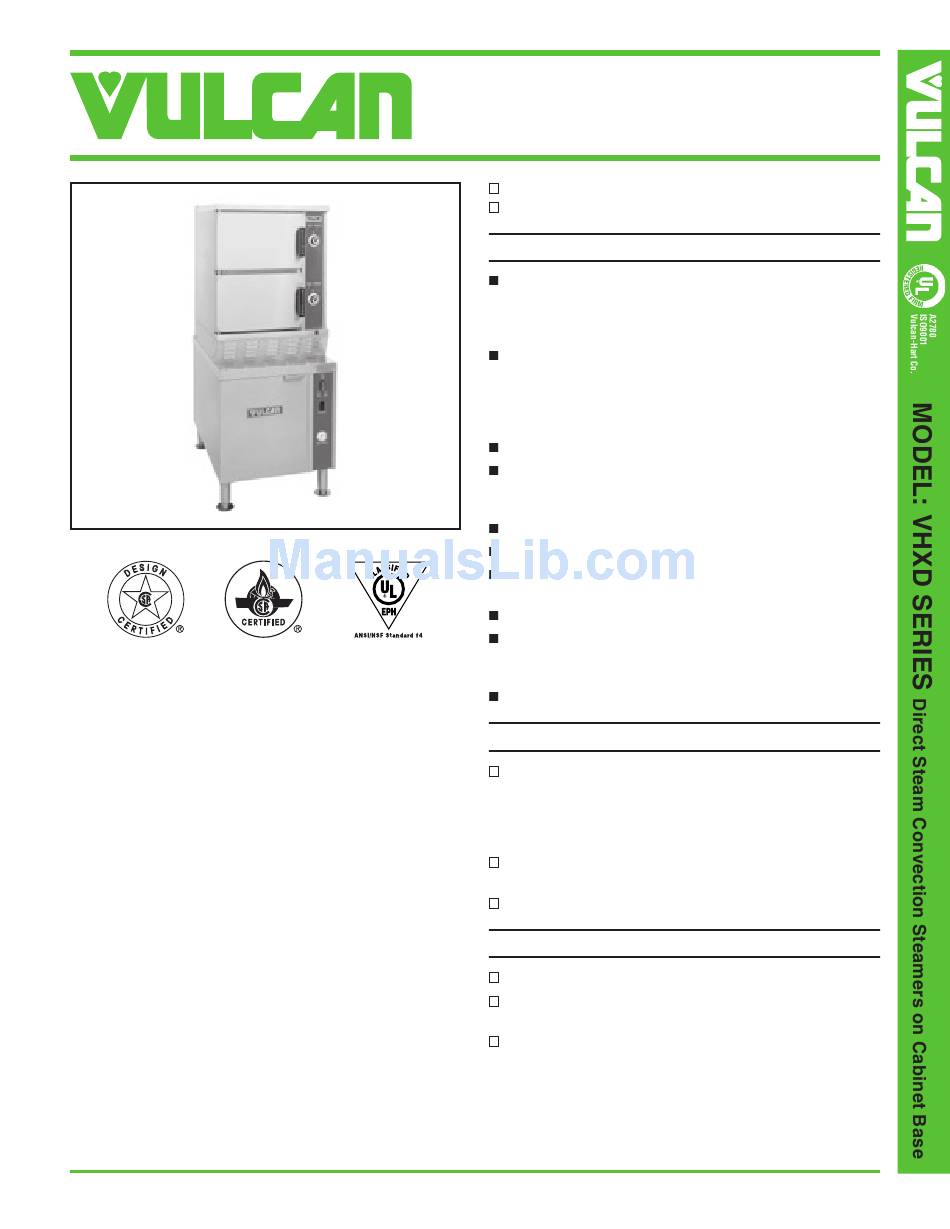

VHXD SERIES
DIRECT STEAM CONVECTION STEAMERS ON
CABINET BASE
VHX24D 6 pan capacity
VHX24D5 10 pan capacity
STANDARD FEATURES
Convection steamer mounted on 28" high base cabinet with
stainless steel frame, front full height doors, slip-off stainless
steel side and aluminized rear panel with 6" adjustable legs
with flanged feet for anchoring.
Two stainless steel cooking compartments with coved interior
corners. Each compartment accepts:
- 1" deep pans (6 - VHX24D)(10 - VHX24D5)
- 2 1 / " deep pans (3 - VHX24D)(5 - VHX24D5)
2
- 4" deep pans (2 - VHX24D)(3 - VHX24D5)
1
1 / " compartment drain.
4
Heavy duty stainless steel "slammable" doors can be opened
and closed at anytime during the cooking cycle. Steam shuts
off when door(s) are opened.
15 psi pressure relief valve and 15 psi kettle connection.
Direct steam supply at 10 - 50 psi with flow of 138 lbs. steam/hr.
Compartment controls include 60 minute dial timer with
buzzer, green "ready" and red "cooking" indicator lights.
Stainless steel flue cover.
Service connections include,
boiler feed and 1 / " cold water condenser, 120 volt control
8
circuit and 1 1 / " drain connection. (See detail on back page.)
4
One year limited parts and labor warranty.
OPTIONS
Correction facility package:
a. Cabinet door with hasp (lock by others).
b. Control cover (lock by others).
c. Tamper resistant fasteners.
d. Flue riser cover.
Mount and interconnect boiler base with kettle at factory.
Includes steam supply piping. Shipped on one skid.
Second year extended limited parts and labor warranty.
ACCESSORIES
Stainless steel back panel.
Interconnecting steam supply plumbing between VHX and
freestanding kettle. Kettle must be within 2 feet to left or right.
Removable sliding shelf. Qty.___.
C.S.I. Section 11420
1 / " cold water connection for
2
