Vulcan-Hart MHB24E Specifications

SPECIFICATIONS:
Modular electric boiler, Vulcan-Hart Model No. MHB24E.
Cabinet with stainless steel frame, front full height doors, slip-off
stainless steel side and aluminized rear panel with 6" adjustable
legs with flanged feet for anchoring. 24 KW steam boiler builds
2.3 BHP. Includes CSD-1 compliant high pressure limit switch
(15 psi), low water cut-off, automatic water fill, automatic
generator blowdown, 15 psi pressure relief valve and 15 psi
kettle connection. Stainless steel cover flue. Service connec-
1
tions include / " cold water connection for boiler feed ,
2
water condenser and 1 1 / " drain connection.
4
Exterior dimensions: 24"w x 35.4"d x 41.5"h.
U L listed. U L listed to Canadian safety standards. Classified by
U L to NSF Std. #4.
Meets ASME code.
SPECIFY TYPE OF GAS WHEN ORDERING.
SPECIFY ALTITUDE WHEN ABOVE 2,000 FT.
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028
F-32574 (8-04)
1
/ " cold
8
502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602
Item # __________________________

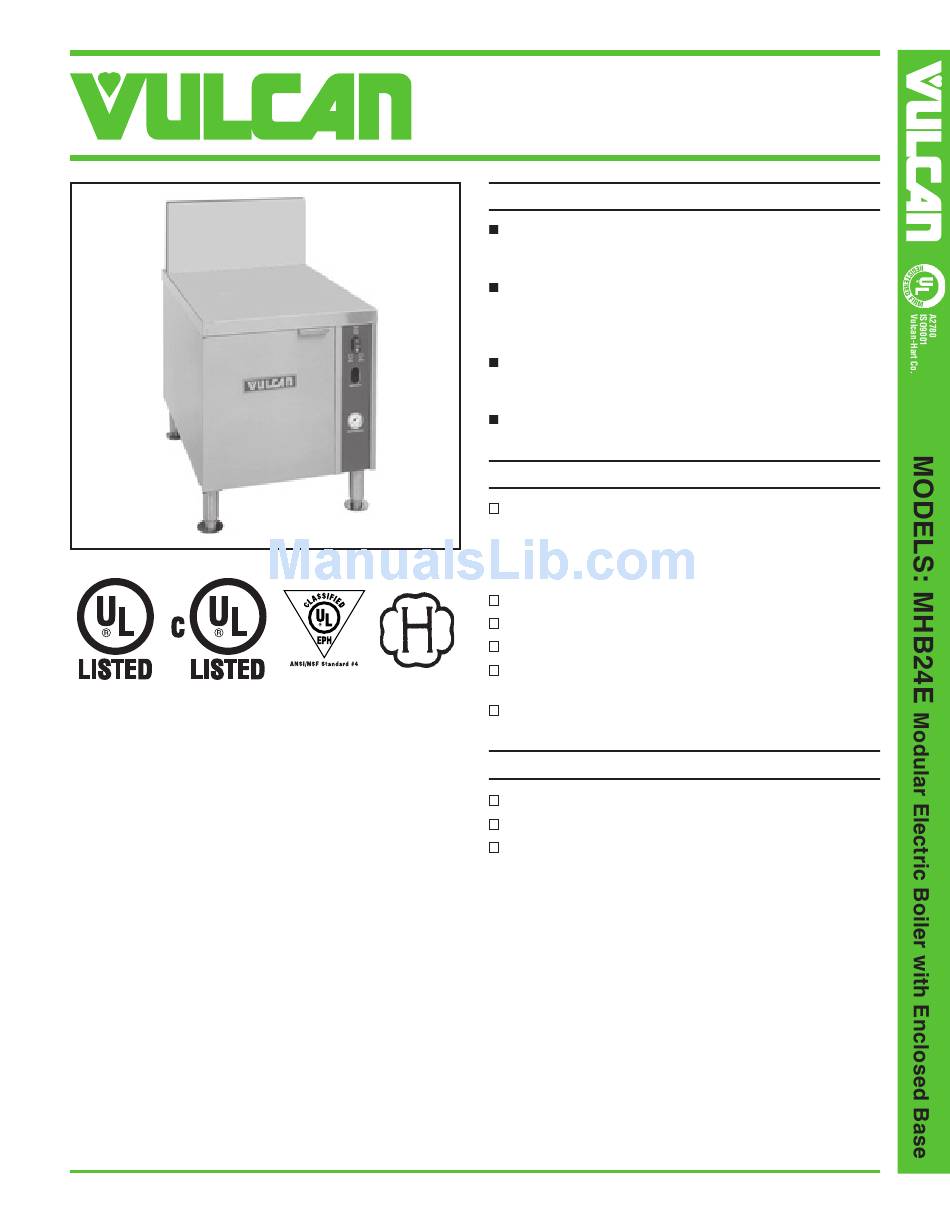

MODEL MHB24E
MODULAR ELECTRIC BOILER
WITH ENCLOSED BASE
STANDARD FEATURES
Cabinet with stainless steel frame, front full height doors,
slip-off stainless steel side and aluminized rear panel with
6" adjustable legs with flanged feet for anchoring.
24 KW electric steam boiler builds 2.3 BHP. Includes CSD-1
compliant high pressure limit switch (15 psi), low water cut-off,
automatic water fill, automatic generator blowdown, 15 psi
pressure relief valve and 15 psi kettle connection.
Service connections include
1
boiler feed, / " cold water condenser and 1
8
tion. (See detail on back page.)
One year limited parts and labor warranty.
OPTIONS
Correction facility package:
- Cabinet door with hasp (lock by others).
- Control cover (lock by others).
- Tamper resistant fasteners.
- Flue riser cover.
36 KW, 208 or 240 volt, 60 Hz, 3 phase.
42 KW, 208, 60 Hz, 3 phase.
48 KW, 240 volt, 60 Hz, 3 phase.
Mount and interconnect boiler base with kettle at factory.
Includes steam supply piping. Shipped on one skid.
Second year extended limited parts and labor warranty.
ACCESSORIES
Stainless steel back panel.
Interconnecting steam supply plumbing kit.
Water treatment system.
C.S.I. Section 11420
1
/ " cold water connection for
2
1
/ " drain connec-
4
