SPECIFICATIONS:
Gas fired boiler Super Steamer, Vulcan-Hart Model No. (VHL2E)
(VHL3E). 6 psi pressure steam cooker. Cooker body is 8 gauge
satin finish type 304 stainless steel exterior. Doors have a
removable aluminum alloy inner liner with full perimeter gasket
and sealed by turning a "T" type handle. The door cannot be
opened while the steamer is on. Automatic timed compartment
controls with 60 minute timer, add the suffix "S" to the model
number. Lift-out stainless steel wire Adapt-A-Pan
eight 2 1 / ", six 4", or four 6" deep food pans (one for 2 compart-
2
ments)(two for 3 compartments) and one manual pull out shelf.
Water fall compartments interior bottom to lip out at front.
Steamer mounted on 28" high base cabinet with stainless steel
frame, front full height doors, slip-off stainless steel sides and
aluminized rear panel with 6" adjustable legs with flanged feet for
anchoring. 24 KW steam boiler builds 2.3 BHP. Includes CSD-1
compliant high pressure limit switch (15 psi), low water cut-off,
automatic water fill, automatic boiler blowdown, 15 psi pressure
relief valve and 15 psi kettle connection. Service connections
include: 1 / " water connection for boiler feed and
2
condenser and 1 1 / " drain connection.
4
Exterior dimensions:
VHL2E: 36"w x 35 7 / "d x 65"h.
16
7
VHL3E: 36"w x 35 / "d x 80"h.
16
SPECIFY TYPE OF GAS WHEN ORDERING.
SPECIFY ALTITUDE WHEN ABOVE 2,000 FT.
UL listed. UL classified to Canadian safety standards. Classified
by U L to NSF Std. #4. Meets ASME code.
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028
F-32573 (8-04)
TM
supports
1 / " cold water
2
502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602
Item # __________________________

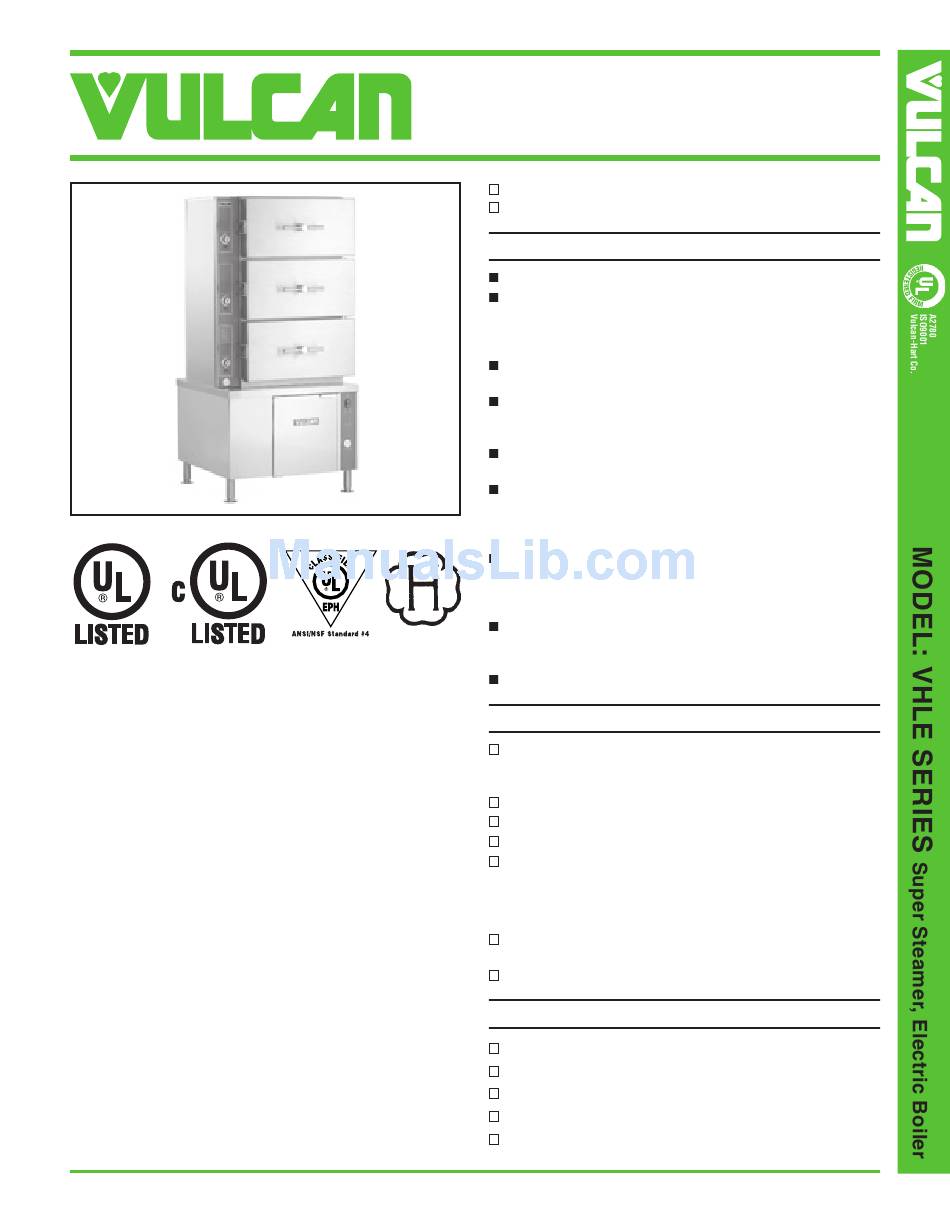

VHLE SERIES
SUPER STEAMER, ELECTRIC BOILER
TWO OR THREE COMPARTMENT MODELS
VHL2E (S) (P) 2 compartments
VHL3E (S) (P) 3 compartments
STANDARD FEATURES
6 psi pressure steam cooker.
Cooker body is 8 gauge satin finish type 304 stainless steel
exterior. Doors have a removable aluminum alloy inner liner
with full perimeter gasket and sealed by turning a "T" type
handle. The door cannot be opened when the steamer is on.
Automatic timed compartment controls with 60 minute timer
add the suffix "S" to the model number.
Lift-out stainless steel wire Adapt-A-Pan
six 4" or four 6" deep food pans (one for 2 compartments)(two
for 3 compartments) and one manual pull out shelf.
Water fall front edge compartment interior bottom to lip out at
front.
Steamer mounted on 28" high base cabinet with stainless
steel frame, front full height doors, slip-off stainless steel
sides and aluminized rear panel with 6" adjustable legs with
flanged feet for anchoring.
24 KW electric steam boiler builds 2.3 BHP. Includes CSD-1
compliant high pressure limit switch (15 psi), low water cut-off,
automatic water fill, automatic boiler blowdown, 15 psi pres-
sure relief valve and 15 psi kettle connection.
Service connections include
1
boiler feed and / " cold water condenser and 1
2
connection.
One year limited parts and labor warranty.
OPTIONS
TM
PreVent , automatic load compensated timed, combination
pressure and free venting cooking with automatic exhaust,
add the suffix "P" to the model number.
36 KW, 208 or 240 volt, 60 Hz, 3 phase.
42 KW, 208 volt, 60 Hz, 3 phase.
48 KW, 240 volt, 60 Hz, 3 phase.
Correction facility package:
a. Cabinet door with hasp (lock by others).
b. Security type tamper resistant fasteners.
c. Control cover (lock by others).
Mount and interconnect boiler base with kettle at factory.
Includes steam supply piping. Shipped on one skid.
Second year extended limited parts and labor warranty.
ACCESSORIES
Interconnecting steam supply plumbing kit.
Manual sliding shelf (Qty. ____).
Removable 12 x 20 sliding shelf (Qty.____).
Adapt-A-Pan™ support (Qty. ____).
Water treatment system.
C.S.I. Section 11420
TM supports eight 2 1 / ",
2
1 / " cold water connection for
2
1
/ " drain
4
