- Page 1 MY23 VelectriX Instruction Manual (rear hub series) • Ascent 29 • Compact • Urban+ • Urban+ ST • Cruiser • Cruiser ST • Newtown...
-
Page 2: Table Of Contents
Contents Safe Riding Recommendations Page 2 Pre-Ride Checklist Page 3 Display and Controls Pages 4-7 Battery Instructions Page 8-12 Maintenance Pages 13 Warranty Page 14-16 Model Specification Pages 17-23 Page 1... -
Page 3: Safe Riding Recommendations
Safe Riding Recommendations Please ensure you are familiar with and follow all traffic laws and regulations for your state. Please remember you may need to review these when travelling interstate. Always wear a helmet when riding your bike. Don’t lend your bike to anyone who is unfamiliar with it. As with all bikes it is important that you stay within safe limits and speeds. -
Page 4: Pre-Ride Checklist
Pre-Ride Checklist Check over the bike for any loose nuts, bolts, or fixings. Check the tyre pressure. Please always refer to the tyre manufactures suggested levels on the side of the tyre. Check the tyres for any visible damage, wear and tear or bald spots. -
Page 5: Display And Controls Pages

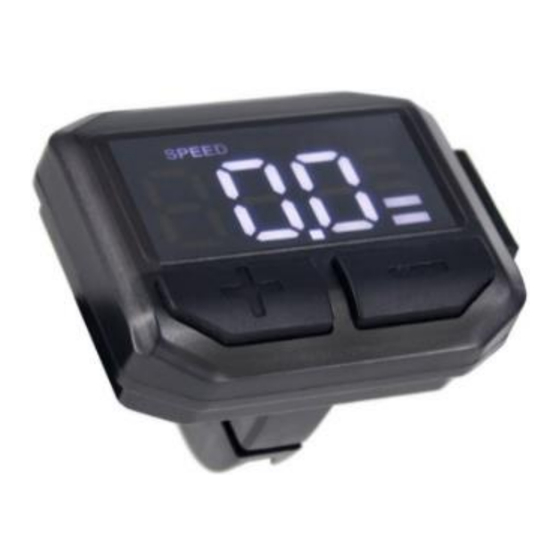

LCD Display and Controls The display is mounted on the left side of the handlebar and is controlled with 3 (Up) and (down) easy to use buttons, Power, LCD Display Operation Power On/Off Hold the “Power” button down for 1 second to start display and supply power to the motor controller. - Page 6 User Interface When the display is turned on, the screen will look as below. Trip & Odometer Functions Pressing the “Power” button will allow you to access the “Trip” and “Odometer” functions. The “Trip” distance can be cleared by pressing and holding both “Power” & buttons together for 2 seconds.
- Page 7 Walk Assist Press and hold the Button for 2 seconds to enable the walk assist function. Releasing the button will disable the walk assist. The walk assist feature is not a riding mode. It is designed to assist with walking the bike up an incline to a maximum of 6 kph. Light Operation (for models equipped with lights as standard) Press and hold the...
- Page 8 Power Assist Adjustment There are 5 levels of Power Assist. Level 1 is the slowest setting, and level 5 is the fastest. For example, level 1 will power to an approximate speed of 13-14 kph, level 2 to approximately 18 kph, and so on with a maximum assist speed in level 5 at 25 kph.
-
Page 9: Battery Instructions
Battery Instructions To check how much charge the battery has, press the button on the battery top. The battery charge light will illuminate. The colour of the LED indicates the level of battery charge: Blue More than 90% charge Green 40 –... - Page 10 Battery Care Rechargeable Lithium-Ion batteries have a limited life and will gradually lose their capacity to hold a charge. This loss of capacity (ageing) is irreversible. As the battery loses capacity, the length of time it will power the bike (ride time) decreases. The typical estimated “healthy life” of a Lithium-Ion battery is about three years or 500 charge cycles, whichever occurs first.
- Page 11 If you are charging your battery on the bike, with the bike turned off, insert the charging plug into the charging port on the bike. Connect the battery charger power plug to the mains power outlet and switch the mains power on.
- Page 12 If a battery is stored or otherwise unused for an extended period, • be sure to follow the storage instructions in this document. If you do not follow the instructions, and the battery has no charge remaining when you check it, consider it to be damaged. Do not attempt to recharge it or to use it.
- Page 13 Keep the battery away from children. • Avoid exposing the battery to excessive shock or vibration • Do not use a damaged battery. • Cleaning & Care We recommend using a damp cloth to clean the outside of the battery shell only.
-
Page 14: Maintenance Pages
Maintenance Your VelectriX bike should be returned to your servicing dealer for servicing and a thorough inspection once every 9 months or 1500kms, whichever comes first. Excluding the electronics, motor, battery and wiring, your VelectriX e-bike is a normal bike, with normal components. -
Page 15: Warranty
Warranty This warranty is provided by VelectriX Pty Ltd. VelectriX warrants its products, including all individual components against defects in material or workmanship as follows: Warranty Conditions The warranty period is not renewed or extended as a result of a warranty repair or replacement. - Page 16 Controller *The battery warranty will exclude damage from: Over charging or power surges The use of an improper, non-approved VelectriX charger Any other misuse, abnormal wear and tear, physical damage or water damage Age related reduction in the capacity of the battery is normal and unavoidable and as such does not constitute a fault.
- Page 17 Damage caused from competitive use, stunt riding or exceeding the bikes carrying capacity. How To Make a Warranty Claim If you believe your VelectriX product is faulty or defective, please contact the authorised VelectriX reseller/dealer from where the bike was purchased and explain the issue.
- Page 18 Model Specification Ascent 29” FRAME Aluminium mountain bike frame COLOUR Silver, Midnight SIZES 45cm, 50cm, 55cm FORK 29" 100mm travel suspension forks RIMS Double wall, 29" 13 gauge, 36 holes TYRES Kenda Honey Badger XC 29" x 2.2" HANDLEBARS Zoom MTB handlebars STEM Promax fixed stem, 100mm extension SEAT POST...
- Page 19 Urban+ Mens FRAME Aluminium Urban frame COLOUR Grey SIZES 45cm, 51cm, 56cm FORK 27.5" 80mm travel suspension forks RIMS Double wall, 27.5" 13 gauge, 36 hole TYRES Kenda Komfort 27.5" x 1.95" K-Shield protection & reflective strip HANDLEBARS Zoom MTB handlebar STEM Promax adjustable, 100mm extension SEAT POST...
- Page 20 Urban+ Step Through FRAME Aluminium Urban low step through frame COLOUR Ocean SIZES 42cm, 46cm FORK 27.5" 80mm travel suspension forks RIMS Double wall, 27.5" 13 gauge, 36 hole TYRES Kenda Komfort 27.5" x 1.95" K-Shield protection & reflective strip HANDLEBARS Zoom city handlebar STEM...
- Page 21 Cruiser Mens FRAME Aluminium cruiser frame COLOUR Gold, Silver SIZES 47cm, 51cm FORK Fixed forks RIMS Double wall, 27.5" 13 guage, 36 hole TYRES 27.5" x 1.95" with reflective strip (brown wall) HANDLEBARS Zoom cruiser handlebar STEM Zoom fixed stem, 80mm extension SEAT POST Zoom 30.4mm x 300mm BRAKES...
- Page 22 Cruiser Step Through FRAME Aluminium cruiser low step through frame COLOUR Blue, Rose Gold SIZES 42cm, 47cm, 52cm FORK Fixed forks RIMS Double wall, 27.5" 13 gauge, 36 hole TYRES 27.5" x 1.95" with reflective strip (brownwall) HANDLEBARS Zoom cruiser handlebar STEM Zoom fixed stem, 60/70/80mm extension SEAT POST...
- Page 23 Newtown FRAME Aluminium commuter frame COLOUR Blue SIZES 50cm, 56cm, 60cm FORK Fixed forks RIMS Double wall, 700C, 13 gauge, 36 hole TYRES 700c x 32c HANDLEBARS Zoom straight handlebar STEM Zoom fixed stem, 60mm extension SEAT POST Zoom 27.2mm x 300mm BRAKES Hydraulic disc brakes, 160mm rotors GEARS...
- Page 24 Compact FRAME Aluminium compact frame COLOUR Blue SIZES 45cm FORK Fixed forks RIMS Double wall, 20" 13 gauge, 36 hole TYRES Kenda Kontact 20" x 2.1" with reflective strip HANDLEBARS Riser bar SEAT POST 27.2mm x 400mm BRAKES Hydraulic disc brakes 160mm rotors GEARS Microshift 1 x 8 MOTOR...
