Summary of Contents for VelectriX REENTION Mini Eel

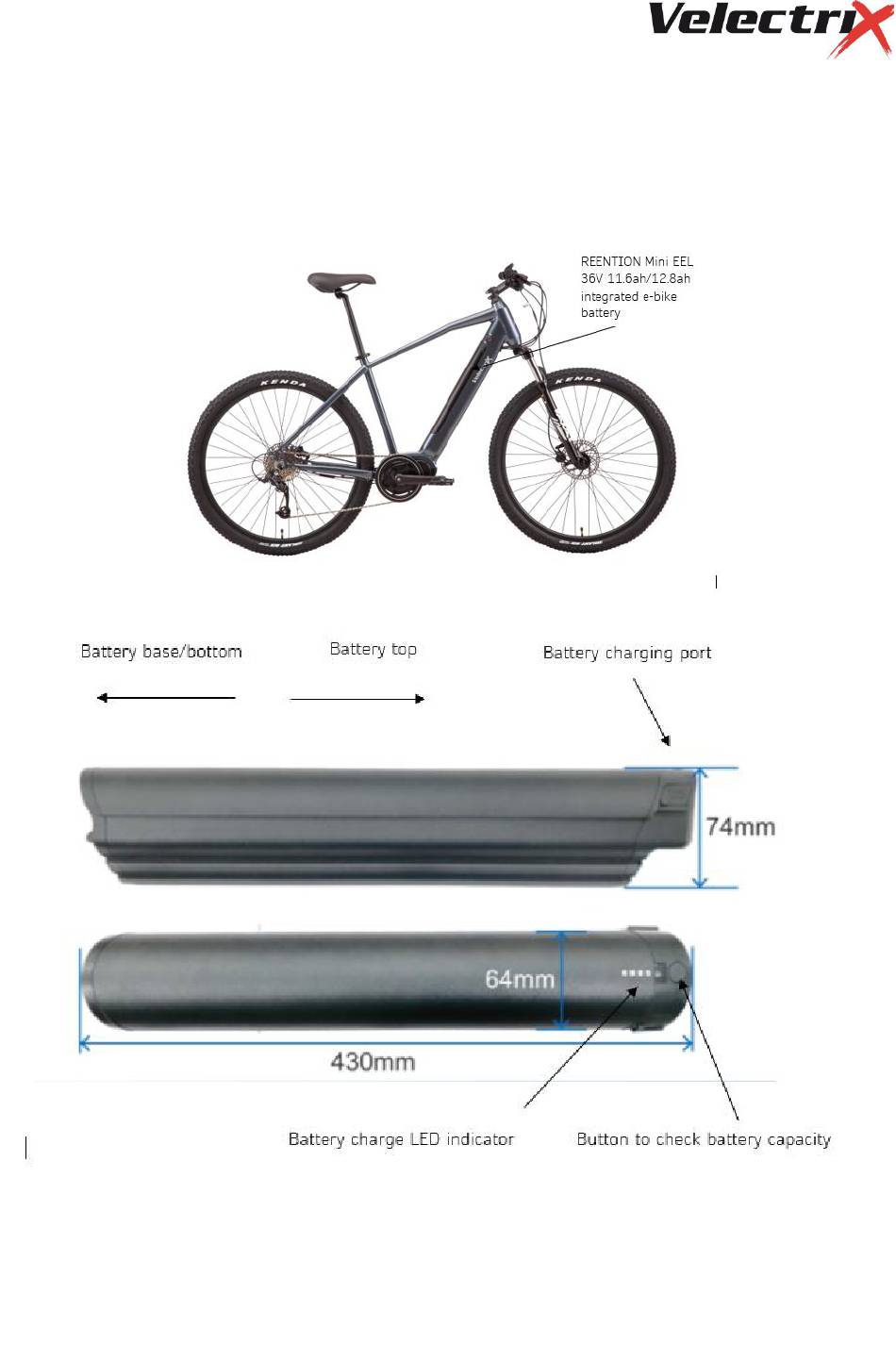

- Page 1 REENTION Mini Eel 36V 11.6ah/12.8ah E-bike Battery Guide Overview...
- Page 2 Main power connection/discharge point housed in battery top Key lock/barrel housed in bike frame To check the state of charge, press the button on the top. The colour of the LED indicates the level of battery charge: Blue: More than 90% charge Green: 40 –...
- Page 3 Removing the Battery from The Bike 1. Insert the key into the lock above the battery and turn clockwise until the battery releases 2. Gently pull the battery up and out of the bike Installing the Battery Into The Bike 1.
-
Page 4: Battery Charging Tips
Lithium batteries are safe and forgiving regarding charging. Topping up regularly is completely acceptable and can even extend battery life compared to fully discharging and recharging VelectriX E-bikes come standard with “smart” chargers. They are designed to turn off when the correct battery voltage is reached There are two lights on the charger. - Page 5 Replacing The Key Barrel/Lock 1. Remove the 5 screws from the upper battery mount 2. Slide the upper battery mount down and out of the frame 3. Push the key barrel into the frame and remove 4. Place the new key barrel into the frame and use the key (on the outside of the frame) to hold in position 5.
