- Page 1 MY23 VelectriX Instruction Manual (Mid drive series) • Ascent 29 Pulse • Ascent 29 Pulse X • Butcher Pulse • Adventurer Pulse ST • Brunswick Pulse • Compact Pulse • Urban Pulse • Urban Pulse ST • Cruiser Pulse ST...
-
Page 2: Table Of Contents
Contents Safe Riding Recommendations Page 2 Pre-Ride Checklist Page 3 Display and Controls Pages 4-7 Battery Instructions Page 8-12 Maintenance Pages 13 Warranty Page 14-16 Model Specification Pages 17-26 Page 1... -
Page 3: Safe Riding Recommendations
Safe Riding Recommendations Please ensure you are familiar with and follow all traffic laws and regulations for your state. Please remember you may need to review these when travelling interstate. Always wear a helmet when riding your bike. Don’t lend your bike to anyone who is unfamiliar with it. As with all bikes it is important that you stay within safe limits and speeds. -
Page 4: Pre-Ride Checklist
Pre-Ride Checklist Check over the bike for any loose nuts, bolts, or fixings. Check the tyre pressure. Please always refer to the tyre manufactures suggested levels on the side of the tyre. Check the tyres for any visible damage, wear and tear or bald spots. -
Page 5: Display And Controls Pages

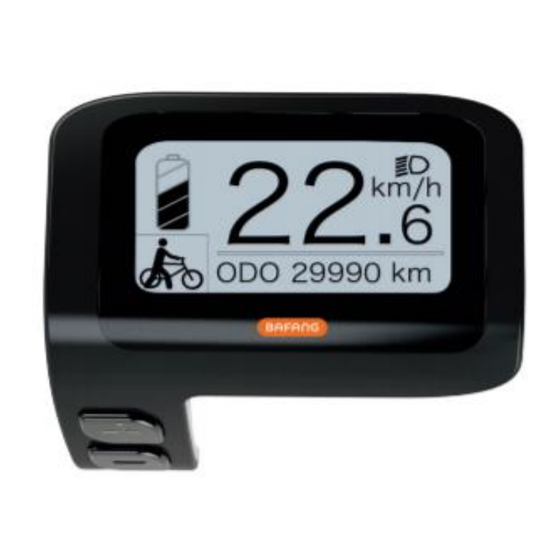

LCD Display and Controls The display is mounted on the left side of the handlebar and is controlled with 3 easy to use buttons: Power , Plus and minus LCD Display Operation Power On/Off Press and hold the button down for more than 2 seconds to start the display and supply power to the motor controller. - Page 6 User Interface 1. Battery Level Indication. 2. Power Assistance Indication. Levels 0 to 5. 0 is no assistance. 5 is maximum assistance. indicates walk mode is operational. 3. Lighting Indicator. 4. Current Speed Indicator. 5. Multi-function Indicator – Trip, Odometer, Average Speed, Range Walk Mode Press and hold the button to engage the...
- Page 7 Power Assist Level Adjustment There are 5 pedal assist settings on this bike, level 1 providing the lowest level of assisted power and level 5 the highest. Simply push the plus or minus buttons to change between the levels. Pedal assist does not work in level 0 (zero).
- Page 8 Additional Functions Briefly pressing the button will allow you to toggle through the Additional Functions such as Odometer, Maximum Speed etc. The default Function is Current trip. Trip Meter To reset the trip meter, briefly press together to enter the display setting menu.
-
Page 9: Battery Instructions
Battery Instructions To check how much charge the battery has, press the button on the battery top. The battery charge light will illuminate. The colour of the LED indicates the level of battery charge: Blue More than 90% charge Green 40 –... - Page 10 Battery Care Rechargeable Lithium-Ion batteries have a limited life and will gradually lose their capacity to hold a charge. This loss of capacity (ageing) is irreversible. As the battery loses capacity, the length of time it will power the bike (ride time) decreases. The typical estimated “healthy life” of a Lithium-Ion battery is about three years or 500 charge cycles, whichever occurs first.
- Page 11 If you are charging your battery on the bike, with the bike turned off, insert the charging plug into the charging port on the bike. Connect the battery charger power plug to the mains power outlet and switch the mains power on.
- Page 12 If a battery is stored or otherwise unused for an extended period, • be sure to follow the storage instructions in this document. If you do not follow the instructions, and the battery has no charge remaining when you check it, consider it to be damaged. Do not attempt to recharge it or to use it.
- Page 13 Keep the battery away from children. • Avoid exposing the battery to excessive shock or vibration • Do not use a damaged battery. • Cleaning & Care We recommend using a damp cloth to clean the outside of the battery shell only.
-
Page 14: Maintenance Pages
Maintenance Your VelectriX bike should be returned to your servicing dealer for servicing and a thorough inspection once every 9 months or 1500kms, whichever comes first. Excluding the electronics, motor, battery and wiring, your VelectriX e-bike is a normal bike, with normal components. -
Page 15: Warranty
Warranty This warranty is provided by VelectriX Pty Ltd. VelectriX warrants its products, including all individual components against defects in material or workmanship as follows: Warranty Conditions The warranty period is not renewed or extended as a result of a warranty repair or replacement. - Page 16 Controller *The battery warranty will exclude damage from: Over charging or power surges The use of an improper, non-approved VelectriX charger Any other misuse, abnormal wear and tear, physical damage or water damage Age related reduction in the capacity of the battery is normal and unavoidable and as such does not constitute a fault.
- Page 17 Damage caused from competitive use, stunt riding or exceeding the bikes carrying capacity. How To Make a Warranty Claim If you believe your VelectriX product is faulty or defective, please contact the authorised VelectriX reseller/dealer from where the bike was purchased and explain the issue.
- Page 18 Model Specification Ascent 29” Pulse FRAME Aluminium mountain bike frame COLOUR Olive, Jet Black SIZES 45cm, 50cm, 55cm FORK 29" 100mm travel suspension forks RIMS Double wall, 29", 13 gauge, 36 hole, with eyelets TYRES Kenda Honey Badger XC 29" x 2.2" HANDLEBARS MTB handlebar STEM...
- Page 19 Ascent 29” Pulse X FRAME Aluminium mountain bike frame COLOUR Green SIZES 45cm, 50cm, 55cm FORK RST Blaze 29" 120 mm travel suspension fork RIMS Double wall, 29" 13 gauge, 36 hole, with eyelets TYRES Maxxis REKON 29" x 2.4" HANDLEBARS MTB handlebar STEM...
- Page 20 Butcher Pulse FRAME Aluminium mountain bike frame COLOUR Gunmetal Grey SIZES 41cm, 44cm, 47cm, 50cm FORK Fixed forks RIMS Double wall, 26" 13 gauge, 36 hole TYRES Kenda Juggernaut 26" x 4.5" HANDLEBARS MTB handlebar STEM Promax 31.8mm, 85mm extension SEAT POST EXAFORM 125mm hydraulic dropper post BRAKES...
- Page 21 Adventurer Pulse FRAME Aluminium step through frame COLOUR Storm Grey SIZES 42cm, 46cm FORK RST Blaze 80mm travel suspension fork RIMS Double wall, 27.5" 13 gauge, 36 holes TYRES Kenda Booster 27.5" x 2.2" HANDLEBARS MTB handlebar STEM ZOOM adjustable stem SEAT POST EXAFORM 100mm hydraulic dropper post BRAKES...
- Page 22 Brunswick Pulse FRAME Aluminium urban frame COLOUR Green SIZES 50cm, 55cm, 60cm FORK Fixed forks RIMS Double wall, 700c" 13 gauge, 36 hole TYRES Kenda Reflex 700c x 45c with K-Shield protection HANDLEBARS Straight handlebar SEAT POST Zoom 27.2mm x 300mm BRAKES Hydraulic disc brakes, 160mm rotors GEARS...
- Page 23 Compact Pulse FRAME Aluminium compact frame COLOUR White SIZES 45cm FORK Fixed forks RIMS Double wall, 20" 13 gauge, 36 hole TYRES Kenda Kontact 20" x 2.1" with reflective strip HANDLEBARS Riser bar 75mm STEM Zoom adjustable SEAT POST Zoom 27.2mm x 400mm BRAKES Hydraulic disc brakes, 160mm rotors GEARS...
- Page 24 Urban Pulse FRAME Aluminium urban frame COLOUR Blue SIZES 45cm, 51cm, 56cm FORK 27.5" 80mm travel suspension forks RIMS Double wall, 27.5" 13 gauge, 36 hole TYRES Kenda Komfort 27.5" x 1.95" with K-Shield protection HANDLEBARS Straight handlebar STEM Promax adjustable stem SEAT POST Promax 27.2mm x 300mm BRAKES...
- Page 25 Urban Pulse ST FRAME Aluminium urban step through frame COLOUR Blue SIZES 42cm, 46cm FORK 27.5" 80mm travel suspension forks RIMS Double wall, 27.5" 13 gauge, 36 hole TYRES Kenda Komfort 27.5" x 1.95" with K-Shield protection HANDLEBARS City handlebar STEM Promax adjustable stem SEAT POST...
- Page 26 Cruiser Pulse ST FRAME Aluminium step through cruiser frame COLOUR SIZES 42cm, 47cm, 52cm FORK Fixed forks RIMS Double wall, 27.5" 13 gauge, 36 hole TYRES 27.5" x 1.95" with brown wall HANDLEBARS Cruiser handlebars STEM ZOOM fixed stem 17 degree rise, 80mm length SEAT POST Zoom 27.2mm x 300mm BRAKES...
- Page 27 Cruiser Pulse STX FRAME Aluminium step through cruiser frame COLOUR Midnight SIZES 42cm, 47cm, 52cm FORK Fixed forks RIMS Double wall, 27.5" 13 gauge, 36 hole TYRES 27.5" x 1.95" with brown wall HANDLEBARS Cruiser handlebars STEM ZOOM Fixed Stem 17 degree rise, 80mm length SEAT POST Zoom 27.2mm x 300mm BRAKES...
