CDVI i180SR Quick Start Manual

Manufacturing Access Control since 1985
PRODUCT PRESENTATION
Monitored
Surface
High corrosion resistance
Delivered with armature plate
No mechanical wear
Ease of installation
Recommended for exterior use
Fail safe (Door unlocked when power off)
Holding force: 180 kg
Built-in varistor: Built-in electronic protection to
eliminate back EMF
Dimensions (L x W x D): 175 x 32 x 22 mm
Armature plate dimensions (L x W x D): 120 x 32 x 9 mm
Power supply: 12/24V dc
Consumption: 450 mA @ 12V dc
225 mA @ 24V dc
IP66
PACKAGE CONTENT
Magnetic Armature
lock plate
1 1 1 1
Steel Guide
screw 5x35 piece
2 2 1 1
ELECTRICAL CONNECTIONS
12V dc default setup
Terminal
Correspondence
block
+ 12 or 24V dc
- 0V
NC Normally closed
C COM
NO Normally open
The N.O./N.C. signal only switches when the door is
closed with the electromagnetic lock powered
IMPORTANT NOTE
Check the jumper position before connecting the
lock to the input current. An incorrect positioning
could damage the lock. This type of damage is
not covered by the warranty.
CDVI FRANCE + EXPORT CDVI UK
31, av. du Général Leclerc [UNITED KINGDOM -
93500 PANTIN - France IRELAND]
Phone +33 (0)1 48 91 01 02 Phone +44 (0)1628 531300
www.cdvi.com www.cdvi.co.uk
CDVI SWEDEN CDVI AMERICAS
[SWEDEN - DENMARK - [CANADA - USA - LATAM]
NORWAY FINLAND] Phone +1 866 610 0102
Phone +46 (0)31 760 19 30 www.cdvi.ca
www.cdvi.se

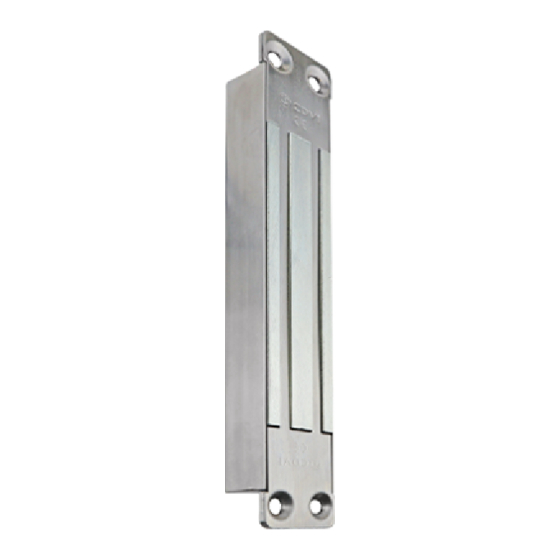

i180SR
180Kg Surface Electromagnetic Lock
Stainless Steel
WEEE & RoHS CE Certification
5x16 Steel Steel
Roll pin anchor washer
2 2 4 4 2 2
5x35 Steel
Cap nut
Screw screw nut
1 1 1 1 1 1
Voltage selection jumpers
Recommended power supplies
CDVI BENELUX
[BELGIUM - NETHERLANDS -
LUXEMBOURG]
Phone +32 (0) 56 73 93 00
www.cdvibenelux.com
CDVI SUISSE
Phone +41 (0)21 882 18 41
www.cdvi.ch
10
YEAR
WARRANTY
Rubber Hole cover
Steel strut
washer plate
1 1 2 2
Black steel
Manual
screw 5x35
1 1 1 1
12V dc 24V dc
ADC335 ADC612S/SB
CDVI IBÉRICA
[SPAIN - PORTUGAL]
Phone +34 (0)935 390 966
www.cdviberica.com
CDVI ITALIA
Phone +39 0321 90 573
Fax: +39 0321 90 8018
www.cdvi.it
MOUNTING RECOMMENDATIONS
4 4
Armature plate
- It is vital that the magnetic lock and armature
plate are securely fixed to their supports.
- The magnetic lock and the armature plate must
be aligned.
- The armature plate must be mounted "floating"
around the central mounting screw to
compensate for any misalignment of the door
OPTIONAL ACCESSORIES
Reference
Description Description
CDVI TAIWAN
Phone +886 (0)42471 2188
www.cdvichina.cn
CDVI CHINA
Phone +86 10 84606132/82
www.cdvichina.cn
CDVI MAROC
Phone +212 5 2248 0940
www.cdvi.ma
EN
Screw Screw
Steel anchor Steel anchor
Maglock Maglock
Hole cover plate Hole cover plate
Armature plate Armature plate
Roll pin Roll pin
Rubber washer Rubber washer
Steel washer Steel washer
Cap nut Cap nut
ZL180
"ZL" Bracket for "ZL" Bracket for
180kg maglocks 180kg maglocks
