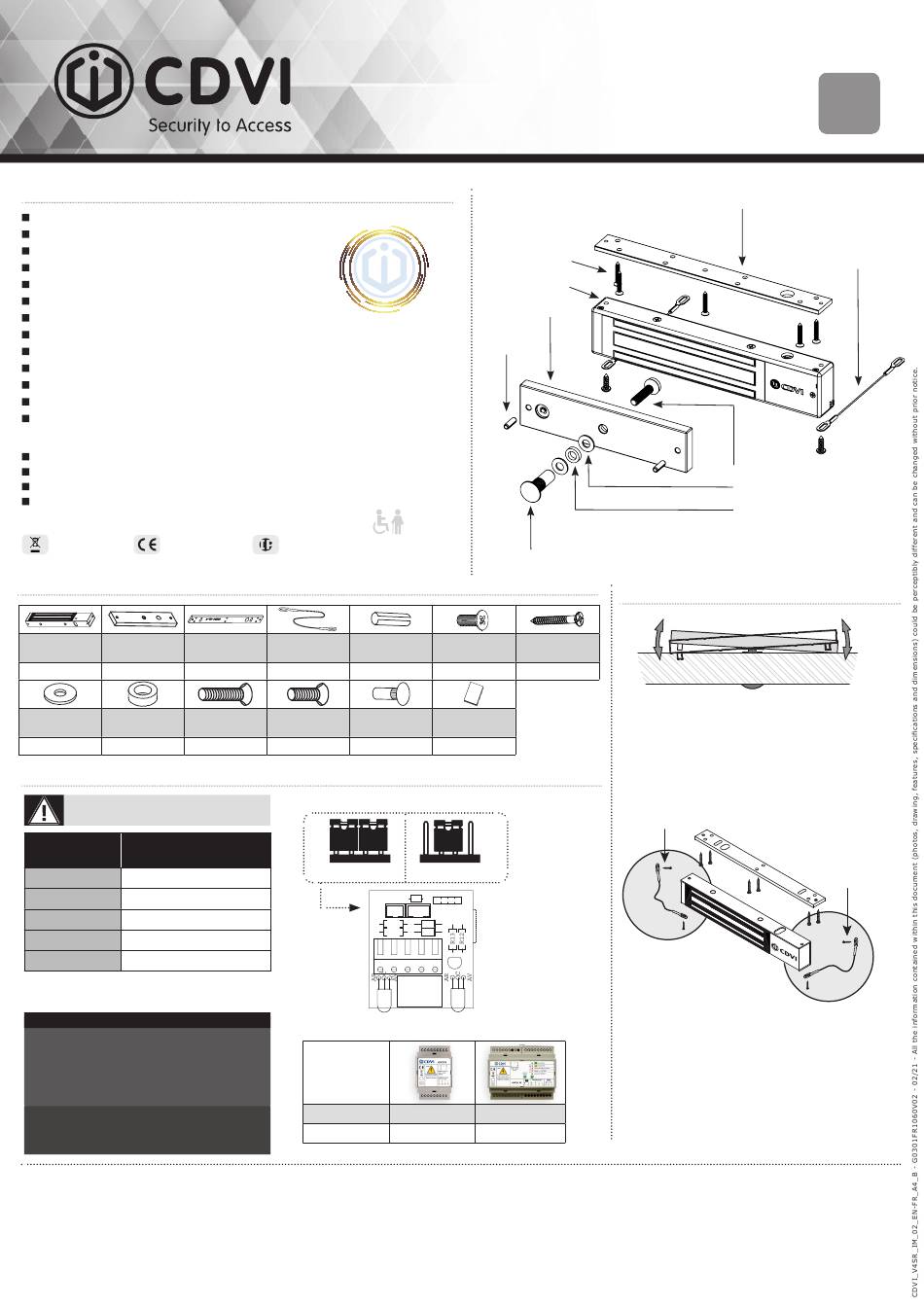

CDVI V4SR Quick Start Manual

PRODUCT PRESENTATION
NF S61-937
Monitored
Surface mount
High corrosion resistance
Security rope
No mechanical wear
No residual magnetism
Ease of installation
Recommended for interior use
Fail safe (Door unlocked when power off)
Holding force: 400 kg
Visual signaling (Blue = Locked ; Green = Open)
Built-in varistor: built-in electronic protection
to eliminate back EMF
Dimensions (L x W x D): 254 x 50 x 30 mm
Armature plate dimensions (L x W x D): 185 x 45 x 12 mm
Power supply: 12/24V dc
Consumption: 500 mA @ 12V dc
250 mA @ 24V dc
DEEE & RoHS
Certification CE
PACKAGE CONTENT
Magnetic lock Armature plate
1 1
Steel washer Rubber washer M8x35 Screw
2 1
ELECTRICAL CONNECTIONS
12V dc Default setup
Terminal
Correspondence
block
+
12 or 24V dc
- 0V
N.C NC (Normally closed)
COM
COM
N.O NO (Normally open)
The NO/NC signal only switches when
the door is closed with the power to it on.
IMPORTANT NOTE
- Check the jumper position before connecting
the lock to the input current. A wrong position
could damage the lock. This type of damage
is not covered by the warranty.
- Make sure that the magnet and the armature
meet evenly over their entire mating surfaces.
The Armature plate must be able to pivot
slightly about its center mounting screw
to compensate for any door misalignment.
CDVI FRANCE + EXPORT CDVI UK
31, av. du Général Leclerc [UNITED KINGDOM - IRE-
93500 PANTIN - France LAND]
Phone +33 (0)1 48 91 01 02 Phone +44 (0)1628 531300
www.cdvi.com www.cdvi.co.uk
CDVI SWEDEN CDVI AMERICAS
[SWEDEN - DENMARK - [CANADA - USA]
NORWAY FINLAND] Phone +1 (450) 682 7945
Phone +46 (0)31 760 19 30 www.cdvi.ca
www.cdvi.se
Manufacturing Access Control since 1985
V4SR

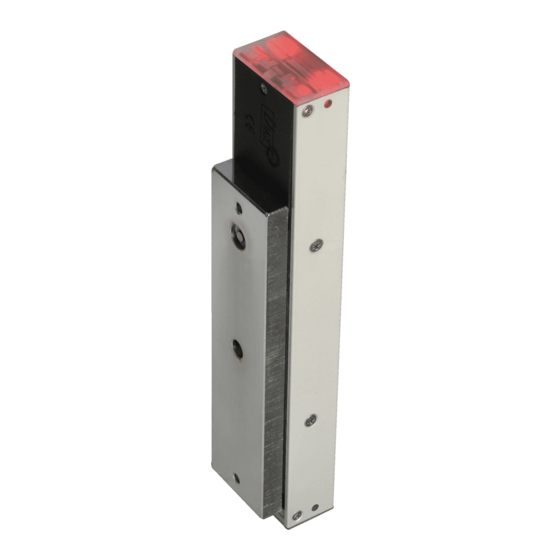

400 kg Surface Mount Electromagnetic Lock
LEDs
248
248x26x4,5mm
10
254
YEAR
WARRANTY
254x50x30mm
The V4SR is suited for the new
IP42
regulations covering assistance
to people with reduced mobility.
185x45x12mm
Fixing plate Security Rope 5x16 Roll pin
185
1 2
M8x25 Screw
1 1
Voltage selection jumpers
VUE FACE COMPOSANTS
12V dc
Recommended power supplies
COUPER A RAS LES QUEUES DES COMPOSANTS
Voltage Voltage
12V
24V 24V
CDVI BENELUX
[BELGIUM - NETHERLAND -
LUXEMBOURG]
Phone +32 (0) 56 73 93 00
www.cdvibenelux.com
CDVI SUISSE
Phone +41 (0)21 882 18 41
www.cdvi.ch
Wood screw
Magnetic lock Magnetic lock
Armature plate
Roll pin
Cap nut
Ce document est la propritété exclusive de CDVI, il ne peut être communiqué à des tiers sans son autorisation.
This document is the exclusive property of CDVI and it may not be disclosed to others without permission.
C.A. :
4x25 Wood
4X10 Screw Surface mount electromagnetic lock - 400kg
screw
Material : Aluminium
2 1
DES.: W. Sainvil
Cap nut Manual
1 1
24V dc
J1
VAR1
1
I1 J2
1 1
R7 CR5
R8 CR4
1
P1 Q2
RL2
CR2
CR1
OE
DES. VER.
ADC335 S0101D731ED6001 ADC612S
ADC324 ADC624S
IMPLANTATION
TYPE
CDVI IBÉRICA
[SPAIN - PORTUGAL]
Phone +34 (0)935 390 966
www.cdviberica.com
CDVI ITALIA
Phone +39 0321 90 573
Fax: +39 0321 90 8018
www.cdvi.it
Fixing plate Fixing plate
MOUNTING RECOMMENDATIONS
F05250000015-A
V4SR
6 General tolerance: 0.2 Surface condition: Ra 3,2
3
Vol. (mm ) : Weight (g) :
Armature plate
- It is vital that the magnetic lock and armature
plate are securely fixed to their supports.
- The magnetic lock and the armature plate must
be aligned.
- The armature plate must be mounted "floating"
around the central mounting screw to
compensate for any misalignment of the door
Security rope
The security rope
Throughout its life, the magnetic lock is subject to an
accumulation of repeated shocks and stresses at the
fixing points on the frame, frequencies of opening/
closing, (attempt to open a locked door and attempts
at vandalism) which can cause it to become detached
from the support when it is opened. In order to avoid
ED6
APPR. EDITION
the risk of the electronic lock block falling, install the
22-06-11
DATE
two safety cables supplied to guarantee the safety of
C.D.V.I
the users (see diagram above).
D731 1
PAGE
1
PAGE
CDVI TAIWAN
Phone +886 (0)42471 2188
www.cdvichina.cn
CDVI CHINA
Phone +86 10 84606132/82
www.cdvichina.cn
CDVI MAROC
Phone +212 5 2248 0940
www.cdvi.ma
EN
Security rope
M8 Screw
Steel washer
Rubber washer
Plan M1073-ens
Edition 02
SCALE 1:2
Date 05/09/2019
A3H Project : A0238005
31, av du Gal Leclerc
93691 PANTIN CEDEX
F R A N C E
Tel : 33(0)148910102
Fax : 33(0)148912121
www.cdvi.com
Security rope Security rope
