ENGLISH SVENSKA CZ3000 Self-aligning Magnetic Shearlock Infälld elektromagnet med Shearlock-funktion The installer’s choice cdvigroup.com cdvi.se...

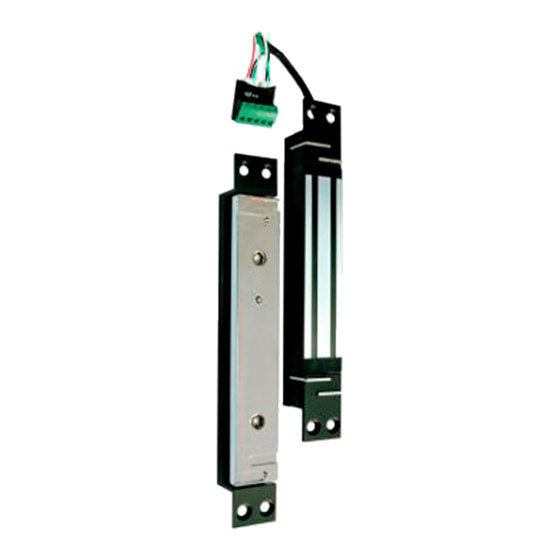

INSTALLATION MANUAL CZ3000 Self-aligning Magnetic Shearlock 1] PRODUCT OVERVIEW The CZ3000 is a Shear magnet with a patented self aligning mechanism. This magnet is mortise and monitored as standard and can be surface mounted (Surface housing kit). The magnet can be mounted on any type of doors (vertical or hori- zontal mount).
(1) with the Allen of the CZ3000 magnet. Then mark key. Mount temporarily the CZ3000. the mounting holes of the mounting Then adjust the gap between the screws.
INSTALLATION MANUAL CZ3000 Self-aligning Magnetic Shearlock C - Surface mount (Optional: KCZ3000 kit) (x8) (x2) Measure and mark the center lines to Mount the brackets of the housing on Fasten definitively the magnet on the door determining the magnet position on the the jamb and on the door leaf.
INSTALLATION MANUAL CZ3000 Infälld Elektromagnet med Shearlock-funktion 1] PRODUKTBESKRIVNING CZ3000 är en shearlockmagnet med en patenterad självinställande mekanism. Denna magnet är mortise and monitored som standard. Infälld montering, kan även monteras utanpåliggande (tillval KCZ3000) Magneten kan monteras på alla typer av dörrar (vertikal eller horisontell montering) Monteras på...
Page 9
INSTALLATION MANUAL CZ3000 Infälld Elektromagnet med Shearlock-funktion 4] MONTERINGSINSTRUKTIONER Se till att inte någon del saknas i monteringskittet. Se till att ha rätt verktyg beroende på installations typ. (borr, skruvmejsel, måttstock) och följ monteringsinstruktionerna för CZ3000. A - Trädörr Gör ett snitt i dörrbladet och i...
Page 10
INSTALLATION MANUAL CZ3000 Infälld Elektromagnet med Shearlock-funktion C - Utanpåliggande montering (Valbart : KCZ3000) (x8) (x2) Mät och märk ut mittlinjerna Montera konsolerna från den Fäst slutligen magneten på för att bestämma magnetens utanpåliggande kåpan på dörren och montera på kåpan.
