  • Page 1 YEAR WARRANTY SHL1200 Electromagnetic Shearlock Ventouse électromagnétique à cisaillement 1200kg...

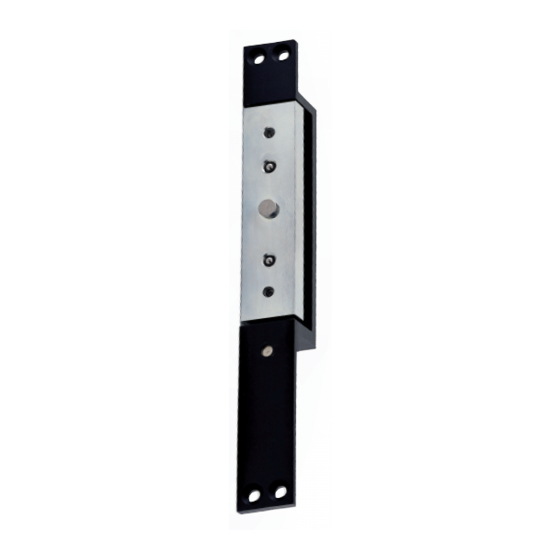

  • Page 2 SHL1200 Electromagnetic Shearlock - 1200kg 1] PRODUCT OVERVIEW The SHL1200 is a Shearlock magnet and mortice and monitored as standard and can be surface mounted (Surface housing kit). The magnet can be mounted on any type of doors (vertical or horizontal mount). Its reversibility enables you to choose between a door leaf or a door jamb mounting.
  • Page 3 Make sure that there are no pieces missing in the mounting kit. Get the right tools according to the installation type (Drill, screw drivers, metre tape,...) and follow the mounting instructions of the SHL1200. A - Wooden door A - Wooden door Make a cut on the door leaf Insert the cable of the magnet.
  • Page 4 SHL1200 Electromagnetic Shearlock - 1200kg C - Surface mounting (Optional: KSHL Kit) (x8) (x2) Measure and mark the center Mount the brackets of the housing Fix the magnet on the door and lines to determine the magnet on the jamb and on the door leaf.
  • Page 5 SHL1200 Ventouse à cisaillement - 1200kg 1] PRESENTATION DU PRODUIT La SHL1200 est une ventouse à cisaillement, disponible en version encastrée ou saillie (kit en option), est pourvue des dernières technologies de la métallurgie favorisant le positionnement sur la majorité des huisseries ou portes (en vertical ou à...
  • Page 6 A l’aide de la clé fournie ventouse et de la contre-plaque ventouse SHL1200 et son armature. dévisser les 2 écrous de blocage puis fixez-les aux pattes de mise Faites les marquages de la position (1).
  • Page 7 SHL1200 Ventouse à cisaillement - 1200kg C - Montage en saillie (Option : Kit KSHL) (x8) (x2) Faites marquages Branchez la ventouse, puis à Testez le fonctionnement de la entraxes de la ventouse sur le l’aide de la clé fournie dévisser...
  • Page 8 +39 (0) 321 90 573 www.cdvi.it CDVI MAROC +212 (0) 5 22 48 09 40 www.cdvi.ma CDVI SWEDEN [SWEDEN - DENMARK - NORWAY - FINLAND] +46 (0) 31 760 19 30 www.cdvi.se CDVI UK [UNITED KINGDOM - IRELAND] +44 (0) 1628 531300 www.cdvi.co.uk...
