Blade Brake Adjustment
Inspect the mower deck with the mower attached and PTO
rod released. The blade brake rods (A, figure 40) should
firmly contact the belt (B) at the rear of the right and left arbor
pulleys. There should be a shaft clearance between the two
brake rods in the center.
To adjust blade brake rods, loosen the mounting brackets
(C) and adjust rods for clearance. Retighten bracket bolts
and check again. Engage the PTO and be sure that brake
rods are a least 1/8" from belts.

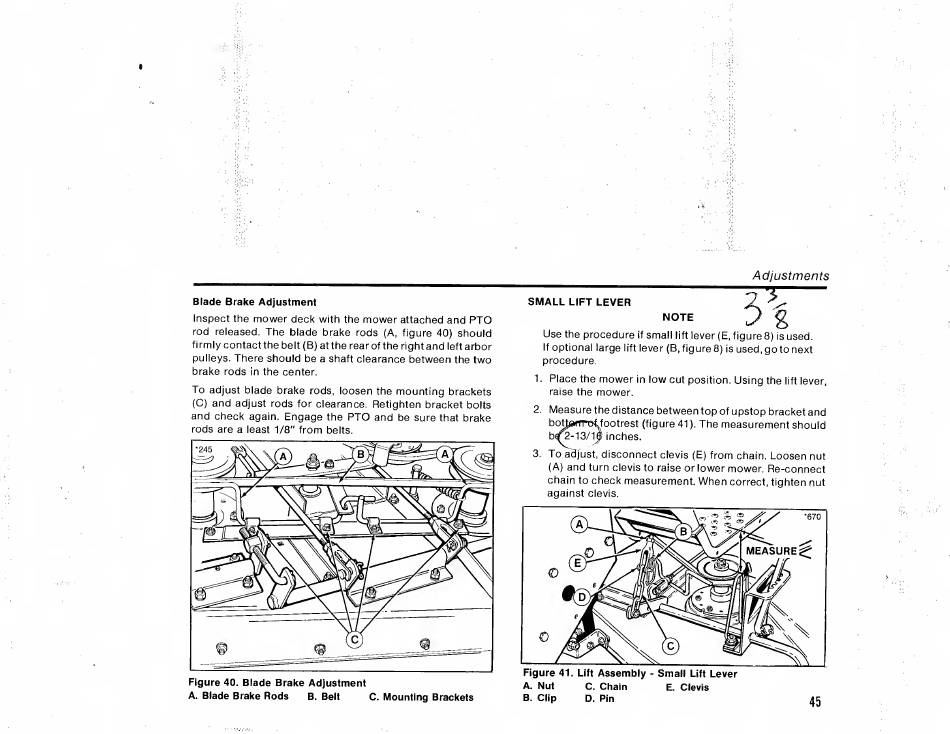

Figure 40. Blade Brake Adjustment
A. Blade Brake Rods B. Belt C. Mounting Brackets
Adjustments
SMALL LIFT LEVER
NOTE
Use the procedure if small lift lever (E, figure 8) is used.
If optional large lift lever (B, figures) is used, go to next
procedure.
1. Place the mower in low cut position. Using the lift lever,
raise the mower.
2. Measure the distance between top of upstop bracket and
botoiiTPTryootrest (figure 41). The measurement should
inches.
3. To aBjust, disconnect clevis (E) from chain. Loosen nut
(A) and turn clevis to raise or lower mower. Re-connect
chain to check measurement. When correct, tighten nut
against clevis.
Figure 41. Lift Assembly - Small Lift Lever
A. Nut C. Chain E. Clevis
B. Clip D. Pin
