Operation

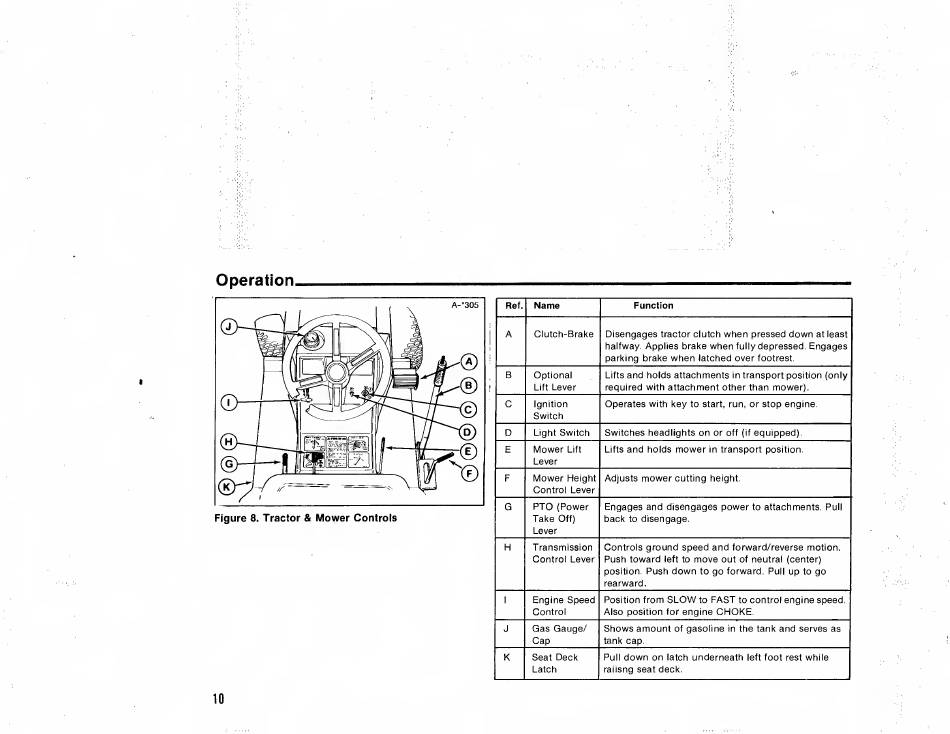

Figure 8. Tractor & Mower Controls
Ref. Name Function
A Clutch-Brake Disengages tractor clutch when pressed down at least
halfway. Applies brake when fully depressed. Engages
parking brake when latched over footrest.
B Optional
Lift Lever
Lifts and holds attachments in transport position (only
required with attachment other than mower).
C Ignition
Switch
Operates with key to start, run, or stop engine.
D
Light Switch
Switches headlights on or off (if equipped).
E Mower Lift
Lever
Lifts and holds mower in transport position.
F Mower Height
Control Lever
Adjusts mower cutting height.
G PTO (Power
Take Off)
Lever
Engages and disengages power to attachments. Pull
back to disengage.
H Transmission
Control Lever
Controls ground speed and forward/reverse motion.
Push toward left to move out of neutral (center)
position. Push down to go forward. Pull up to go
rearward.
1 Engine Speed
Control
Position from SLOW to FAST to control engine speed.
Also position for engine CHOKE.
J Gas Gauge/
Cap
Shows amount of gasoline in the tank and serves as
tank cap.
K Seat Deck
Latch
Pull down on latch underneath left foot rest while
raiisng seat deck.
10
