MOWER ADJUSTMENTS
Mower Drive Belt Tension
using he mower lift lever, lower the mower. Using the height
lace the PTO lever in engaged position. The gap between
the rod guide (A, figure 34) and the set collar (B) should
measure 3/8 to 1/2 inch (10 to 13 mm). If not. disengage the
PTO. Loosen the setscrew (C). Move the rod forward to
ncrease the gap or back to decrease the gap then tighten the
R^adi'u^T f
adjustment.
Headjust if necessary.

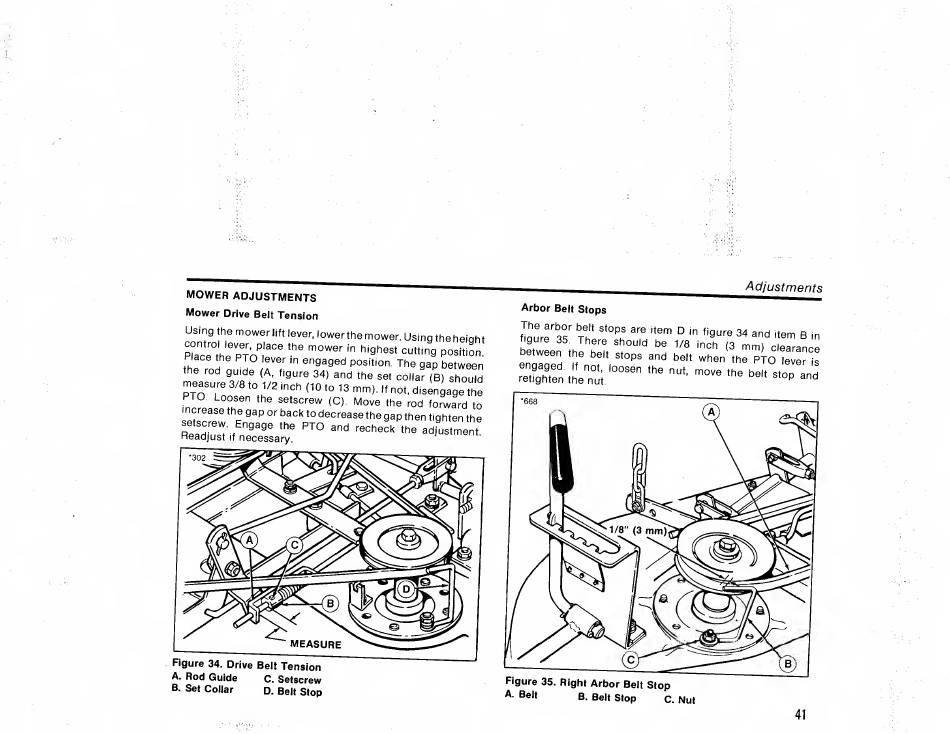

Figure 34. Drive Belt Tension
A. Rod Guide
c. Setscrew
B. Set Collar
d. Beit Stop
Adjustments
Arbor Belt Stops
41
