Summary of Contents for Blaze B100

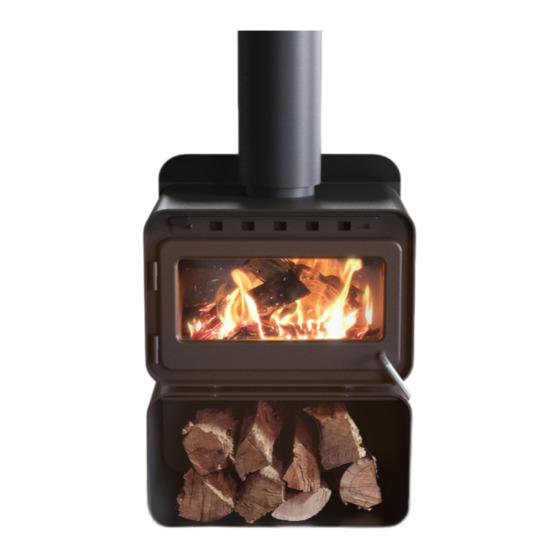

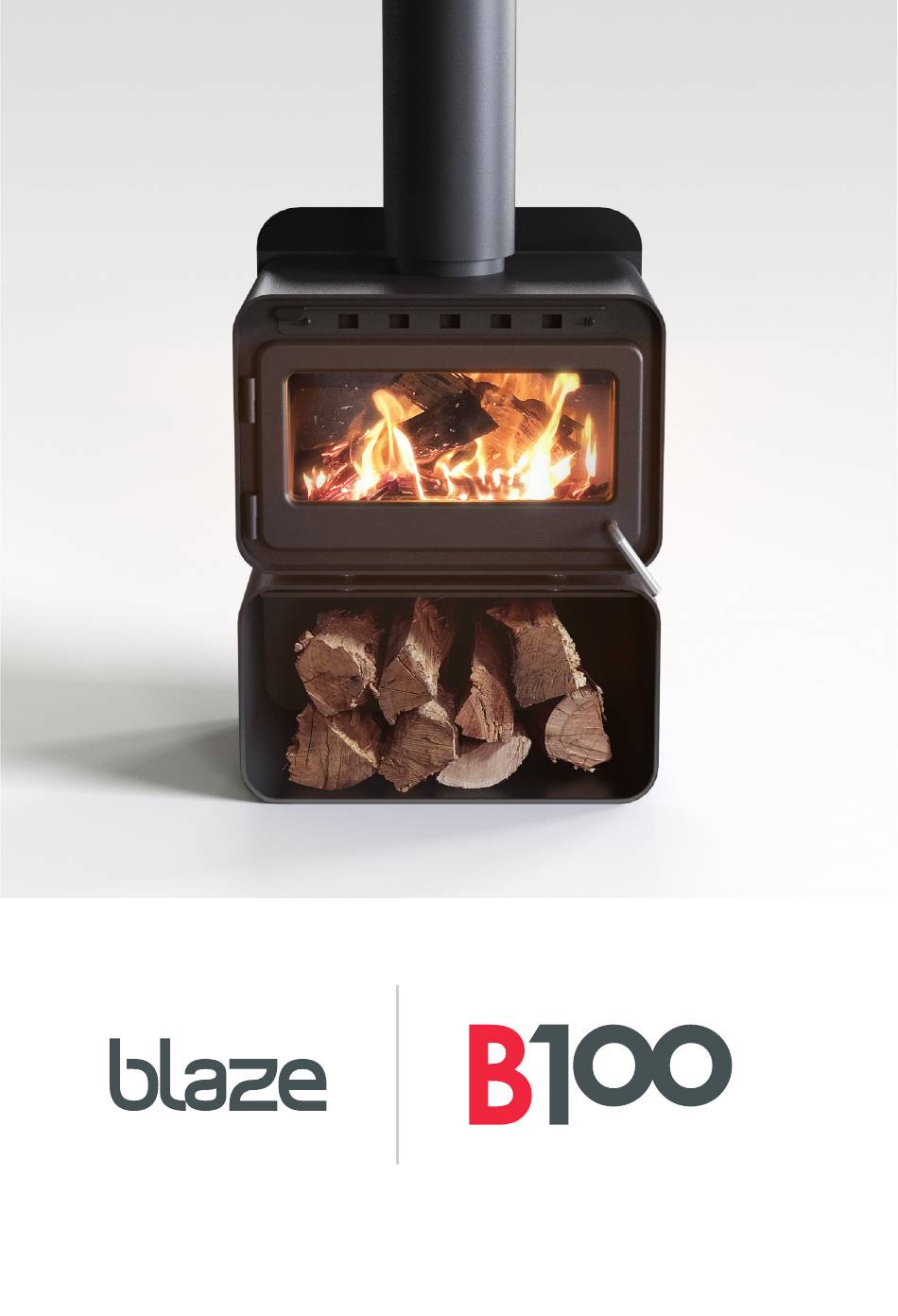

- Page 1 OPERATING INSTRUCTIONS Contemporary Styled Wood Heaters...
- Page 2 Glen Dimplex Australia proudly supports the activities of Landcare Australia through its membership of the AHHA. BLAZE B100 VERSION 1.0...
-
Page 3: Table Of Contents
TABLE OF CONTENTS USER INSTRUCTIONS MAINTENANCE AND SERVICING Introduction ......Replacement of Fire Bricks ....1.1. -
Page 4: User Instructions
User Instructions INTRODUCTION Before use of this appliance please read these instructions fully. WARNING: ANY MODIFICATION OF THE APPLIANCE THAT HAS NOT BEEN APPROVED IN WRITING BY THE TESTING AUTHORITY IS CONSIDERED AS BREACHING AS/NZS 4013. WARNING: DO NOT USE FLAMMABLE LIQUIDS OR AEROSOLS TO START OR REKINDLE THE FIRE. -
Page 5: Air Controls
USING APPLIANCE FOR THE FIRST 1.1. AIR CONTROLS TIME The Blaze B100 wood heater features a single air control system. It is designed to introduce The first few times the appliance is lit, it will give off oxygen into the base of the fire, controlling the some odorous fumes. This is caused by the paint rate of combustion of the wood as well as the curing. -
Page 6: Lighting The Fire
LIGHTING THE FIRE 5.2. LOW HEAT OUTPUT The heat output of the appliance can be Place firelighters or paper and dry kindling reduced by closing the air slide, which will restrict wood in the base of the firebox. the oxygen supplied to the fire and slow down the Light the paper or firelighters. rate at which the wood burns. Open the air control located on the top left This setting provides the best energy efficiency corner of the appliance by sliding to the as the wood burns for longer. -
Page 7: Burning Tips
BURNING TIPS ● High and gusty winds 6.1. FUEL QUALITY ● Outside temperature and weather conditions Use wood with a moisture content of less than 20%. Logs should not feel moist or damp, or have ● Blocked flue moss and fungal growths. For advice on the correction of persistent flue Symptoms related to wet wood: problems consult your supplier/installer. -
Page 8: Cleaning The Flue
10. CLEANING THE FLUE 11. TROUBLESHOOTING TIPS Check inside of flue prior to each season for any 11.1. GLASS IN DOOR BLACKENING build-up of creosote (wood tar). To do this: This can have several possible causes: First remove the baffle (refer to “2. ● Burning unseasoned wood — if the wood is Replacement of Baffle Plate” under too wet, it will cause the glass to blacken. Maintenance &... -
Page 9: Maintenance And Servicing
Maintenance and Servicing REPLACEMENT OF FIRE BRICKS To remove the baffle: Remove any excess ash and coals. The purpose of the firebricks in the appliance is to increase thermal mass and to guarantee Remove the brick retainer and bricks from the longevity of the steel firebox. Over time the the rear and sides of the firebox. firebricks may become cracked and crumble away. If so, they should be replaced. Lift the baffle up at the back enough to clear the rear support pegs and slide To replace the firebricks:... -
Page 10: Removing The Door
REMOVING THE DOOR FITTING NEW DOOR GLASS To remove the door: This task may be easier with the door removed from the heater and laid flat on a work-bench. Open the door all the way. To replace the door glass: Lift the door upwards until the door hinges Two stainless steel strips hold the glass in are freed from the body hinges. -
Page 11: Fitting A New Door Seal
FITTING A NEW DOOR SEAL DOOR HANDLE ADJUSTMENT This task may be easier with the door removed Over time, the door seal can become from the heater and laid flat on a workbench. compressed resulting in a less than adequate seal between the door and the front edge of the Remove any old seal from the door. -
Page 12: Warranty
Labour costs relating to the Wood or Stove This warranty is provided to the first domestic Fire purchaser of a Blaze Wood or Stove Fire (radiant Consumers may have additional rights under the or convection). It applies for 10 years from the Australian Trade Practices Act 1974 including... - Page 13 ● Travel costs for a distance greater than 50 km from the nearest approved Blaze Heating Service Agent. ● Defects, malfunctions or failures caused by incorrect installation, poor installation, normal wear and tear, misuse, neglect, accidental damage or failure to follow operating instructions in the Owner’s...
-
Page 14: Replacement Spare Parts List
REPLACEMENT SPARE PARTS LIST PART NO. PART DETAIL N200-063 Fire Brick Set 7 @ 170 x 170 x 25mm Upper Brick Retainers 4 X stainless brick retainer straight, 2 X corner (included in brick set) BBR1L Lower Brick Retainer (set) 1 X Left, 1 X Right N200-034 Baffle Plate... - Page 16 Glen Dimplex Australia Pty Ltd 8 Lakeview Drive, Scoresby Victoria 3179 Australia T: 1300 554 155 General & Sales Enquiries: flame.care@glendimplex.com.au Technical Service: flame.support@glendimplex.com.au www.glendimplex.com.au...
