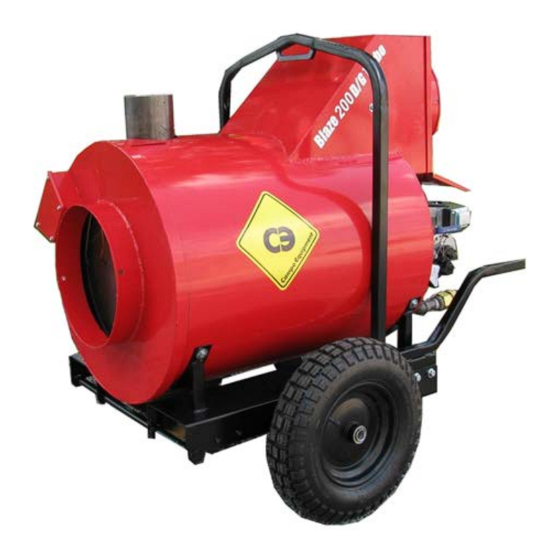

OIL/NG/LP FIRED SPACE HEATER: BLAZE 200 D/G TURBO
WWW.CAMPOEQUIPMENT.COM
REPORT # 0367MH007S
Installation Instructions-Manual-Maintenance-Parts List
CAUTION: DO NOT TAMPER WITH HEATER OR ITS CONTROLS. CALL A QUALIFIED SERVICE TECHNICIAN
Retain manual for future reference June 17, 2016
CERTIFIED FOR USE IN CANADA AND THE U.S.A.
CAMPO EQUIPMENT CO. LTD. (ECOBLAZE)
6 Carson Court, Brampton, ON, CANADA, L6T 4P8
Tel: (905) 793-2525 | Fax: (905) 793-8768 |
www.campoequipment.com
P a g e
| 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Blaze 200 D/G TURBO
Summary of Contents for Blaze 200 D/G TURBO
- Page 1 OIL/NG/LP FIRED SPACE HEATER: BLAZE 200 D/G TURBO WWW.CAMPOEQUIPMENT.COM REPORT # 0367MH007S Installation Instructions-Manual-Maintenance-Parts List CAUTION: DO NOT TAMPER WITH HEATER OR ITS CONTROLS. CALL A QUALIFIED SERVICE TECHNICIAN Retain manual for future reference June 17, 2016 CERTIFIED FOR USE IN CANADA AND THE U.S.A.
- Page 2 CAMPO EQUIPMENT CO. LTD. (ECOBLAZE) 6 Carson Court, Brampton, ON, CANADA, L6T 4P8 Tel: (905) 793-2525 | Fax: (905) 793-8768 | www.campoequipment.com P a g e...
- Page 3 THESE HEATERS ARE SUITABLE FOR OUTDOOR USE THE REQUIREMENTS OF LOCAL AUTHORITIES HAVING JURISDICTION SHALL BE FOLLOWED BLAZE 200 G TURBO NOTE: THIS HEATER IS INTENDED FOR USE PRIMARILY AS TEMPORARY HEATING OF BUILDINGS UNDER CONSTRUCTION, ALTERATION OR REPAIR THIS UNIT IS APPROVED FOR USE WITH PROPANE OR NATURAL GAS. NEVER ATTEMPT TO BURN GARBAGE OR PAPER IN THE HEATER AND REMOVE ALL PAPER AND RAGS FROM AROUND THE HEATER.
- Page 4 ABOUT THESE. READ INSTRUCTIONS PRIOR TO STARTING HEATERS BLAZE 200 D TURBO THIS UNIT IS APPROVED FOR USE WITH NO. 1 AND NO. 2 FUEL OIL. NEVER USE GASOLINE OR CRANKCASE OIL WHICH MAY CONTAIN GASOLINE AS FUEL FOR THE HEATER. NEVER ATTEMPT TO BURN GARBAGE OR PAPER IN THE HEATER AND REMOVE ALL PAPER AND RAGS FROM AROUND THE HEATER.
- Page 5 CODE AND IN THE UNITED STATES AS OUTLINED IN THE BOCA CODE, OR THE NFPA 70 NATIONAL ELECTRICAL CODE. WARNING: LACK OF COMBUSTION AIR CAN CAUSE A DIRTY FIRE, ODOURS IN ENCLOSED SPACES, AND BACKDRAFTING, POTENTIALLY RESULTING IN NAUSEA OR ASPHYXIATION OF THE OCCUPANTS. BLAZE 200 D/G BLAZE 200G- BLAZE 200D- SPECIFICATIONS BECKETT (NG/LP) BECKETT (OIL) Burner Make &...
- Page 6 Max 150ft ducting Max 150ft ducting Ductability overall overall (Return/Supply) Static Pressure 50ft/150ft 50ft/150ft upto 5” upto 5” Outlet Duct Size 1 X 12" 1 X 12" Inlet Duct Size 1 X 12" 1 X 12" Gas Conversion Easy switch over Blue handle Ball Valve on Gas manifold.
-
Page 7: Connecting The Cylinder
OF RUN FROM SOURCE. CONNECTING TO AN EXTERNAL FUEL TANK (BLAZE 200 D TURBO) Beckett AFG is fitted with 3/8” SAE male fittings and is set up for a 2 line system to eliminate priming. Ensure fuel tank has a supply line and a return line and connect the supply line to the 3/8”... - Page 8 Beckett Burner pump. For a 1 line system remove bypass plug located on inlet port of Beckett Pump and just connect fuel line to inlet side of fuel filter. FUEL (BLAZE 200 G TURBO) THIS HEATER WILL OPERATE ON PROPANE OR NATURAL GAS—NOT BOTH. THE MANIFOLD PRESSURES ARE LISTED ON THE APPROVAL LABEL.
- Page 9 NOTE: IF ANY OF THE ORIGINAL WIRE AS SUPPLIED WITH THE APPLIANCE MUST BE REPLACED, IT MUST BE REPLACED WITH TYPE TEW 14GA WIRE OR ITS EQUIVALENT. BLAZE ELECTRICAL SYSTEM 200 D/G Volts-Hertz-Phase 120-60-1 Full Load (Amps) Max fuse size in AMPS...
- Page 10 Blaze 200D Turbo Schematic (Beckett AFG Oil Burner) CAMPO EQUIPMENT CO. LTD. (ECOBLAZE) 6 Carson Court, Brampton, ON, CANADA, L6T 4P8 Tel: (905) 793-2525 | Fax: (905) 793-8768 | www.campoequipment.com P a g e | 10...
- Page 11 Blaze 200G Turbo Schematic (Beckett CG4 Burner) CAMPO EQUIPMENT CO. LTD. (ECOBLAZE) 6 Carson Court, Brampton, ON, CANADA, L6T 4P8 Tel: (905) 793-2525 | Fax: (905) 793-8768 | www.campoequipment.com P a g e | 11...
- Page 12 SEQUENCE OF OPERATION FOR BLAZE 200 D/G TURBO With “Selector Switch” in “ON” position and selector switch in “STAT ON” position and remote thermostat plugged into receptacle: 1: Remote Thermostat senses a drop in temperature and the ignition control module is energized.
- Page 13 WARNING BEFORE REMOVING ANY GUARDS OR SAFETIES TURN “SELECTOR SWITCH” TO “OFF” POSITION AND DISCONNECT THE MAIN POWER AS THE SUPPLY FAN WILL CYCLE AUTOMATICALLY. IF HEATER FAILS TO START 1.) FOR BECKETT BURNERS 7575 or 7590 PRESS AND HOLD THE RED BUTTON ON THE BECKETT CONTROLLER LOCATED ON THE CONTROL PANEL FOR 3 SECONDS TO RESET.
-
Page 14: Installation Instructions
INSTALLATION INSTRUCTIONS 1.) The recommendations of local authorities having jurisdiction must be followed. For recommended installation practices refer to C.S.A. standard B139. (CANADA) 2.) When firing the unit in an enclosed area allow 1 square inch per thousand BTU’s (refer to C.S.A. -
Page 15: Installation Clearances
INSTALLATION CLEARANCES MAXIMUM ALLOWABLE DUCT LENGTHS BLAZE 200 D/G TURBO RETURN DUCTS upto 50’ (MAX 150FT OVERALL) SUPPLY DUCTS upto 150’ (MAX 150FT OVERALL) THIS HEATER IS FOR USE WITH AND WITHOUT DUCTWORK WHEN USING DUCTWORK AVOID ANY KINKS OR SHARP BENDS. - Page 16 TEMPERATURE CONTROLLER AND THERMOCOUPLE The temperature controller protocols should be checked every heating season to ensure the burner will shutdown if temperature exceeds 290F at the outlet duct. This can be accomplished by restricting the air flow through the unit. After tests are complete, remove restrictors as both inlet and outlet ducts must be open for proper operation.
- Page 17 WARNING: TURN OFF THE FUEL SUPPLIES AND POWER BEFORE PERFORMING SERVICE WORK. THE 120V CIRCUIT IS A POTENTIAL ELECTROCUTION HAZARD. COMBUSTION AIR ADJUSTMENTS BLAZE 200G- BLAZE 200D- BLAZE 200 D/G BECKETT (NG/LP) BECKETT (OIL) SPECIFICATIONS Easy switch over Blue handle Ball Valve on Gas manifold.
- Page 18 Pump Pressure Head Setting Air Setting (Beckett- Shutter/Band) NOTE: The above settings are approximations based upon clean equipment in proper working order. Combustion air adjustments will vary with location, altitude and type of fuel used. BECKETT CG4 (THE BECKETT CG4 BURNER IS DESIGNED TO BE USED SOLELY WITH THE BECKETT 7590 GAS BURNER PRIMARY CONTROL AND THE 7474 GAS IGNITER).
- Page 19 COMBUSTION AIR ADJUSTMENTS For proper combustion air adjustment a calibrated gas analyzer and smoke tester should be used to ensure complete combustion. Air adjustment should be made at the correct input and be adjusted to achieve 5% Oxygen and 12% CO2. For optimum combustion efficiency the combustion air control should be set to provide no more than No.
-
Page 20: Thermostat Operation
8.) Shut off burner, let unit cool down. The unit is now adjusted for 175,000 input BTU’s. THERMOSTAT OPERATION The BLAZE 200 D/G TURBO can be operated with a thermostat control. An optional remote thermostat is available for temperature control for the space being heated. To connect the heatstat, simply plug the heatstat into an extension cord and the extension cord into the outlet marked “REMOTE... - Page 21 BECKETT AFG PARTS BREAKDOWN CAMPO EQUIPMENT CO. LTD. (ECOBLAZE) 6 Carson Court, Brampton, ON, CANADA, L6T 4P8 Tel: (905) 793-2525 | Fax: (905) 793-8768 | www.campoequipment.com P a g e | 21...
- Page 22 For replacement parts please contact Campo Equipment 1.866.323.0042 CAMPO EQUIPMENT CO. LTD. (ECOBLAZE) 6 Carson Court, Brampton, ON, CANADA, L6T 4P8 Tel: (905) 793-2525 | Fax: (905) 793-8768 | www.campoequipment.com P a g e | 22...
- Page 23 BECKETT CG4 BURNER REPLACEMENT PARTS BREAKDOWN CAMPO EQUIPMENT CO. LTD. (ECOBLAZE) 6 Carson Court, Brampton, ON, CANADA, L6T 4P8 Tel: (905) 793-2525 | Fax: (905) 793-8768 | www.campoequipment.com P a g e | 23...
- Page 24 CAMPO EQUIPMENT CO. LTD. (ECOBLAZE) 6 Carson Court, Brampton, ON, CANADA, L6T 4P8 Tel: (905) 793-2525 | Fax: (905) 793-8768 | www.campoequipment.com P a g e | 24...
