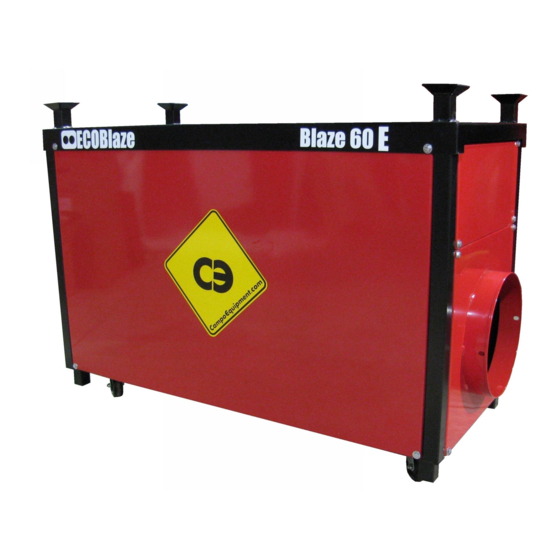

Blaze 40E Product Manual

Electric fan heater
Hide thumbs

Advertisement

Quick Links

Download this manual

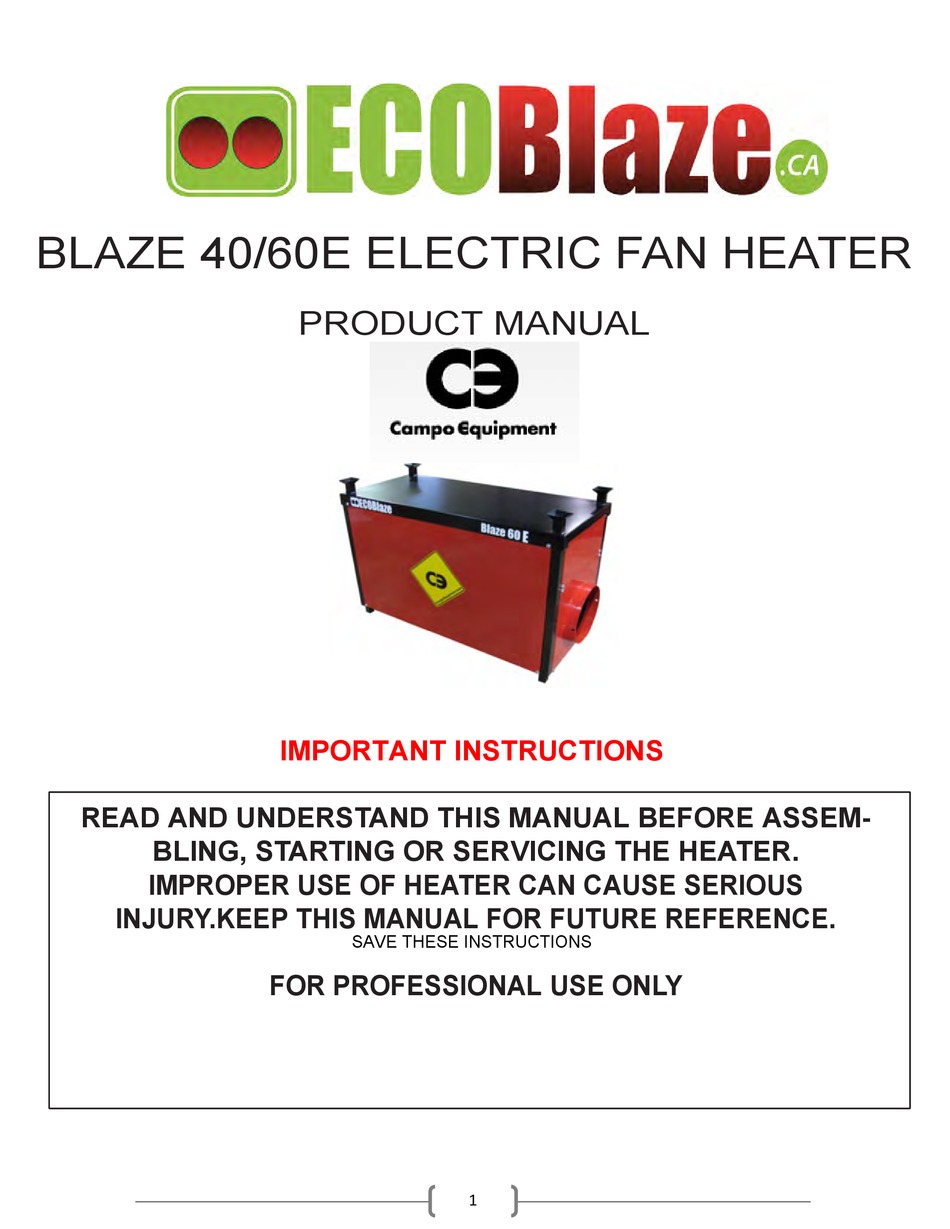

BLAZE 40/60E ELECTRIC FAN HEATER


PRODUCT MANUAL

IMPORTANT INSTRUCTIONS


READ AND UNDERSTAND THIS MANUAL BEFORE ASSEM-
BLING, STARTING OR SERVICING THE HEATER.
IMPROPER USE OF HEATER CAN CAUSE SERIOUS
INJURY.KEEP THIS MANUAL FOR FUTURE REFERENCE.
SAVE THESE INSTRUCTIONS







FOR PROFESSIONAL USE ONLY

1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 40E and is the answer not in the manual?

Questions and answers

Related Manuals for Blaze 40E

Summary of Contents for Blaze 40E

  • Page 1                                                                                                                                                                               BLAZE 40/60E ELECTRIC FAN HEATER     PRODUCT MANUAL   IMPORTANT INSTRUCTIONS     READ AND UNDERSTAND THIS MANUAL BEFORE ASSEM- BLING, STARTING OR SERVICING THE HEATER. IMPROPER USE OF HEATER CAN CAUSE SERIOUS INJURY.KEEP THIS MANUAL FOR FUTURE REFERENCE.
  • Page 2                                                                                                                                                                           BLAZE 40 and 60 E (240V/480V and 600V) OPERATING INSTRUCTIONS MANUAL Suitable for Indoor or Outdoor Installation / Unvented / Unattended Type GENERAL HAZARD WARNING:  FAILURE TO COMPLY WITH THE PRECAUTIONS AND INSTRUCTIONS PROVIDED WITH THIS HEATER, CAN...
  • Page 3                                                                                                                                                                            EXTREME CAUTION IS NECESSARY WHEN ANY HEATER IS USED BY OR NEAR CHILDREN OR INVALIDS AND WHEN- EVER THE HEATER IS LEFT OPERATING AND UNATTENDED.  DO NOT OPERATE ANY HEATER AFTER IT MALFUNCTIONS. DISCONNECT POWER AT SERVICE PANEL AND HAVE HEATER INSPECTED BY A REPUTABLE ELECTRICIAN BEFORE REUSING.
  • Page 4                                                                                                                                                                           Introduction You have just received a Blaze 40 or 60 E (240V/480V or 600V) 40kW or 60kW Electric Construction Heater manufactured by Campo Equipment Co. Ltd. Use: The Blaze 40 or 60 E Electric Construction Heater is designed for temporary heat only. The heater maybe installed indoors or outdoors and used to bring 100% outdoor air,or heat and re-circulate building air.

  • Page 5: Minimum Clearances

                                                                                                                                                                              Clearance to Combustibles This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, etc. and curtains at least 15 feet (4.6 m) from the front of the heater and keep them away from the sides and rear. The discharge temperature of these units may reach very high temperatures.

  • Page 6: Maintenance

                                                                                                                                                                              MAINTENANCE Before cleaning, make sure the power has been turned off at the circuit breaker panel and that the heating element of the heater is cool Every heater should be inspected before each use, and at least annually by a qualified service person The appliance must be kept clear and free from combustible materials, gasoline and other flammable vapors, and/or liquids...

  • Page 7: Start-Up Instructions

    START UP INSTRUCTIONS Determine power source-240V or 480V or 600V(confirm power source is correct for version of Blaze 40 or 60 E that you have purchased) Remove top cover and inspect all wiring (once complete, secure top cover to heater using the same hardware)

  • Page 8: Temperature Settings

                                                                                                                                                                              CAUTION; Failure to have proper air flow will cause heater to shut down, it is imperative to maintain proper air flow. TEMPERATURE SETTINGS HEAT SETTINGBTU/Hr. CFM 4,500 60kW 205,000 40kW 136,500 4,500 20kW 68,250 4,500 FAN ONLY 04,500 SHUTDOWN Move heat ON/OFF control setting to the "OFF"...
  • Page 9                                                                                                                                                                           HEATER TECHNICAL SPECIFICATIONS MODEL BLAZE 150 E Power Requirements Available in 240V/480V or 600V MAXIMUM INPUT(KW) 136,500 BTU (Blaze 40E), 205,000 BTU (Blaze 60E) 240V/480V 600V AMP DRAW 60KW 144/72AMPS 58 AMPS 40KW 96/48AMPS 39 AMPS 20KW 48/24AMPS 19.5 AMPS INLETSIZE 12”...
  • Page 10                                                                                                                                                                            ...
  • Page 11                                                                                                                                                                            ...
  • Page 12 ECO BLAZE 60E (240V/480V)  BLAZE 60E (240V/480V) PARTS BREAKOUT REV 1    ITEM#  PART #  DESCRIPTION  QUANTITY  1  C50115  FRAME  1  2  C50116  SIDE PANEL LEFT  1  3  C50117  SIDE PANEL RIGHT 4  C50118  DOOR PANEL  1  5  C50119  ACCESS PANEL  1  6  C50120  ELECTRICAL PANEL 7  C50121  PANEL  1  8  C50122  ELECTRICAL PANEL (CONTROLS)  1  9  C50123  DEFLECTOR RIGHT ...
  • Page 13 ECO BLAZE 60E (240V/480V)  15  C40029  FAN MOTOR E  1  16  C40030  INLET CONE FOR FAN MOTOR E  1  OPTIONAL PARTS    C40051  FAN MOTOR R  1    C40052  INLET CONE FOR FAN MOTOR R   1    C50159  12" SUPPLY PANEL   C50160  16" SUPPLY PANEL  1                               ...
  • Page 14 ECO BLAZE 60E (240V/480V)  BLAZE 60E (240V/480V) CONTROL PANEL BREAKOUT REV 1    ITEM#  PART #  DESCRIPTION  QUANTITY  1  C50127  FAN MOUNT  2  C50128  FAN POST  4  3  C50129  ROTARY SWITCH                                  1  4  C50130  TRANSFORMER                              1  5  C50131  BLACK CAM LOCK 6  C50132  RED CAM LOCK  1  7  C50133  BLUE CAM LOCK 8  C50134  GREEN CAM LOCK  1  9  C50135  FUSE HOLDER                                                 1 ...
  • Page 15 ECO BLAZE 60E (240V/480V)  15  C50257  CONTACTOR   1  16  C50140  CONTACTOR  2  17  C50164  CONTACTOR      1  18  C50256  CONTACTOR  2  19  C50038  FUSE HOLDER  1  20  C50141  FUSE HOLDER                           2  21  C50142  4A 600V T.D. FUSE  2  22  C50143  2A 250V T.D. FUSE     1  23  C50144  10A 250V T.D. FUSE                                                                        1  24  C90050  RELAY 1 ...
  • Page 16 ECO BLAZE 60E (240V/480V)  BLAZE 60E (240V/480V) DECAL KIT BREAKOUT REV 1    C50316  BLAZE 60E 240/480V DECAL KIT  C50317  SERIAL NUMBER (VARIABLE DATA)  C50302  CAMPO LOGO  C50303  CAUTION‐‐SHOCK RISK  C50304  CAUTION‐‐BURN/FIRE HAZ.  C50305  CAUTION CAM LOCKS  C50306  DANGER‐‐MOVING PARTS  C50307  DANGER‐‐HAZ. VOLTAGE  C50308  CAUTION‐‐AIR FLOW BLOCK  C50309  MUST BE GROUNDED  C50318  BLAZE 60E       C50311  BUTTONS       ...
  • Page 17 ECO BLAZE 60E (600V)  BLAZE 60E (600V) PARTS BREAKOUT REV 1    ITEM#  PART #  DESCRIPTION  QUANTITY  1  C50115  FRAME  1  2  C50116  SIDE PANEL LEFT  1  3  C50117  SIDE PANEL RIGHT 4  C50118  DOOR PANEL  1  5  C50119  ACCESS PANEL  1  6  C50120  ELECTRICAL PANEL 7  C50121  PANEL  1  8  C50122  ELECTRICAL PANEL (CONTROLS) 9  C50123  DEFLECTOR RIGHT  1 ...
  • Page 18 ECO BLAZE 60E (600V)  15  C40029  FAN MOTOR E  1  16  C40030  INLET CONE FOR FAN MOTOR E  1  OPTIONAL PARTS    C40051  FAN MOTOR R  1    C40052  INLET CONE FOR FAN MOTOR R   1    C50159  12" SUPPLY PANEL   C50160  16" SUPPLY PANEL  1                               ...
  • Page 19 ECO BLAZE 60E (600V)  BLAZE 60E (600V) CONTROL PANEL BREAKOUT REV 1    ITEM#  PART #  DESCRIPTION  QUANTITY  1  C50127  FAN MOUNT  1  2  C50128  FAN POST  4  3  C50235  TRANSFORMER  1  4  C50257  CONTACTOR    1  5  C50131  BLACK CAM LOCK 6  C50132  RED CAM LOCK  1  7  C50133  BLUE CAM LOCK 8  C50134  GREEN CAM LOCK  1  9  C50239      FUSE HOLDER                                            ...
  • Page 20 ECO BLAZE 60E (600V)  14  C50142  4A 600V T.D. FUSE  2  15  C50141  FUSE HOLDER                           2  16  C50143  2A 250V T.D. FUSE  1  17  C50144  10A 250V T.D. FUSE  1  18  C50259  CONTACTOR  1  19  C90050  RELAY 1  2  20  C70071  CONTACT BLOCK                                      2  21  C90055  CAPACITOR FOR FAN MOTOR E  1  22  C70051  GROUND LUG    1  23  C50155  AIR SWITCH  ...
  • Page 21 ECO BLAZE 60E (600V)  BLAZE 60E (600V) DECAL KIT BREAKOUT REV 1    C50319  BLAZE 60E 600V DECAL KIT  C50320  SERIAL NUMBER (VARIABLE DATA)  C50302  CAMPO LOGO  C50303  CAUTION‐‐SHOCK RISK  C50304  CAUTION‐‐BURN/FIRE HAZ.  C50305  CAUTION CAM LOCKS  C50306  DANGER‐‐MOVING PARTS  C50307  DANGER‐‐HAZ. VOLTAGE  C50308  CAUTION‐‐AIR FLOW BLOCK  C50309  MUST BE GROUNDED  C50318  BLAZE 60E       C50311  BUTTONS       ...
