- Page 1 User Manual...
- Page 2 Chauvet has no obligation to make, and does not commit to make, any such revisions.. The COLORado 1 Solo User Manual Rev. 6 supersedes all previous versions of this manual. Document Discard any older versions of this manual and replace with this version.
-
Page 3: Table Of Contents
Static Color ....................................14 Color Temperature Settings ............................... 14 Zoom Mode ....................................14 LED Frequency ..................................14 Software Information ..............................14 RDM ......................................14 Configuration (DMX) ..............................15 DMX Personalities ..................................15 DMX Control....................................15 COLORado 1 Solo User Manual Rev. 6... - Page 4 DMX Values (Cont.) ..............................22 DMX Values (Cont.) ..............................23 DMX Values (Cont.) ..............................24 5. Technical Information ..........................25 Product Maintenance ..............................25 6. Technical Specifications ......................... 26 Returns ..................................27 Contact Us ..............................28 -II- COLORado 1 Solo User Manual Rev. 6...
-
Page 5: Before You Begin
The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data transmission protocol. Any reference to data or power connections in this manual assumes the use of Seetronic IP rated cables COLORado 1 Solo User Manual Rev. 6... -
Page 6: Safety Notes
In addition, limiting the overall projection intensity may also help to extend the LEDs’ lifespan. COLORado 1 Solo User Manual Rev. 6... -
Page 7: Introduction

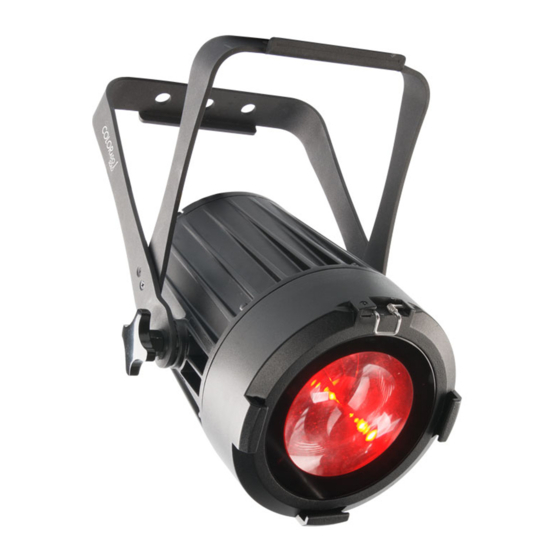

This powerful wash product projects an even, fully homogenized beam through fast and smooth zooming optics. The COLORado 1 Solo features new IP rated power and data connectors, full convection cooling, and a double-bracketed yoke that can serve as a floor mount or hanging support bracket. -
Page 8: Overview
Introduction Overview Double-Bracketed Yoke Safety Cable Loop Yoke Adjustment Knob Top View Side View Frame Holder Clip Control Panel Data Out Data In Power Out Power In Rear View Front View COLORado 1 Solo User Manual Rev. 6... -
Page 9: Dimensions
Introduction Dimensions 13.71 in 348 mm 9.69 in 246 mm 6.96 in 177 mm 5.20 in 132 mm 9.53 in 242 mm COLORado 1 Solo User Manual Rev. 6... -
Page 10: Setup
Each COLORado 1 Solo has an auto-ranging power supply that works with an input voltage AC Power range of 100 to 240 VAC, 50/60 Hz. To determine the power requirements for each COLORado 1 Solo, refer to the label affixed to the product. You can also refer to the Technical Specifications chart in this manual. -
Page 11: Dmx Linking
Setup You can link the COLORado 1 Solo to a DMX controller using a 5-pin DMX connection. If using DMX Linking other DMX-compatible products with the COLORado 1 Solo, you can control each individually with a single DMX controller. The COLORado 1 Solo uses a 5-pin DMX data connection for the HSIC, SSP, TOUR, TR16, and STD.Y DMX personalities. -
Page 12: Mounting
When hanging this product, always secure to a fastening device using a safety cable. For our CHAUVET Professional line of safety cables, go to http://trusst.com/products/. The COLORado 1 Solo comes with a double-bracketed yoke to which you can either attach Procedure mounting clamps for hanging or simply use as a floor stand. -
Page 13: Operation
Navigates downward through the menu list or decreases the numeric value when in a function Control Set the COLORado 1 Solo starting address in the 001–512 DMX range. This enables control of up to 30 products in the 17-channel TR16 personality. Options... -
Page 14: Menu Map
Changes the beam angle (zoom) PROGRAM SCENE 000– EDIT Selects the strobe frequency 01-10 01–30 STROBE (0–25 Hz) Defines the step duration TIME (slow to fast) Defines the fade duration FADE (slow to fast) -10- COLORado 1 Solo User Manual Rev. 6... -
Page 15: Menu Map (Cont.)
Modifies the color macros used in the TOUR, CALIB.C (Enter WHITE +/-200 01-13 TR16, HSIC, and STD.Y personality Passcode) Y FINE VERSION V0.1 Shows installed software version INFO 0x21A40067____ Displays Current UID # LABEL COLORado 1 SoLo Product Name COLORado 1 Solo User Manual Rev. 6 -11-... -
Page 16: Configuration (Standalone)
Master/Slave The Master/Slave mode allows a group of COLORado 1 Solos (the slaves) to simultaneously duplicate the output of another COLORado 1 Solo (the master) without a DMX controller. 1. Set each of the slaves: a. Go to the RUN MODE main level. -
Page 17: Dimmer Profiles
Operation This setting determines how fast the output of the COLORado 1 Solo changes when you modify Dimmer Profiles the values of the red, green, blue, white, and dimmer faders. This setting provides four different options to simulate the dimming curve of an incandescent lighting product. -
Page 18: Whites Setting
2. Enter the master access passcode as described in Passcode. 3. Select PWM. 4. Choose an output frequency. (600Hz, 1200Hz, 2000Hz, 2400Hz, 6000Hz, 18000Hz, or 25000Hz) This option shows what version of software the COLORado 1 Solo is running. Software 1. Go to the INFO main level. Information 2. -
Page 19: Configuration (Dmx)
Select SAVE to make the product use the last command used when the signal is lost. b. Select BLACK to turn off the all the LEDs when the signal is lost. COLORado 1 Solo User Manual Rev. 6 -15-... -
Page 20: Tour Notes
When dimmer is set to OFF, the changes in the RGBW and master dimmer faders are linear. · When dimmer is set to DIM1–DIM4, DIM1 is the fastest dimmer curve and DIM4 is the slowest. -16- COLORado 1 Solo User Manual Rev. 6... -
Page 21: Dmx Values
236ó240 White 9 241ó245 White 10 246ó250 White 11 251ó255 White 12 000ó009 No function 010ó099 0–25 Hz 100ó109 No function Strobe Effect 110ó179 Lightning Strobe 180ó189 No function 190ó255 Random Strobe COLORado 1 Solo User Manual Rev. 6 -17-... -
Page 22: Dmx Values (Cont.)
Preset dimmer speed from display menu 010ó029 Linear dimmer 030ó069 Nonlinear dimming curve 1 (fastest) Dimmer Speed 070ó129 Nonlinear dimming curve 2 130ó189 Nonlinear dimming curve 3 190ó255 Nonlinear dimming curve 4 (slowest) -18- COLORado 1 Solo User Manual Rev. 6... -
Page 23: Dmx Values (Cont.)
236ó240 White 9 241ó245 White 10 246ó250 White 11 251ó255 White 12 000ó009 No function 010ó099 0–25 Hz 100ó109 No function Strobe Effect 110ó179 Lightning Strobe 180ó189 No function 190ó255 Random Strobe COLORado 1 Solo User Manual Rev. 6 -19-... -
Page 24: Dmx Values (Cont.)
Preset dimmer speed from display menu 010ó029 Linear dimmer 030ó069 Nonlinear dimming curve 1 (fastest) Dimmer Speed 070ó129 Nonlinear dimming curve 2 130ó189 Nonlinear dimming curve 3 190ó255 Nonlinear dimming curve 4 (slowest) -20- COLORado 1 Solo User Manual Rev. 6... -
Page 25: Dmx Values (Cont.)
236ó240 White 9 241ó245 White 10 246ó250 White 11 251ó255 White 12 000ó009 No function 010ó099 0–25 Hz 100ó109 No function Strobe Effect 110ó179 Lightning Strobe 180ó189 No function 190ó255 Random Strobe COLORado 1 Solo User Manual Rev. 6 -21-... -
Page 26: Dmx Values (Cont.)
Preset dimmer speed from display menu 010ó029 Linear dimmer 030ó069 Nonlinear dimming curve 1 (fastest) Dimmer Speed 070ó129 Nonlinear dimming curve 2 130ó189 Nonlinear dimming curve 3 190ó255 Nonlinear dimming curve 4 (slowest) -22- COLORado 1 Solo User Manual Rev. 6... -
Page 27: Dmx Values (Cont.)
Preset dimmer speed from display menu 010ó029 Linear dimmer 030ó069 Nonlinear dimming curve 1 (fastest) Dimmer Speed 070ó129 Nonlinear dimming curve 2 130ó189 Nonlinear dimming curve 3 190ó255 Nonlinear dimming curve 4 (slowest) COLORado 1 Solo User Manual Rev. 6 -23-... -
Page 28: Dmx Values (Cont.)
Preset dimmer speed from display menu 010ó029 Linear dimmer 030ó069 Nonlinear dimming curve 1 (fastest) Dimmer Speed 070ó129 Nonlinear dimming curve 2 130ó189 Nonlinear dimming curve 3 190ó255 Nonlinear dimming curve 4 (slowest) -24- COLORado 1 Solo User Manual Rev. 6... -
Page 29: Technical Information
6. Wipe any dirt or grime to the outside edges of the lens surface. 7. Gently polish the lens surfaces until they are free of haze and lint. Always dry the external surfaces thoroughly and carefully after cleaning them. COLORado 1 Solo User Manual Rev. 6 -25-... -
Page 30: Technical Specifications
113 °F (45 °C) Convection I/O Connectors Connector Type Channel Range Seetronic IP65 5-pin XLR Sockets 9, 12 or 17 Ordering Product Name Item Code UPC Number COLORado 1 Solo 01031124 781462214722 -26- COLORado 1 Solo User Manual Rev. 6... -
Page 31: Returns
Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be the customer’s responsibility. FedEx packing or double-boxing is recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). COLORado 1 Solo User Manual Rev. 6 -27-... -
Page 32: Contact Us
+52 (728) 690-2010 Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record. Follow the instructions to request support or to return a product. Visit our website for contact details COLORado 1 Solo User Manual Rev. 6...
